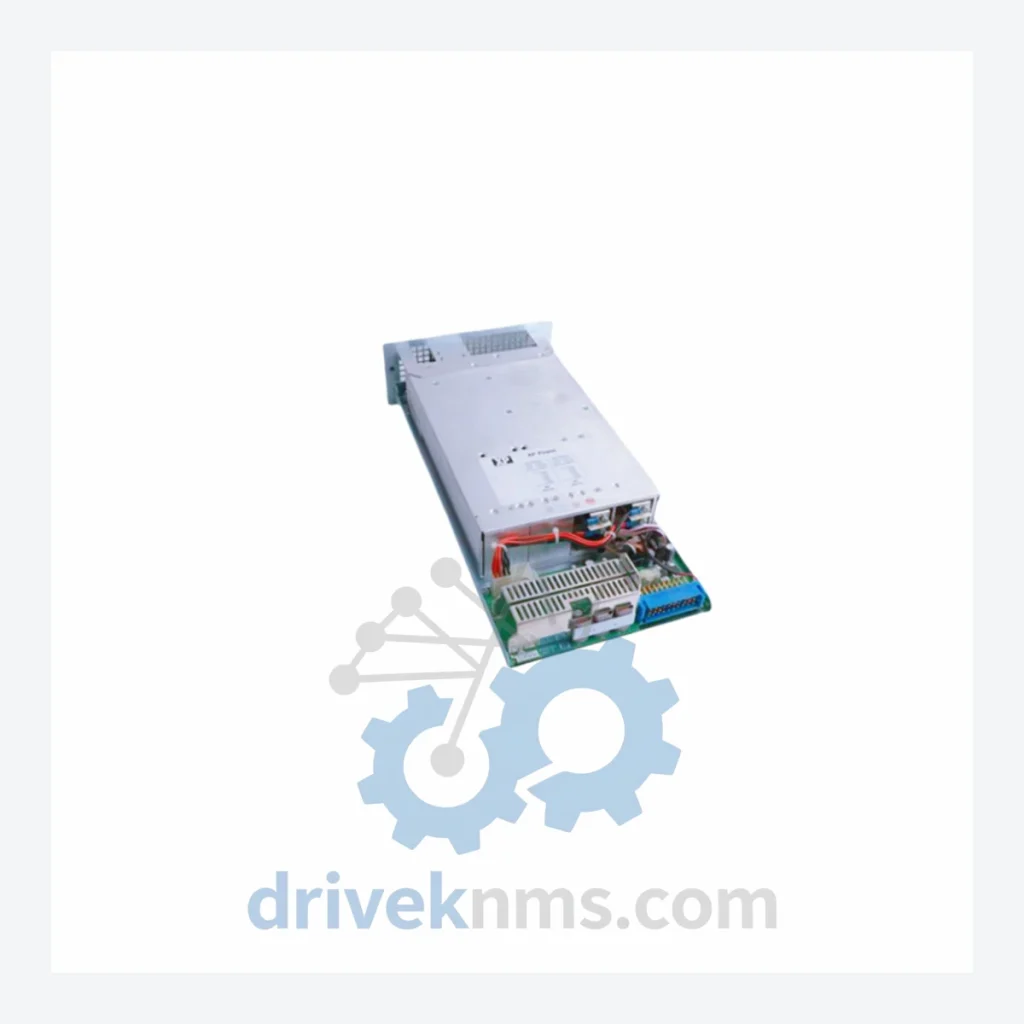

ACS HSSI Series Modules: HSSI-I016

Technical Dossier

Product Details And Specifications

ACS HSSI Series: Comprehensive Module Range and Technical Overview

The ACS HSSI (High-Speed Serial Interface) series represents a purpose-engineered family of motion control and communication interface modules deployed across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and continuous-process chemical plants. ACS (Advanced Control Systems) developed the HSSI architecture to address the demand for deterministic, high-throughput serial communication between distributed motion controllers and centralized DCS/PLC backplanes. Installed base spans legacy systems commissioned in the 1990s through mid-2010s, with active maintenance requirements persisting across thousands of operational sites worldwide. The HSSI-I016, as a 16-channel digital input module, occupies a critical role in field signal aggregation within these architectures.

The Evolution of HSSI Architecture

The HSSI series was introduced as ACS's response to the bandwidth limitations of parallel I/O backplane designs prevalent in early 1990s distributed control systems. The initial HSSI-100 generation established the high-speed serial bus topology, enabling module-to-controller communication at rates that reduced scan cycle latency compared to conventional rack-parallel architectures. The HSSI-200 generation introduced enhanced noise immunity through differential signaling, addressing field deployment issues in high-EMI environments such as variable-frequency drive enclosures and arc furnace control rooms. The HSSI-300 and subsequent variants incorporated firmware-level diagnostics, enabling online fault isolation without system shutdown — a critical requirement for continuous-process industries where unplanned downtime carries significant financial and safety consequences. Compatibility across generations is constrained: HSSI-100 and HSSI-200 modules share backplane pinout but differ in firmware handshake protocols, requiring controller firmware version verification before cross-generation substitution. HSSI-300 series modules introduced a revised bus arbitration scheme incompatible with HSSI-100 controllers without a firmware bridge update. Modern replacement pathways typically route through ACS's successor platform or third-party compatible modules where OEM support has been discontinued.

HSSI Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ACS HSSI series, categorized by functional classification:

Digital Input Modules (DI)

• HSSI-I008: 8-channel 24VDC digital input, HSSI bus interface, DIN rail mount
• HSSI-I016: 16-channel 24VDC digital input module, high-speed serial backplane, field terminal block
• HSSI-I032: 32-channel digital input, dual-port HSSI bus, high-density rack format
• HSSI-I016H: 16-channel DI with extended temperature range (-40°C to +70°C), hazardous area variant
• HSSI-I016S: 16-channel DI with SIL 2 functional safety certification, safety-rated input filtering

Digital Output Modules (DO)

• HSSI-O008: 8-channel 24VDC digital output, 0.5A per channel, short-circuit protected
• HSSI-O016: 16-channel digital output, relay-isolated, 2A per channel rated
• HSSI-O016T: 16-channel transistor output, 100ms watchdog timeout, fail-safe de-energize

Analog Input Modules (AI)

• HSSI-A008I: 8-channel 4–20mA analog input, 12-bit resolution, HART pass-through
• HSSI-A016I: 16-channel analog input, configurable 0–10V / 4–20mA per channel
• HSSI-A008V: 8-channel ±10V analog input, 16-bit resolution, differential measurement

Analog Output Modules (AO)

• HSSI-A004O: 4-channel 4–20mA analog output, 14-bit DAC, loop-powered option
• HSSI-A008O: 8-channel analog output, voltage/current selectable, isolated outputs

Communication & CPU Modules

• HSSI-CPU01: Primary controller module, HSSI bus master, Modbus RTU/TCP gateway integrated
• HSSI-CPU02: Redundant CPU module, hot-standby switchover <50ms, dual HSSI bus ports
• HSSI-COM01: PROFIBUS DP communication adapter, slave mode, up to 12Mbps
• HSSI-COM02: DeviceNet communication module, scanner/adapter configurable
• HSSI-ETH01: Ethernet/IP adapter module, 10/100 Mbps, EtherNet/IP Class 1 & 3

Power Supply Modules

• HSSI-PS24: 24VDC rack power supply, 10A output, redundancy-capable with load sharing
• HSSI-PS48: 48VDC power module, wide-input AC range 85–264VAC, DIN rail format

Sourcing Hard-to-Find & Obsolete HSSI Parts

ACS formally discontinued active production support for the HSSI-100 and HSSI-200 generations. OEM repair services and new-manufacture availability for these generations are no longer offered through standard distribution channels. DriveKNMS maintains a dedicated inventory program for HSSI series lifecycle extension, covering the following support categories: verified surplus stock of new-in-box and refurbished HSSI modules sourced through controlled supply chains; functional testing and recertification of pulled units prior to resale; cross-reference identification for modules where original part numbers have been superseded or consolidated; and technical consultation for end-users evaluating migration paths to compatible successor platforms. For HSSI-I016 specifically, DriveKNMS holds stock across multiple firmware revisions to ensure backplane compatibility with installed controller generations. Emergency same-day quotation is available for critical process applications.

Quality Control for the HSSI Range

HSSI series modules incorporate a multi-layer backplane bus architecture with proprietary serial arbitration logic. Standard refurbishment and testing procedures applied by DriveKNMS for this series include: full power-on self-test (POST) verification against OEM diagnostic codes; channel-by-channel functional verification for all I/O points using calibrated signal sources; backplane connector inspection and re-tensioning to OEM torque specifications; EEPROM firmware version identification and documentation; thermal cycling stress test (10 cycles, -10°C to +60°C) for modules destined for high-reliability applications; and isolation resistance testing between channel commons and chassis ground per IEC 61010-1 requirements. Modules exhibiting intermittent bus communication faults — a known failure mode in aged HSSI-200 generation units due to capacitor degradation on the serial transceiver circuit — undergo targeted component-level repair before functional retest.
