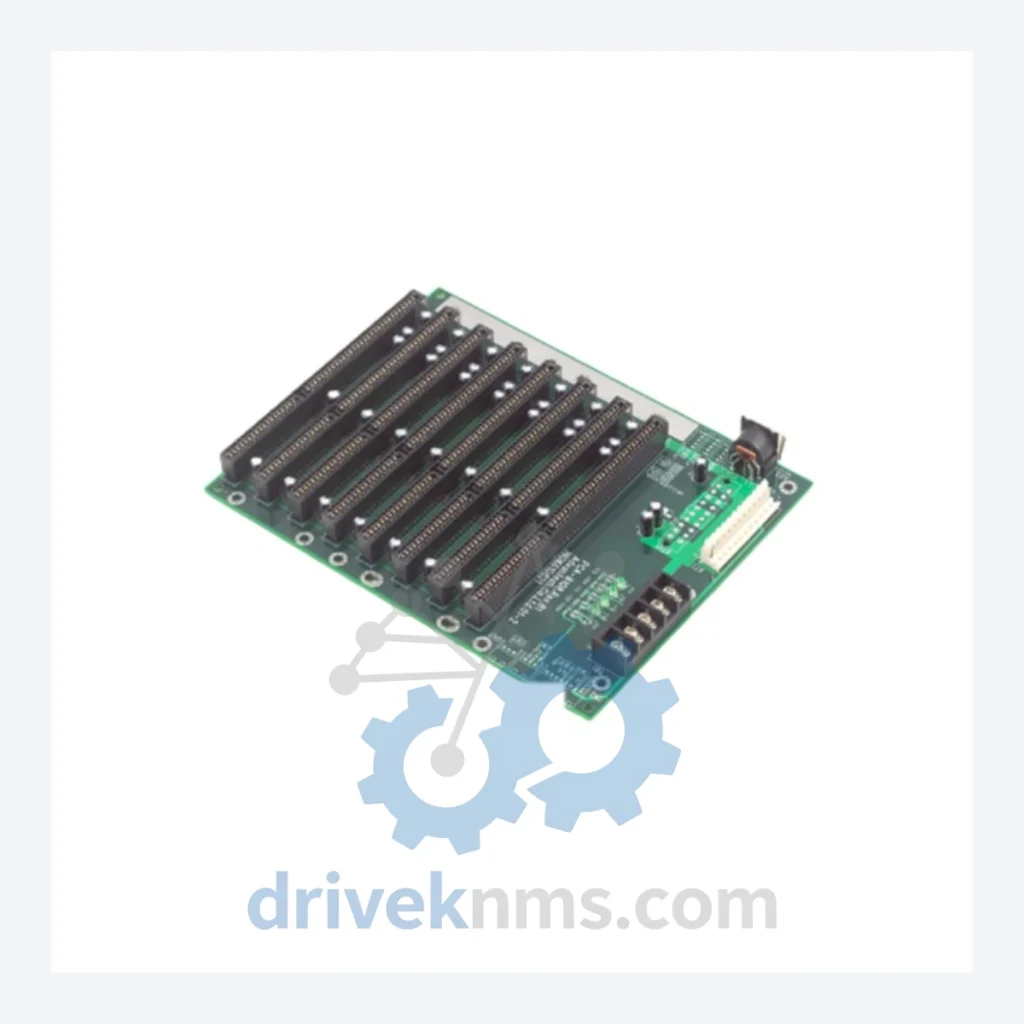

Advantech PCA-6108 8-Slot ISA Backplane

Technical Dossier

Product Details And Specifications

Advantech PCA-6108 Series: Comprehensive Module Range and Technical Overview

The Advantech PCA-6108 is an 8-slot ISA passive backplane designed for embedded industrial computing platforms. It has been deployed across a broad range of heavy industrial environments including petrochemical refineries, nuclear power plant control rooms, offshore drilling platforms, and continuous-process manufacturing facilities. The PCA-6108 supports full-length ISA cards and is compatible with Advantech's IPC-6806, IPC-6808, and IPC-6000 series chassis. Its passive architecture eliminates active components on the backplane itself, maximizing mean time between failures (MTBF) in thermally demanding environments. As a result, this backplane became a standard reference design in DCS (Distributed Control System) and SCADA retrofit projects throughout the 1990s and 2000s, and continues to be maintained in legacy installations globally.

The Evolution of PCA-6108 Architecture

The PCA-6108 belongs to Advantech's first-generation passive ISA backplane family, introduced in the early 1990s alongside the ISA bus standard's peak adoption in industrial computing. The original ISA (Industry Standard Architecture) 16-bit bus operated at 8 MHz and provided sufficient bandwidth for the sensor I/O, serial communication, and motion control cards prevalent in that era.

Advantech subsequently developed the PCA-6114 (14-slot ISA), PCA-6006 (6-slot ISA/PCI hybrid), and the PICMG 1.0-compliant PCA-6114P series to address the transition from ISA to PCI. By the mid-2000s, PICMG 1.3 (SHB Express) backplanes replaced ISA-only designs in new installations. However, the PCA-6108 remained in active production support through Advantech's lifecycle program due to the large installed base in process industries where system replacement costs are prohibitive.

Compatibility note: The PCA-6108 requires a passive backplane power supply (typically AT-form-factor) and is not directly compatible with ATX-only power configurations without an adapter. Engineers retrofitting PCA-6108-based systems must verify slot keying and card guide alignment against the host chassis revision.

PCA-6108 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Advantech PCA-6108 series and directly related ISA/PICMG backplane family. Each entry reflects a distinct hardware configuration confirmed within Advantech's product documentation.

PCA-6108: 8-slot ISA passive backplane, AT power connector, full-length card support
PCA-6108P2: 8-slot ISA backplane with dual AT power input, enhanced current capacity
PCA-6114: 14-slot ISA passive backplane, extended rack for high-density I/O builds
PCA-6114P: 14-slot PICMG 1.0 backplane, 4 ISA + 8 PCI slots, AT/ATX dual power
PCA-6006: 6-slot ISA/PCI hybrid backplane, compact chassis integration
PCA-6006VE: 6-slot ISA/PCI backplane with passive cooling optimization
PCA-6108-0A2E: PCA-6108 variant with extended temperature rating (-20°C to +70°C)
PCA-6108-0B2E: PCA-6108 with gold-plated ISA edge connectors for corrosive environments
PCA-6116: 16-slot ISA passive backplane for maximum slot density legacy systems
PCA-6006P2: 6-slot PICMG 1.0 backplane, 1 ISA + 4 PCI + 1 CPU slot
PCA-6114P2: 14-slot PICMG 1.0 backplane, dual AT power, industrial temperature
PCA-6010: 10-slot ISA passive backplane, mid-range density for IPC-6000 chassis
PCA-6010P: 10-slot PICMG 1.0 backplane, ISA/PCI mixed, AT power
PCA-6108-0C1E: PCA-6108 conformal-coated variant for high-humidity marine applications
PCA-6003: 3-slot ISA backplane for compact embedded controller enclosures
PCA-6106: 6-slot ISA passive backplane, predecessor to PCA-6006 series

Sourcing Hard-to-Find & Obsolete PCA-6108 Parts

The PCA-6108 was officially transitioned to Advantech's legacy support program as ISA bus adoption declined after 2010. New production units are no longer manufactured by Advantech. However, the installed base in process control, power generation, and defense electronics remains substantial, creating sustained demand for verified replacement units.

DriveKNMS maintains a dedicated inventory of tested PCA-6108 backplanes and compatible ISA-bus peripherals sourced through controlled decommissioning of industrial systems. All units are inspected for PCB trace integrity, ISA slot contact resistance, and power rail continuity before listing. For facilities operating under IEC 61511 (functional safety for process industries) or IEC 62443 (industrial cybersecurity), DriveKNMS can provide traceability documentation upon request.

For end-of-life system support contracts covering the PCA-6108 and associated Advantech IPC-6000 chassis, contact DriveKNMS to discuss multi-year spare parts reservation agreements.

Quality Control for the PCA-6108 Range

Each PCA-6108 unit processed by DriveKNMS undergoes a structured verification protocol specific to passive ISA backplane architecture:

ISA Bus Continuity Test: All 98 ISA edge connector pins are verified for continuity and isolation using a dedicated backplane test fixture. Open circuits and cross-shorts are flagged and units are rejected.
Power Rail Verification: +5V, +12V, -12V, and GND rails are load-tested at 80% of rated current capacity. Voltage drop across the backplane is measured and must remain within ±2% of nominal.
Slot-to-Slot Isolation: Inter-slot signal isolation is verified to confirm no bus contention artifacts from damaged traces or failed bypass capacitors.
Visual and Mechanical Inspection: PCB laminate, solder joints, and card guide rails are inspected under 10x magnification. Boards with delamination, cold solder joints, or cracked traces are rejected.
Functional Slot Test: A known-good ISA test card is cycled through each slot to confirm full electrical functionality under simulated operating conditions.
