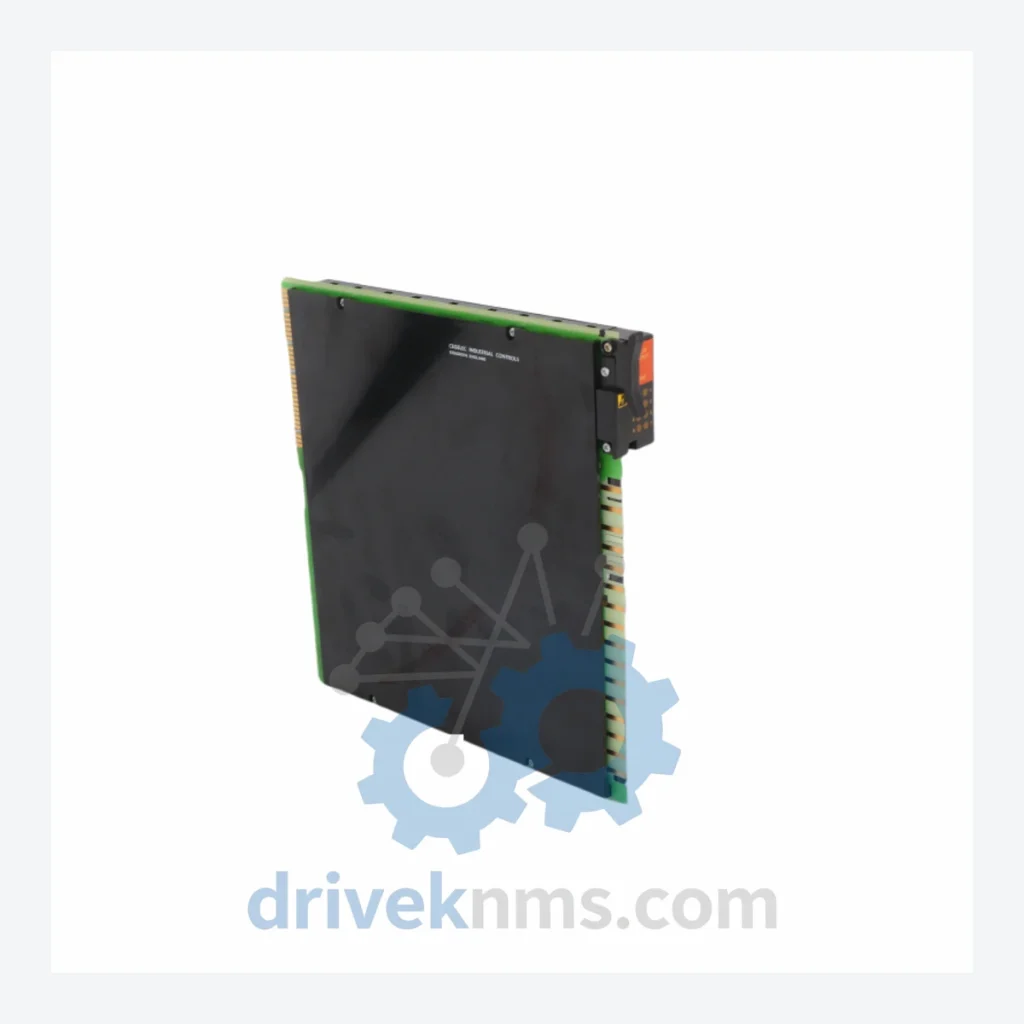

ALSTOM 8143 Series Modules

Technical Dossier

Product Details And Specifications

ALSTOM 8143 Series: Comprehensive Module Range and Technical Overview

The ALSTOM 8143 Series represents a core family of distributed control system (DCS) I/O and processing modules deployed extensively across global heavy industry sectors, including petrochemical refineries, nuclear power generation facilities, fossil fuel power plants, and large-scale chemical processing complexes. Originally developed under ALSTOM's industrial automation division, the 8143 platform established a long-term installed base across European and Asian utility infrastructure throughout the 1990s and 2000s. Its modular backplane architecture allowed plant engineers to configure mixed I/O racks without full system replacement, making it a preferred choice for facilities operating under strict uptime and capital expenditure constraints. Today, the 8143 Series is classified as a mature/end-of-life product line. OEM production has ceased, and replacement parts are exclusively sourced through specialist distributors and certified refurbishers. Long-term maintenance support for this series is a critical operational requirement for facilities that cannot justify a full DCS migration.

The Evolution of 8143 Architecture

The 8143 Series was introduced as part of ALSTOM's second-generation DCS platform, succeeding earlier relay-logic and discrete analog control panels. The architecture is built around a passive backplane bus that supports hot-swap module insertion in select configurations, with each module communicating via a proprietary parallel data bus. Early revisions (suffix -00xx) used through-hole PCB construction with discrete analog front-ends, while later revisions (-40xx and above) transitioned to surface-mount technology with improved EMI shielding and extended operating temperature ranges (-20°C to +70°C). The series interfaces with ALSTOM's supervisory SCADA layer via RS-485 and proprietary serial protocols, creating compatibility constraints when integrating with modern OPC-UA or Ethernet-based control networks. Facilities running mixed-generation 8143 racks must verify firmware revision compatibility between CPU modules and I/O slaves, as cross-revision communication errors are a documented failure mode. The 8143 platform does not support direct migration to ALSTOM's later ALSPA or Ovation-based architectures without hardware gateway adapters.

8143 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ALSTOM 8143 Series. Each module is classified by functional category.

Output Modules (DO/AO)

• 8143-4002: 16-channel digital output module, 24VDC, relay-isolated, DIN rail mount
• 8143-4004: 32-channel digital output module, 24VDC sourcing, high-density I/O rack
• 8143-4010: 8-channel analog output module, 4–20mA, 12-bit resolution
• 8143-4012: 8-channel analog output module, 0–10VDC, isolated outputs

Input Modules (DI/AI)

• 8143-3001: 16-channel digital input module, 24VDC, optically isolated
• 8143-3002: 32-channel digital input module, 24VDC, high-density configuration
• 8143-3010: 8-channel analog input module, 4–20mA, 13-bit resolution
• 8143-3012: 8-channel analog input module, thermocouple types J/K/T, cold junction compensated
• 8143-3014: 8-channel analog input module, RTD PT100/PT1000, 3-wire configuration
• 8143-3020: 16-channel analog input module, mixed signal, configurable per channel

CPU / Controller Modules

• 8143-1001: Main CPU module, 32-bit processor, 512KB program memory, redundancy-capable
• 8143-1002: Redundant CPU module, hot-standby configuration, automatic failover
• 8143-1010: Co-processor module, floating-point arithmetic, PID loop acceleration

Communication & Network Adapters

• 8143-2001: RS-485 communication adapter, Modbus RTU master/slave, 115.2kbps max
• 8143-2005: PROFIBUS-DP adapter module, DP-V1 compliant, up to 12Mbps
• 8143-2010: Ethernet gateway module, 10/100 Base-T, Modbus TCP bridging

Power Supply Modules

• 8143-5001: 24VDC rack power supply, 10A output, wide-range AC input 85–264VAC
• 8143-5002: Redundant power supply module, load-sharing, N+1 configuration

Sourcing Hard-to-Find & Obsolete 8143 Series Parts

The ALSTOM 8143 Series reached end-of-active-production status, and OEM factory new stock is no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory program for 8143 Series lifecycle extension, sourcing modules through decommissioned plant buybacks, certified refurbishment pipelines, and verified surplus channels. All units are inspected against original ALSTOM engineering specifications prior to dispatch. For facilities operating under IEC 61511 functional safety requirements or nuclear-grade maintenance protocols, DriveKNMS can provide full traceability documentation including component-level inspection records and test bench reports. Customers requiring long-term supply agreements (LTA) for multi-year maintenance contracts are accommodated with reserved stock allocation. Typical lead times for common SKUs such as 8143-4002, 8143-3001, and 8143-1001 are 3–10 business days from confirmed order.

Quality Control for the 8143 Range

The 8143 Series employs a passive backplane bus architecture with edge-connector I/O, making connector pin integrity and bus termination resistance critical quality parameters. DriveKNMS applies a structured test protocol to all 8143 modules prior to shipment. Digital I/O modules (8143-3001, 8143-3002, 8143-4002, 8143-4004) are subjected to full channel-by-channel functional verification under rated load conditions, with optocoupler isolation resistance measured at 500VDC. Analog modules (8143-3010, 8143-3012, 8143-4010) undergo calibration verification against NIST-traceable references, with linearity and offset error recorded per channel. CPU modules (8143-1001, 8143-1002) are bench-tested with known firmware images, memory integrity checks, and watchdog timer validation. Communication adapters are tested for protocol compliance using hardware protocol analyzers. All modules are burned-in at elevated temperature (50°C, 48 hours) to screen for early-life failures before dispatch. Test records are retained and available upon request.
