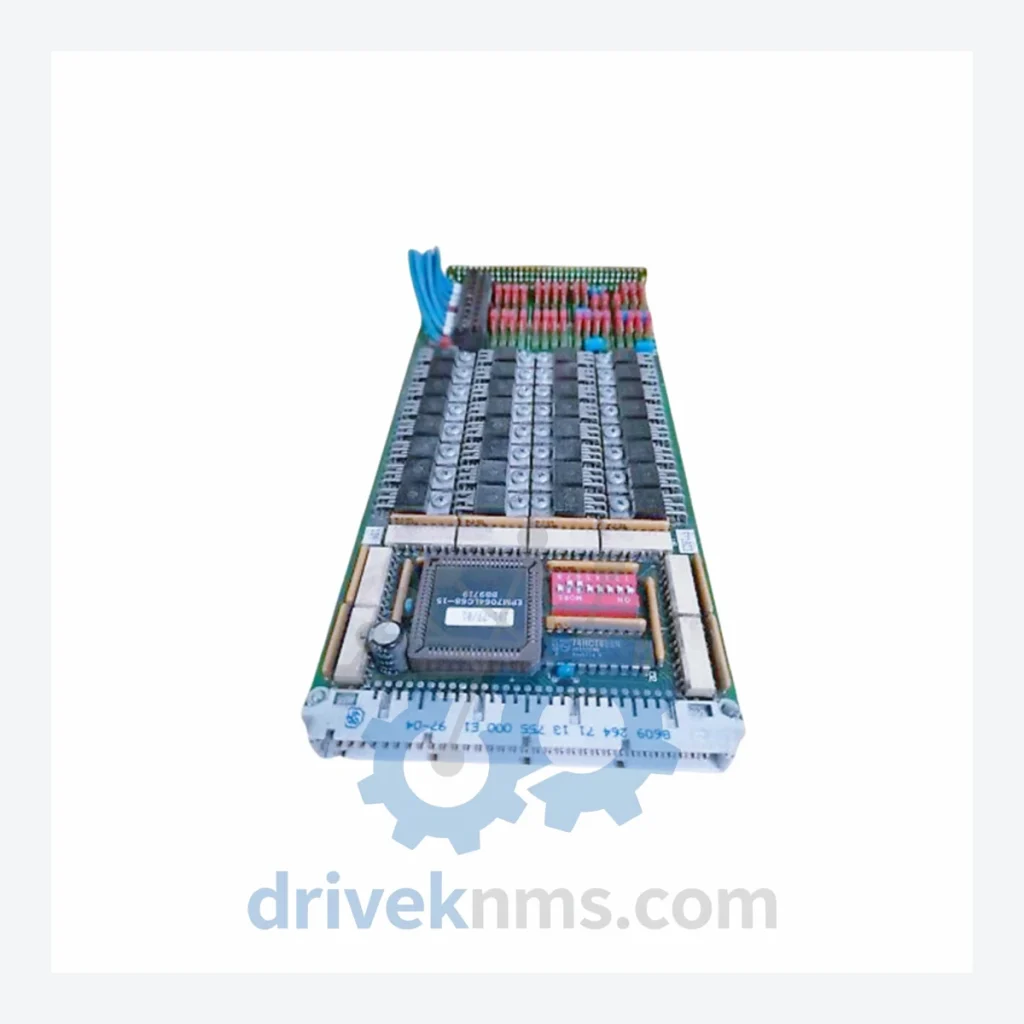

ASM FICO Modules | FICO 4552144 Controller Card

Technical Dossier

Product Details And Specifications

ASM FICO Series: Comprehensive Module Range and Technical Overview

The ASM FICO series represents a generation of modular controller and I/O hardware deployed extensively across global heavy industry — including petrochemical complexes, refinery distributed control systems (DCS), nuclear auxiliary control panels, and large-scale manufacturing automation cells. ASM (Automatisierungssysteme München), a German industrial automation manufacturer, engineered the FICO platform to operate within high-availability environments where mean time between failures (MTBF) and deterministic bus communication are non-negotiable requirements. FICO-series hardware is found in installed base across European and Asian process plants, many of which operate on 20–30 year maintenance cycles, making long-term spare parts availability a critical procurement concern.

The Evolution of FICO Architecture

The FICO platform was developed during the late 1980s and matured through the 1990s as a rack-based modular system using a proprietary parallel backplane bus. Early FICO generations used TTL-level logic for inter-module communication, with CPU modules operating at clock speeds typical of that era (8–16 MHz range). The mid-generation FICO revisions introduced enhanced diagnostic registers and improved watchdog timer circuits, enabling integration with SCADA supervisory layers via RS-232 and RS-485 serial interfaces.

Later FICO variants added support for PROFIBUS-DP fieldbus communication, allowing the platform to interface with modern field devices without full system replacement — a key factor in its continued deployment in brownfield facilities. The FICO 4552144 controller card sits within the mature phase of this architecture, functioning as a central processing and coordination module within the FICO rack assembly. Compatibility across FICO generations requires careful attention to backplane revision levels and firmware version matching; cross-generation substitution without engineering validation is not recommended.

As the FICO series has entered its end-of-life and obsolescence phase, original manufacturer support has been discontinued. Facilities relying on FICO infrastructure must source replacement modules through specialist industrial spare parts distributors capable of providing tested, verified hardware.

FICO Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ASM FICO series, organized by functional category. Each module is a discrete line-replaceable unit (LRU) within the FICO rack system.

Controller / CPU Modules

• FICO 4552144: Central controller card; rack master CPU coordination module
• FICO 4552100: Base CPU module; primary program execution and scan cycle control
• FICO 4552101: Enhanced CPU with extended memory addressing for large I/O maps
• FICO 4552110: Redundant CPU module; hot-standby failover controller card
• FICO 4552120: CPU module with integrated PROFIBUS-DP master interface

Digital Input (DI) Modules

• FICO 4553200: 16-channel 24 VDC digital input module; isolated inputs
• FICO 4553201: 32-channel 24 VDC digital input module; high-density rack card
• FICO 4553210: 16-channel 120 VAC digital input module; field-level signal acquisition
• FICO 4553220: 16-channel digital input with diagnostics; short-circuit detection per channel

Digital Output (DO) Modules

• FICO 4554300: 16-channel 24 VDC digital output module; transistor sourcing outputs
• FICO 4554310: 8-channel relay output module; 230 VAC / 2A per channel
• FICO 4554320: 16-channel digital output with fuse monitoring; per-channel fault detection

Analog Input (AI) Modules

• FICO 4555400: 8-channel analog input; 4–20 mA / 0–10 V configurable per channel
• FICO 4555410: 8-channel analog input with HART pass-through; field device diagnostics
• FICO 4555420: 4-channel thermocouple input module; Type J/K/T/E/R/S/B supported

Communication / Adapter Modules

• FICO 4556500: PROFIBUS-DP slave adapter; connects FICO rack to DP master network
• FICO 4556510: RS-485 serial communication module; Modbus RTU protocol support

Power Supply Modules

• FICO 4557600: 24 VDC rack power supply module; 10A output, wide-range AC input
• FICO 4557610: Redundant power supply module; load-sharing dual-feed configuration

Sourcing Hard-to-Find & Obsolete FICO Parts

The ASM FICO series is classified as end-of-life (EOL) by the original manufacturer. New production of FICO modules has ceased, and OEM technical support contracts are no longer available. For facilities operating FICO-based control systems — particularly in process industries with long plant lifecycles — the procurement of replacement modules depends entirely on the secondary market and specialist distributors.

DriveKNMS maintains a dedicated inventory program for obsolete industrial automation hardware, including ASM FICO series modules. Our sourcing network covers decommissioned plant equipment, manufacturer overstock, and tested pull inventory from controlled environments. All FICO modules sourced through DriveKNMS are subject to incoming inspection and functional verification before dispatch.

For lifecycle extension planning, DriveKNMS can assist procurement and maintenance engineering teams with: bill-of-materials (BOM) audits for FICO-equipped systems, identification of cross-compatible substitute modules where applicable, and long-term consignment stock agreements to ensure continuity of supply for critical spare parts.

Quality Control for the FICO Range

ASM FICO modules present specific technical challenges during inspection and testing due to their proprietary backplane bus architecture and age-related component degradation patterns. DriveKNMS applies a structured test protocol to all FICO hardware:

• Visual and mechanical inspection: PCB condition assessment, connector pin integrity check, capacitor ESR screening for electrolytic aging
• Backplane bus communication test: Modules are seated in a reference FICO rack and bus arbitration signals are verified using a logic analyzer against known-good reference waveforms
• Functional I/O verification: For I/O modules, each channel is exercised through its full input/output range using calibrated signal sources and measurement equipment
• CPU module firmware validation: Controller cards are booted and firmware version registers are read and documented; modules with corrupted firmware are flagged and not dispatched
• Burn-in cycle: Modules are powered for a minimum 48-hour burn-in period under thermal load to screen for early-life failure modes common in aged electronics
• Final documentation: Each module ships with a test report recording serial number, firmware version (where applicable), test date, and technician ID
