ATOTECH MG330 Modules: MG330TD40-B

Technical Dossier

Product Details And Specifications

ATOTECH MG330 Series: Comprehensive Module Range and Technical Overview

The ATOTECH MG330 series represents a generation of industrial control and I/O modules deployed extensively in process-critical environments including chemical processing plants, electroplating production lines, surface treatment facilities, and continuous manufacturing operations. Engineered to meet the deterministic control demands of heavy industry, MG330-series hardware has accumulated significant installed base across European and Asian manufacturing sectors. Its modular backplane architecture allows system integrators to configure mixed I/O and control topologies without proprietary bus adapters, making it a preferred platform for long-lifecycle automation projects where hardware stability outweighs feature velocity.

The Evolution of MG330 Architecture

The MG330 platform was introduced as a successor to earlier ATOTECH relay-logic and discrete control panels, transitioning the product line into programmable, rack-mounted modular control. Early revisions of the MG330 family used parallel backplane communication with fixed-address I/O mapping, which imposed slot-position dependencies during system configuration. Subsequent hardware revisions introduced serial backplane variants with auto-addressing capability, reducing commissioning time and enabling hot-swap replacement of select module types without full system shutdown.

Compatibility across MG330 sub-generations is constrained by backplane revision. Modules designated with the TD suffix (e.g., MG330TD40-B) are associated with the transistor-output, digital control sub-family and are not interchangeable with relay-output (RD) or analog (AD) variants without corresponding firmware and wiring changes. As the MG330 series has entered its mature/end-of-life phase, ATOTECH no longer manufactures new units; all procurement is sourced from certified aftermarket inventory, tested refurbished stock, or new-old-stock (NOS) channels.

MG330 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ATOTECH MG330 control platform, classified by functional category:

Digital Output Modules (Transistor)

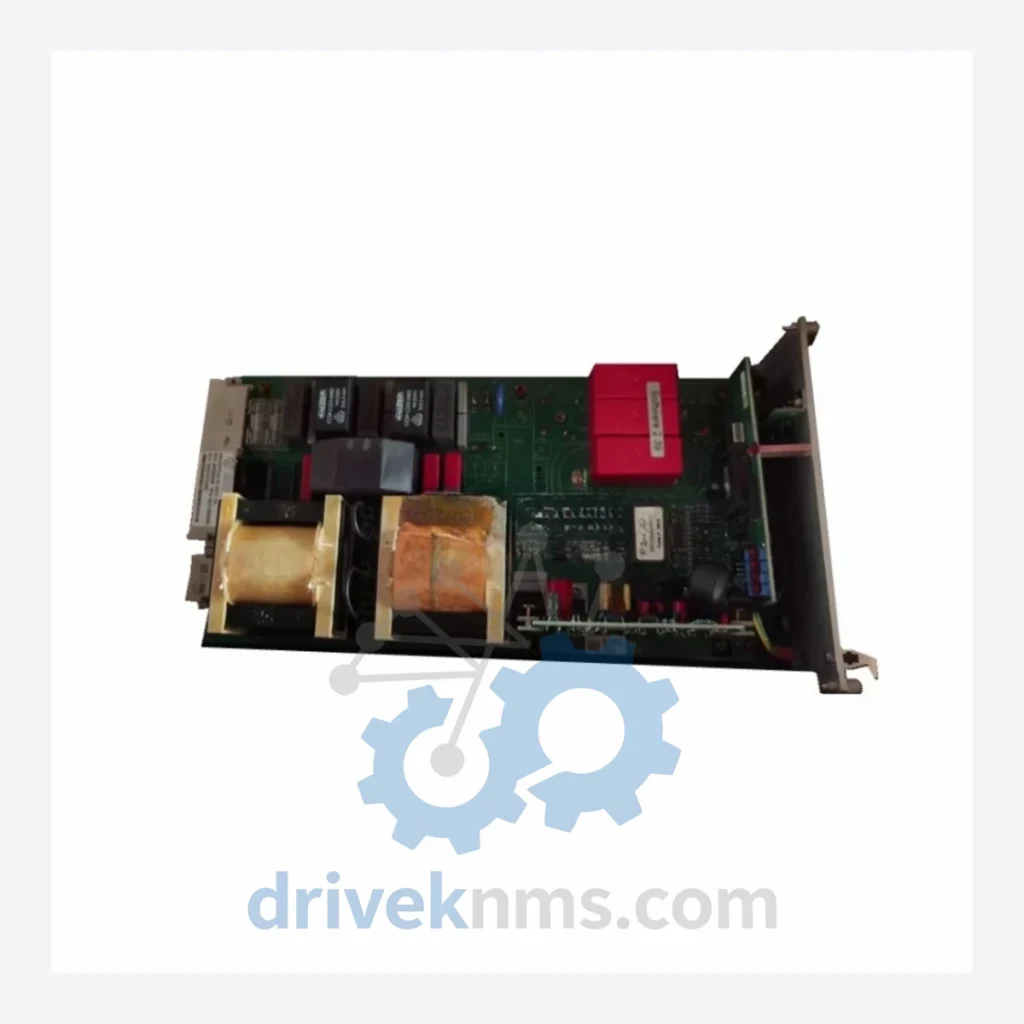

• MG330TD40-B: 40-channel transistor digital output control card, 24 VDC, DIN-rail compatible backplane mount.
• MG330TD32-A: 32-channel transistor digital output module, standard rack format, 24 VDC sourcing.
• MG330TD16-C: 16-channel transistor output card, compact form factor, short-circuit protection per channel.
• MG330TD08-B: 8-channel transistor output module, high-current variant, 0.5 A per channel rating.

Digital Input Modules

• MG330DI40-A: 40-channel digital input module, 24 VDC sink/source configurable, optical isolation.
• MG330DI32-B: 32-channel digital input card, high-speed capture mode, 1 ms filter selectable.
• MG330DI16-A: 16-channel digital input module, standard backplane interface, LED status per channel.
• MG330DI08-C: 8-channel digital input card, extended temperature range variant (-20 °C to +60 °C).

Analog I/O Modules

• MG330AI08-B: 8-channel analog input module, 4–20 mA / 0–10 V selectable, 12-bit resolution.
• MG330AI04-A: 4-channel analog input card, differential input configuration, 14-bit resolution.
• MG330AO08-A: 8-channel analog output module, 4–20 mA current loop, 12-bit DAC.
• MG330AO04-B: 4-channel analog output card, voltage/current dual-mode output, isolated per channel.

CPU / Controller Modules

• MG330CPU-01: Main CPU module, ladder logic execution, 256 KB program memory, RS-232/RS-485 ports.
• MG330CPU-02: Enhanced CPU module, extended memory (512 KB), Ethernet option slot, real-time clock.

Communication & Power Modules

• MG330COM-RS: RS-485 multi-drop communication adapter, Modbus RTU master/slave, 32-node support.
• MG330PSU-24: 24 VDC rack power supply module, 5 A output, over-voltage and short-circuit protection.
• MG330PSU-48: 48 VDC power supply variant for high-drive output configurations.

Sourcing Hard-to-Find & Obsolete MG330 Parts

The MG330 series has been formally discontinued by ATOTECH, with no new production runs scheduled. End-users operating legacy installations face a defined set of procurement challenges: OEM support contracts have lapsed, authorized distributor stock is depleted, and direct factory repair services are unavailable. DriveKNMS maintains a dedicated inventory program for MG330 lifecycle extension, sourcing units through verified industrial surplus channels, estate liquidations, and controlled decommissioning projects.

For obsolete MG330 models, DriveKNMS provides: (1) certified pre-owned units with full functional test documentation; (2) new-old-stock modules where available, supplied with original packaging and date codes; (3) cross-reference advisory for identifying compatible replacement modules from active product lines where direct substitution is technically feasible. Customers operating chemical processing or surface treatment lines with MG330-based control systems are advised to establish a buffer stock strategy. DriveKNMS can assist with multi-year supply agreements to mitigate single-point procurement risk.

Quality Control for the MG330 Range

MG330 modules present specific test challenges due to their backplane-dependent communication architecture and mixed-signal I/O designs. DriveKNMS applies a structured verification protocol to all MG330 units prior to dispatch:

• Backplane Interface Test: Each module is seated in a reference MG330 rack and subjected to full backplane communication cycling to verify address recognition and data integrity.
• Channel-Level Functional Test: All I/O channels are individually exercised. Digital output modules (including MG330TD40-B) are tested under resistive load at rated current. Analog modules are verified against calibrated reference signals at 0%, 50%, and 100% of input/output range.
• Isolation Resistance Check: Optical isolation barriers on digital input modules are tested at 500 VDC to confirm dielectric integrity.
• Thermal Burn-In: Select modules undergo 48-hour powered burn-in at 40 °C ambient to screen early-life failures common in aged electrolytic capacitors.
• Visual and Component Inspection: PCB surfaces are inspected under magnification for corrosion, cold solder joints, and capacitor bulge — failure modes prevalent in modules recovered from humid industrial environments.

All test results are documented and supplied with each unit shipment on request.
