Cummins PowerCommand PCC1.2 Series: Comprehensive Module Range and Technical Overview

The Cummins PowerCommand PCC1.2 series represents one of the most widely deployed generator set control platforms in global heavy industry. Installed across diesel and gas generator sets ranging from 15 kW to 350 kW, PCC1.2 controllers are found in critical power infrastructure at petrochemical plants, offshore platforms, data centers, hospitals, and municipal water treatment facilities. The platform's longevity — spanning over two decades of active deployment — means that procurement managers and maintenance engineers continue to source PCC1.2 modules long after the series entered its end-of-active-production phase. Securing genuine, tested replacement modules is a direct factor in generator uptime, regulatory compliance, and total cost of ownership.

The Evolution of PCC1.2 Architecture

The PowerCommand PCC1.x control architecture was introduced by Cummins in the mid-1990s as a microprocessor-based replacement for analog relay-logic control panels. The PCC1.1 established the baseline: a single-board controller handling engine speed governing, voltage regulation, fault detection, and basic annunciation. The PCC1.2 refined this architecture with improved HMI integration, expanded fault code libraries, and enhanced compatibility with Cummins' MODBUS-based remote monitoring systems.

Key architectural characteristics of the PCC1.2 platform include a 16-bit embedded processor, CAN-bus communication backbone, discrete I/O expansion capability, and a dedicated HMI220 operator panel interface — the module referenced in SKU PCC1.2 HMI220 300-6609-0. The HMI220 panel provides the primary operator touchpoint: LED fault annunciation, digital metering display, and manual/auto/off mode selection.

Compatibility note: PCC1.2 control boards are not directly interchangeable with PCC2.0 or PCC3.3 series without firmware and wiring harness modifications. Procurement teams sourcing replacements must verify the exact assembly part number (300-XXXX-X suffix) to avoid cross-series mismatches — a common and costly field error.

PCC1.2 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module inventory within the Cummins PowerCommand PCC1.2 ecosystem. Each entry reflects a distinct functional role within the control architecture:

Control & CPU Modules

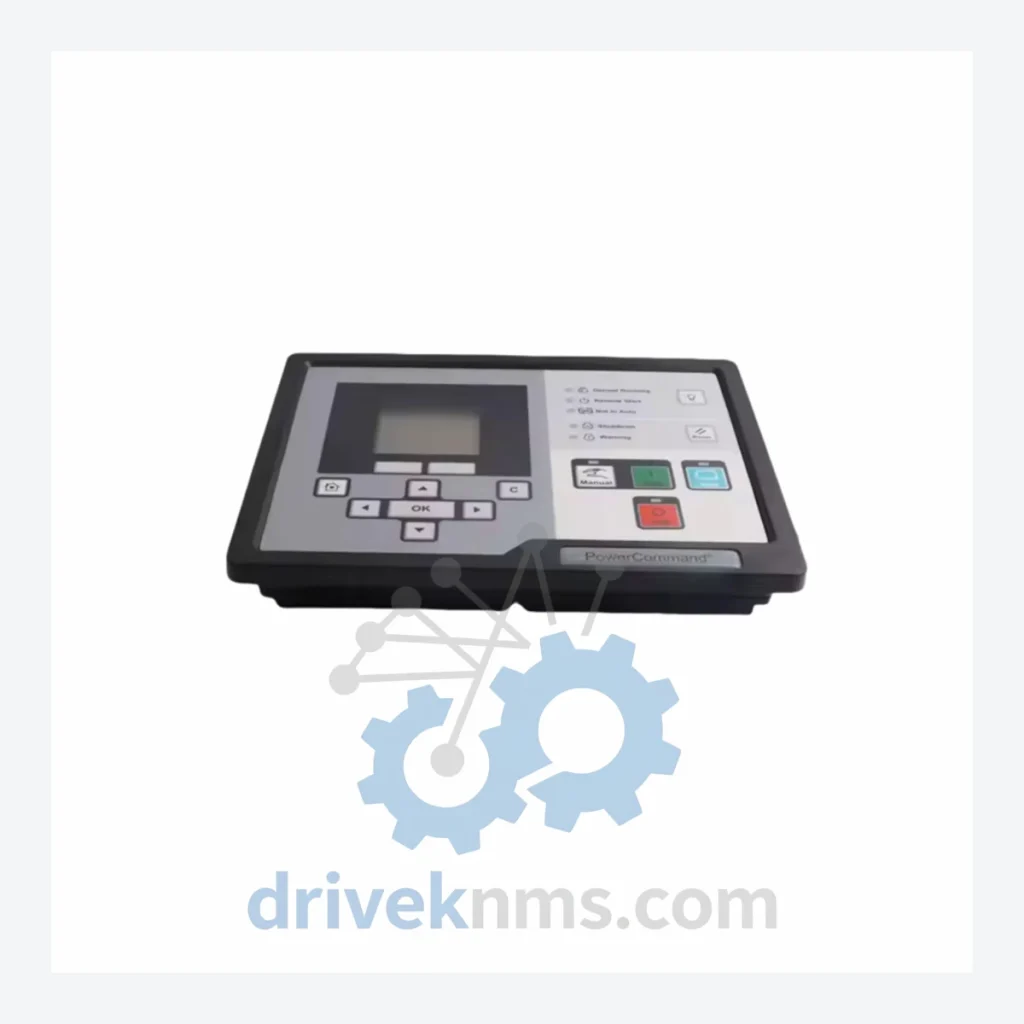

• 300-6609-0: HMI220 operator display panel — primary man-machine interface for PCC1.2 genset controllers, LED metering and fault annunciation.
• 300-4379-0: PCC1.2 main control board — core engine/alternator management, speed governing, voltage regulation.
• 300-4379-01: PCC1.2 main control board, revision 01 — updated firmware baseline, improved CAN-bus stability.
• 300-4379-02: PCC1.2 main control board, revision 02 — enhanced fault logging capacity.
• 300-4380-0: PCC1.2 base board assembly — backplane and power distribution for control stack.
• 300-4380-01: PCC1.2 base board, revision 01 — revised power rail filtering for noisy grid environments.

HMI & Display Modules

• 300-6609-0 (HMI220): Standard operator panel — 4-line digital display, LED indicators, mode selector switch.
• 300-6609-01: HMI220 panel, revision 01 — improved display contrast, updated button assembly.
• 300-6610-0 (HMI320): Enhanced operator panel — graphical display, expanded fault history, compatible with PCC1.2 and PCC2.0.
• 300-6611-0 (HMI220 Remote): Remote-mount HMI220 panel — for installations requiring panel separation from genset.

I/O & Expansion Modules

• 300-4381-0: Discrete I/O expansion module — adds 8 DI / 4 DO for auxiliary equipment control.
• 300-4382-0: Analog input module — 4-channel 4–20 mA input for remote sensor integration.
• 300-4383-0: Relay output module — 6 x SPDT relay outputs for external load control and alarm routing.

Communication & Network Modules

• 300-4384-0: MODBUS RTU communication adapter — RS-485 interface for SCADA and BMS integration.
• 300-4385-0: Ethernet gateway module — TCP/IP bridge for PowerCommand Network (PCNet) connectivity.
• 300-4386-0: Paralleling module — load sharing and synchronization for multi-genset installations.

Power Supply Modules

• 300-4387-0: 24 VDC control power supply — dedicated regulated supply for PCC1.2 control board stack.
• 300-4388-0: Battery charger module — integrated float/equalize charger for starting battery maintenance.

Sourcing Hard-to-Find & Obsolete PCC1.2 Parts

The PCC1.2 series entered Cummins' end-of-active-production status progressively from 2015 onward, with the HMI220 panel (300-6609-0) among the last modules to be formally discontinued. For facilities running PCC1.2-controlled gensets, this creates a defined procurement risk: OEM channel stock is exhausted, lead times from authorized distributors extend to 16–26 weeks when available at all, and the cost of an unplanned outage caused by a failed control module far exceeds the cost of maintaining a strategic spare inventory.

DriveKNMS maintains an active sourcing network for PCC1.2 modules across three channels: surplus industrial equipment dealers, decommissioned genset teardowns, and certified refurbishment partners. Every unit sourced through DriveKNMS undergoes functional verification against Cummins PCC1.2 test specifications before shipment. We do not list modules we cannot physically verify. If a module is listed as available, it has been tested.

For procurement managers evaluating lifecycle extension vs. platform migration: PCC1.2 to PCC2.0 migration requires new wiring harnesses, firmware reconfiguration, and in most cases a new HMI panel. Total migration cost per genset typically ranges from USD 2,800 to USD 6,500 depending on site complexity. For facilities with 5+ PCC1.2 units, maintaining a tested spare pool through DriveKNMS is demonstrably lower TCO than full platform migration until the next scheduled major maintenance window.

Quality Control for the PCC1.2 Range

PCC1.2 modules present specific quality verification challenges that generic electrical testing does not address. The HMI220 panel (300-6609-0) contains a custom LCD/LED driver IC that degrades with age and thermal cycling — visual inspection alone cannot confirm functionality. The main control board (300-4379-x) contains battery-backed SRAM for fault log retention; a depleted backup battery will cause fault history loss and may trigger false fault codes on startup.

DriveKNMS quality control protocol for PCC1.2 modules includes: (1) Visual inspection for PCB corrosion, capacitor bulge, and connector pin damage. (2) Powered bench test using a Cummins-compatible test harness — verifying all I/O channels, display function, and CAN-bus communication. (3) Firmware version verification — confirming the module carries a compatible firmware revision for the target genset application. (4) 48-hour burn-in test for control board assemblies. (5) ESD-safe packaging with humidity indicator cards for international shipment.

All PCC1.2 modules ship with a 12-month warranty covering functional failure under normal operating conditions. Export documentation includes commercial invoice, packing list, and certificate of conformity. Payment accepted in USD, EUR, CNY, and HKD. Shipping via DHL Express, FedEx International Priority, or UPS Worldwide — typical transit time 3–7 business days to most destinations.
