Deep Sea Electronics DSE4520 MKII Series: Comprehensive Module Range and Technical Overview

The Deep Sea Electronics DSE4520 MKII is a mid-range automatic mains failure (AMF) and automatic transfer switch (ATS) controller deployed across global heavy industry sectors including chemical processing plants, nuclear auxiliary power systems, offshore oil platforms, and petroleum refineries. Its dual-source monitoring architecture — simultaneously supervising mains and generator parameters — makes it a standard reference design in facilities where uninterrupted power supply is a regulatory and operational requirement. The DSE4520 MKII is certified to operate in harsh environments and is found in installations across Europe, the Middle East, Southeast Asia, and Sub-Saharan Africa, where grid instability demands reliable automatic transfer logic.

The Evolution of DSE4520 MKII Architecture

Deep Sea Electronics introduced the DSE4520 as a successor to the DSE4510, addressing field demands for expanded input/output capacity and improved LCD display resolution. The original DSE4520 used a single-board architecture with limited CAN bus expansion. The MKII revision introduced a revised PCB layout with enhanced EMC compliance (EN 61000), a wider operating temperature range (−30°C to +70°C), and improved surge protection on analog inputs. The MKII also added compatibility with DSE's PC software suite (DSE Configuration Suite) via USB, replacing the earlier RS-232-only interface. Operators migrating from DSE4510 or DSE4520 (non-MKII) units must account for firmware incompatibility — configuration files are not directly transferable between generations. The DSE4520 MKII is compatible with DSE's standard remote annunciator panels and expansion modules, including the DSE2130 and DSE2157 remote displays. As of 2024, the DSE4520 MKII is in the mature phase of its product lifecycle; Deep Sea Electronics continues to supply the unit but directs new designs toward the DSE4620 MKII platform for projects requiring expanded J1939 engine communication.

DSE4520 MKII Full Catalog & Functionalities (SKU List)

The following SKUs represent the core DSE4520 MKII product family and directly associated expansion and accessory modules verified within the Deep Sea Electronics product range:

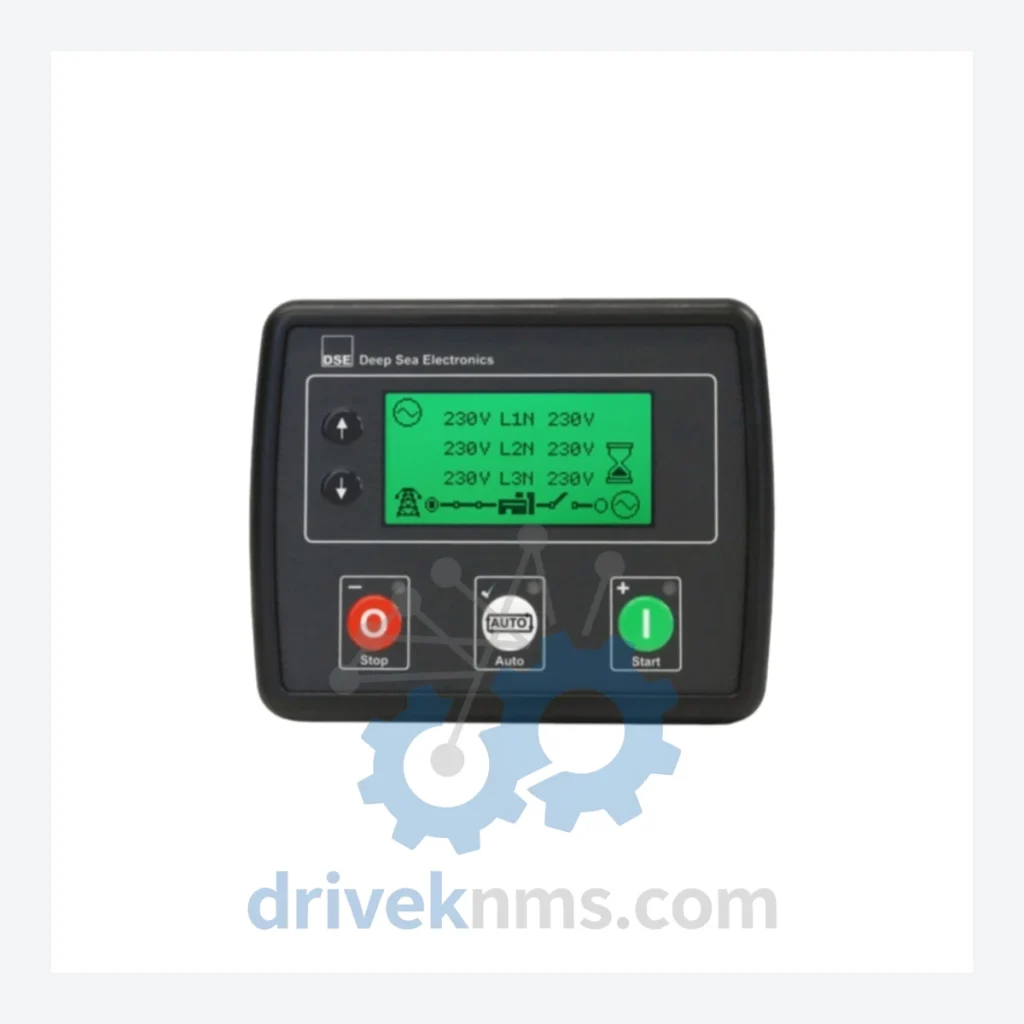

DSE4520 MKII: AMF/ATS controller, dual mains/generator monitoring, LCD display, USB config port.
DSE4520 MKII-01: Standard unit with factory-fitted RS-485 Modbus RTU communication interface.
DSE4520 MKII-02: Extended I/O variant with additional configurable digital inputs (8 DI / 8 DO).
DSE4510 MKII: Predecessor single-source AMF controller; direct form-factor predecessor to DSE4520 MKII.
DSE4620 MKII: Next-generation successor with J1939 CAN engine ECU interface; recommended replacement.
DSE2130: Remote LCD annunciator panel; compatible with DSE4520 MKII via RS-485 bus.
DSE2157: 16-channel remote alarm annunciator; expands DSE4520 MKII alarm output capacity.
DSE125: PC interface module; USB-to-RS-232 bridge for legacy DSE4520 (non-MKII) configuration.
DSE855: MKII USB PC interface lead; primary configuration cable for DSE4520 MKII units.
DSE8610 MKII: Expansion module for load management; integrates with DSE4520 MKII via expansion port.
DSE8620: Parallel expansion card; enables multi-generator synchronization with DSE4520 MKII base unit.
DSE7310 MKII: Single diesel genset controller; shares MKII platform firmware architecture.
DSE7320 MKII: AMF controller for single diesel/gas gensets; same generation as DSE4520 MKII.
DSE7410 MKII: Mains decoupling relay controller; used alongside DSE4520 MKII in grid-parallel applications.
DSE7420 MKII: AMF controller with extended J1939 support; transitional model between DSE4520 MKII and DSE4620 MKII.
DSE9460: PC software suite (DSE Configuration Suite); required for DSE4520 MKII parameter programming via USB.
DSE9480: DSE Load Controller software module; optional add-on for DSE4520 MKII load management configurations.
DSE5110 MKII: Single genset AMF controller; entry-level MKII platform unit sharing common bus architecture.
DSE5120 MKII: AMF/ATS controller; mid-range MKII unit with expanded display versus DSE4520 MKII.

Sourcing Hard-to-Find & Obsolete DSE4520 MKII Parts

Quality Control for the DSE4520 MKII Range

Each DSE4520 MKII unit processed through DriveKNMS undergoes a structured inspection and functional verification protocol specific to the DSE MKII platform architecture. The procedure covers: visual inspection of the PCB for capacitor degradation, relay contact wear, and connector corrosion common to units removed from high-humidity generator room environments; firmware version verification against DSE's published MKII firmware release history; functional test of all configurable digital inputs and outputs under simulated mains-fail and generator-start sequences; RS-485 Modbus RTU communication integrity test using a reference PLC or SCADA terminal; and USB configuration port validation using DSE Configuration Suite (DSE9460). Units exhibiting non-resettable fault codes or corrupted configuration memory are quarantined and not offered for resale. Test records are retained per unit and available upon request for regulated facility procurement processes.
