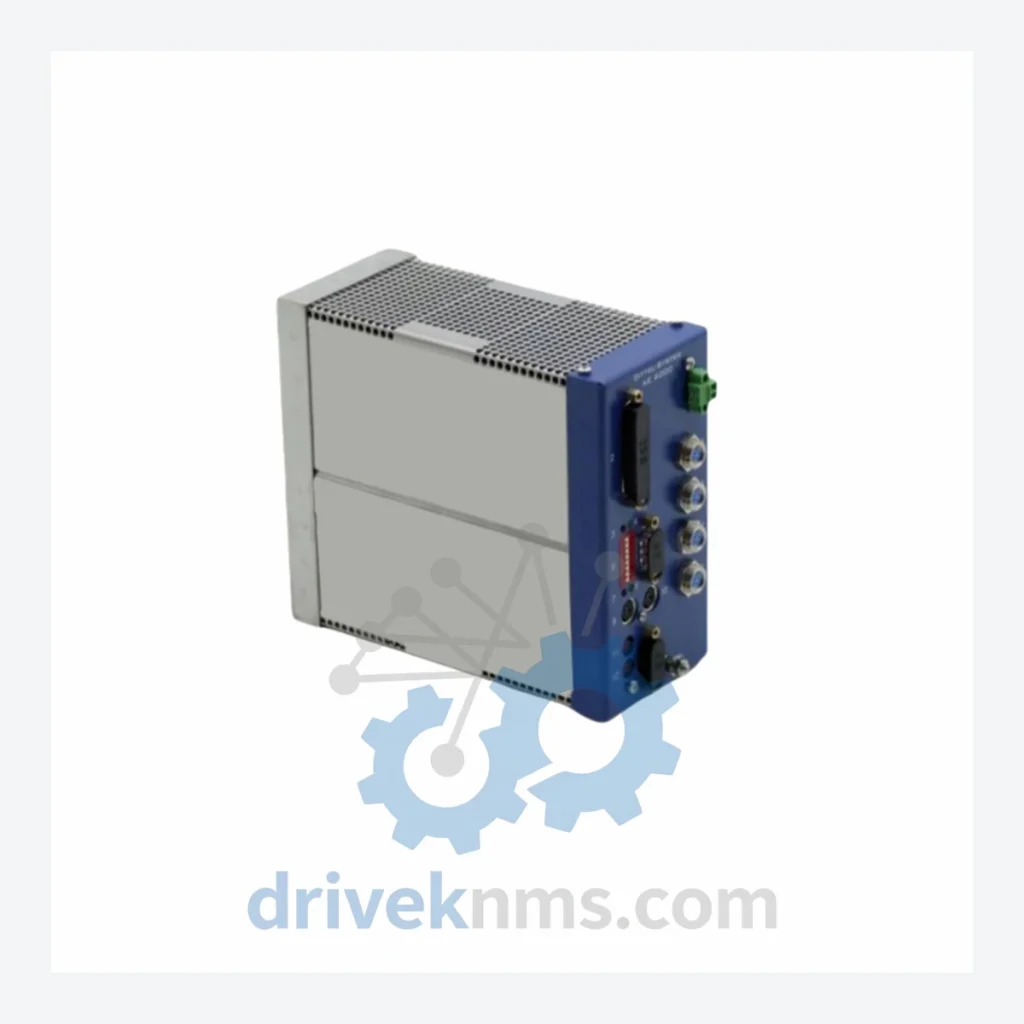

DITTEL F62001 AE6000 Acoustic Emission Module

Technical Dossier

Product Details And Specifications

DITTEL F62001 AE6000 Series: Comprehensive Module Range and Technical Overview

The DITTEL F62001 AE6000 Acoustic Emission (AE) module series is a precision measurement and monitoring platform developed by DITTEL Elektronik GmbH, a German manufacturer specializing in grinding process control systems. The AE6000 series occupies a critical position in heavy industrial environments — including chemical processing plants, nuclear power facilities, petroleum refineries, and precision grinding operations — where real-time detection of acoustic emission signals is required to prevent tool collision, monitor wheel dressing cycles, and ensure workpiece surface integrity.

Deployed across CNC grinding machines from manufacturers such as Studer, Schaudt, Junker, Toyoda, and Okuma, the F62001 AE6000 platform interfaces directly with machine tool controllers via analog and digital I/O, providing closed-loop feedback for adaptive grinding control. Its modular architecture allows integration into both standalone AE monitoring units and multi-axis grinding control systems.

The Evolution of AE6000 Architecture

DITTEL's acoustic emission product line evolved from early analog signal conditioning units in the 1980s into the fully digital, bus-compatible F62001 AE6000 platform. Early-generation DITTEL AE systems relied on discrete analog circuitry for signal amplification and threshold detection, with limited programmability. The transition to the AE6000 architecture introduced microprocessor-based signal processing, configurable sensitivity bands, and standardized connector interfaces compatible with FANUC, Siemens SINUMERIK, and Mitsubishi CNC platforms.

The F62001 chassis serves as the core carrier board, housing the AE6000 signal processing module alongside optional I/O expansion cards. Later revisions of the AE6000 introduced enhanced EMI shielding, extended temperature operating ranges, and support for piezoelectric sensors with broader frequency response (typically 50 kHz–1 MHz). As the series has entered its mature lifecycle phase, DITTEL has transitioned active development toward successor platforms; however, the AE6000 remains widely installed across global grinding machine fleets, making long-term spare parts availability a primary operational concern for maintenance engineers.

F62001 AE6000 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified component range within the DITTEL F62001 AE6000 ecosystem, classified by functional category:

Acoustic Emission Signal Processing Modules

F62001 AE6000: Core AE signal processing module for grinding contact detection and wheel dress monitoring.
F62001 AE6001: AE module variant with extended frequency range for high-speed grinding applications.
F62001 AE6002: Dual-channel AE processing unit for simultaneous multi-sensor monitoring configurations.
F62001 AE6010: AE module with integrated analog output (0–10 V) for direct CNC interface.
F62001 AE6011: AE6010 variant with 4–20 mA current loop output for long-distance signal transmission.
F62001 AE6020: AE module with RS-232 serial interface for data logging and diagnostic output.

Sensor & Transducer Interface Modules

F62001 AE6030: Piezoelectric sensor preamplifier module, 40 dB gain, BNC input connector.
F62001 AE6031: High-sensitivity preamplifier for low-amplitude AE signal environments.
F62001 AE6032: Sensor interface module with selectable gain (20/40/60 dB) via DIP switch configuration.
F62001 AE6040: Waveguide-coupled sensor adapter for indirect AE measurement on coolant-flooded surfaces.

Power Supply & Carrier Modules

F62001 PS6000: 24 VDC regulated power supply module for AE6000 series chassis.
F62001 PS6001: Redundant power supply module with fail-safe relay output for critical applications.
F62001 CB6000: Carrier backplane board, 4-slot, for F62001 chassis module integration.
F62001 CB6001: 8-slot expanded carrier backplane for multi-module AE monitoring systems.

Communication & I/O Interface Modules

F62001 IO6000: Digital I/O expansion module, 8 inputs / 8 outputs, 24 VDC logic level.
F62001 IO6001: Analog I/O module, 4 × analog inputs, 2 × analog outputs, 12-bit resolution.
F62001 GW6000: PROFIBUS-DP gateway module for integration with Siemens SINUMERIK and S7 PLC systems.
F62001 GW6001: PROFINET IO gateway module for Ethernet-based CNC controller integration.

Sourcing Hard-to-Find & Obsolete F62001 AE6000 Parts

The DITTEL F62001 AE6000 series is classified as a mature-to-end-of-life product line. OEM new-stock availability through standard distribution channels is severely limited. DriveKNMS maintains a dedicated inventory of both new-old-stock (NOS) and professionally refurbished AE6000 modules, sourced through verified industrial surplus channels and decommissioned machine tool fleets.

For maintenance engineers operating grinding machines with installed AE6000 systems, DriveKNMS provides the following lifecycle extension services: direct module replacement with tested units carrying a 12-month operational warranty; cross-reference identification for unlabeled or damaged modules using PCB-level inspection; and compatibility verification against specific CNC controller firmware versions to prevent integration failures during replacement.

Quality Control for the F62001 AE6000 Range

Each F62001 AE6000 module processed by DriveKNMS undergoes a structured verification protocol designed specifically for acoustic emission signal conditioning hardware:

Power Rail Verification: All internal DC supply rails (+5 V, ±12 V, +24 V) are measured under load conditions prior to functional testing. Capacitor ESR values on primary filter stages are checked against OEM specifications.

Signal Path Continuity: The AE signal chain — from sensor input connector through preamplifier stage, bandpass filter, RMS detector, and threshold comparator — is tested using a calibrated piezoelectric signal source at defined frequency and amplitude levels.

Threshold and Sensitivity Calibration: Detection threshold potentiometers and digital trim settings are verified against DITTEL factory calibration references. Modules exhibiting drift beyond ±5% of nominal sensitivity are recalibrated before dispatch.

Digital Output Verification: All relay outputs, transistor outputs, and serial communication ports are exercised through full logic state cycles. PROFIBUS and PROFINET gateway modules undergo protocol-level handshake testing with compatible PLC hardware.

Burn-In Procedure: Refurbished modules are subjected to a minimum 48-hour powered burn-in at elevated ambient temperature (50°C) to screen for latent component failures before final inspection and packaging.
