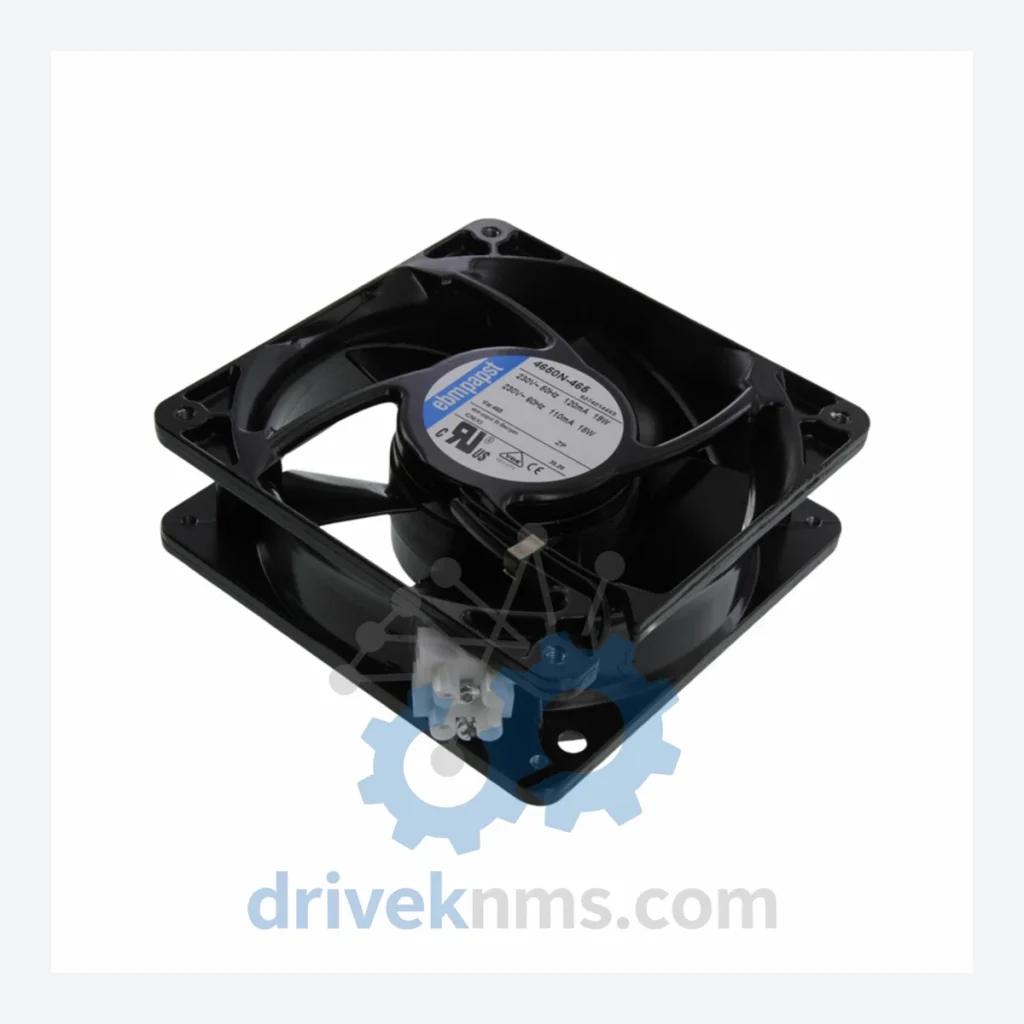

ebm-papst 4650N Series Tubeaxial Fans — 4650N-465

Technical Dossier

Product Details And Specifications

ebm-papst 4650N Series: Comprehensive Module Range and Technical Overview

The ebm-papst 4650N series represents a standardized line of tubeaxial AC fans engineered for continuous-duty industrial environments. These units are deployed across global heavy industry sectors including chemical processing plants, nuclear facility auxiliary systems, oil refinery control cabinets, power generation enclosures, and offshore platform electrical rooms. The 4650N platform is characterized by its 172 mm × 172 mm frame format, external rotor motor design, and compatibility with 230 V AC / 50–60 Hz supply rails — making it a direct-fit replacement in legacy DCS enclosures, PLC cooling bays, and drive system thermal management assemblies. The series has accumulated decades of installed base across Siemens, ABB, Honeywell, and Yokogawa control infrastructure worldwide.

The Evolution of 4650N Architecture

The 4650N series originates from ebm-papst's (formerly EBM Industries, pre-merger with Papst Motoren) standardized 172 mm tubeaxial platform introduced in the 1980s. Early variants operated on single-phase 230 V AC with sleeve bearings and manual speed control. Through the 1990s, the platform transitioned to ball-bearing construction (suffix -B variants) to extend MTBF in high-ambient-temperature enclosures. The 2000s introduced thermally protected motor windings (PTC thermistor integration) and UL/CSA dual-certification, enabling deployment in North American petrochemical facilities without re-engineering. Post-2010 variants incorporated EC (electronically commutated) motor options under the W2E and W3G designations, though the 4650N AC line remained in production to serve the installed base of legacy systems requiring direct drop-in replacement without control system modification. The 4650N-465 specifically targets 230 V AC, 50/60 Hz, single-phase applications with a nominal airflow of approximately 465 m³/h, positioning it as a high-volume cooling unit for large-format control enclosures. Compatibility with older Rittal, Eldon, and Hoffman cabinet fan tray assemblies is confirmed across multiple generations.

4650N Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ebm-papst 4650N tubeaxial fan series. Each unit shares the 172 mm × 172 mm frame standard. Functional classifications are based on voltage, airflow rating, and bearing type.

4650N-465: 230 V AC / 50–60 Hz, ~465 m³/h, ball bearing, single-phase tubeaxial fan.
4650N-264: 230 V AC / 50 Hz, ~264 m³/h, reduced-speed variant for low-noise enclosure cooling.
4650N-355: 230 V AC / 50–60 Hz, ~355 m³/h, mid-range airflow, ball bearing construction.
4650N-2EH: 230 V AC, enhanced humidity-resistant motor winding, tropical-rated variant.
4650N-2EL: 230 V AC, low-noise optimized blade geometry, acoustic-sensitive installations.
4650N-2ES: 230 V AC, safety-extra-low-voltage compatible interface, PTC thermistor standard.
4650N-115: 115 V AC / 60 Hz, North American supply voltage variant, UL/CSA listed.
4650N-115/22: 115 V AC dual-voltage, 50/60 Hz, with integrated capacitor for phase-shift start.
4650N-230/22: 230 V AC dual-voltage, 50/60 Hz, capacitor-run motor, high-efficiency blade.
4650N-2EW: 230 V AC, weatherproof IP54-rated motor housing, outdoor-rated auxiliary cooling.
4650N-2GH: 230 V AC, high-temperature motor winding rated to 70 °C ambient, foundry-grade.
4650N-2GL: 230 V AC, long-life ball bearing (L10 >40,000 h), critical infrastructure variant.
4650N-2GM: 230 V AC, metal impeller construction, spark-resistant for ATEX-adjacent zones.
4650N-2GP: 230 V AC, plastic impeller, corrosion-resistant for chemical plant enclosures.
4650N-2GR: 230 V AC, reverse-airflow configuration, exhaust-mode cabinet thermal management.
4650N-2GT: 230 V AC, integrated thermal cutout (auto-reset), motor overtemperature protection.
4650N-2GU: 230 V AC, UL 507 listed, CSA C22.2 No. 113 certified, North American compliance.

Sourcing Hard-to-Find & Obsolete 4650N Parts

Quality Control for the 4650N Range

Each 4650N unit processed by DriveKNMS undergoes a structured inspection protocol prior to dispatch. Incoming units are visually inspected for impeller blade integrity, motor housing deformation, and bearing race condition. Electrical testing includes: insulation resistance measurement (megohm test at 500 V DC between winding and frame), no-load current draw verification against nameplate rating (±10% tolerance), and capacitor ESR measurement for capacitor-run variants. Rotational testing is conducted at rated voltage for a minimum 30-minute run-in cycle with vibration amplitude monitoring. Airflow output is spot-checked using a calibrated anemometer against the published m³/h specification. Units exhibiting bearing noise above 45 dB(A) at 1 m, abnormal current draw, or impeller imbalance are quarantined and not dispatched. Test records are retained per unit serial number and available upon request for quality audit purposes.
