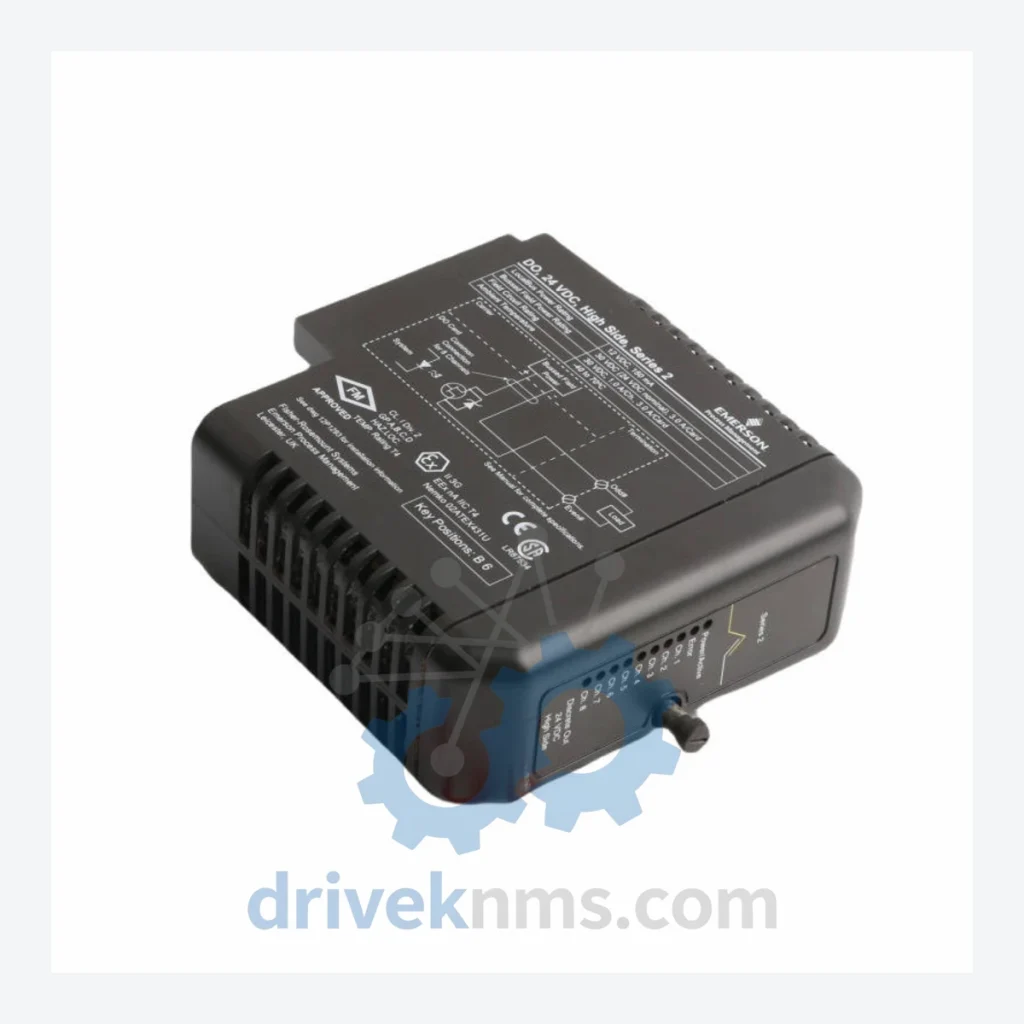

Emerson DeltaV KJ3241X1-BA1 Series Modules – 12P2506X052

Name: Emerson DeltaV KJ3241X1-BA1 Series Modules – 12P2506X052
Brand: Emerson

Model: KJ3241X1-BA1 12P2506X052

Brand Emerson

Series DeltaV

Model KJ3241X1-BA1 12P2506X052

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ3241X1-BA1 Series Technical Notes

The Evolution of DeltaV KJ3241X1 Architecture

The DeltaV platform was introduced by Emerson (then Fisher-Rosemount) in 1996 as a scalable, node-based DCS designed to replace legacy proprietary systems such as the RS3 and PROVOX lines. The KJ-series I/O modules emerged in the early 2000s as the standardized hardware layer for DeltaV S-series controllers, replacing earlier MD-series form factors. The KJ3241X1-BA1 belongs to the serial communications sub-family, which addressed the integration challenge of connecting DeltaV to HART multiplexers, Modbus RTU devices, and legacy analyzers via hardwired serial links.

DeltaV KJ3241X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson DeltaV KJ-series I/O and controller ecosystem. Each entry reflects a distinct functional role within the DeltaV hardware architecture:

KJ3241X1-BA1 (12P2506X052): Serial interface module, RS-232/RS-485, DeltaV S-series carrier mount.
KJ3221X1-BA1 (12P2525X012): 8-channel AI module, 4–20 mA HART, single-ended inputs.
KJ3222X1-BA1 (12P2526X012): 8-channel AI module, 4–20 mA HART, differential inputs.
KJ3223X1-BA1 (12P2527X012): 8-channel AI module, thermocouple/RTD, multi-type input.
KJ3232X1-BA1 (12P2532X012): 8-channel AO module, 4–20 mA HART analog output.
KJ3242X1-BA1 (12P2507X012): Foundation Fieldbus H1 interface module, 2-segment.
KJ3243X1-BA1 (12P2508X012): PROFIBUS DP interface module, master/slave capable.
KJ3244X1-BA1 (12P2509X012): DeviceNet interface module, scanner function.
KJ3201X1-BA1 (12P2500X012): 8-channel DI module, 24 VDC discrete input, NAMUR compatible.
KJ3202X1-BA1 (12P2501X012): 8-channel DI module, 120 VAC discrete input.
KJ3211X1-BA1 (12P2503X012): 8-channel DO module, 24 VDC discrete output, sourcing.
KJ3212X1-BA1 (12P2504X012): 8-channel DO module, relay contact output, SPDT.
KJ3251X1-BA1 (12P2510X012): DeltaV controller carrier, 8-slot horizontal I/O bus.
KJ3253X1-BA1 (12P2512X012): Power supply module, 24 VDC, redundant-capable for carrier rail.
KJ3261X1-BA1 (12P2515X012): Redundant controller module, MD Plus class, dual-ported.
KJ3271X1-BA1 (12P2520X012): Intrinsically safe AI module, 4–20 mA, Zone 0/1 rated.
KJ3272X1-BA1 (12P2521X012): Intrinsically safe DI module, 24 VDC, ATEX/IECEx certified.
