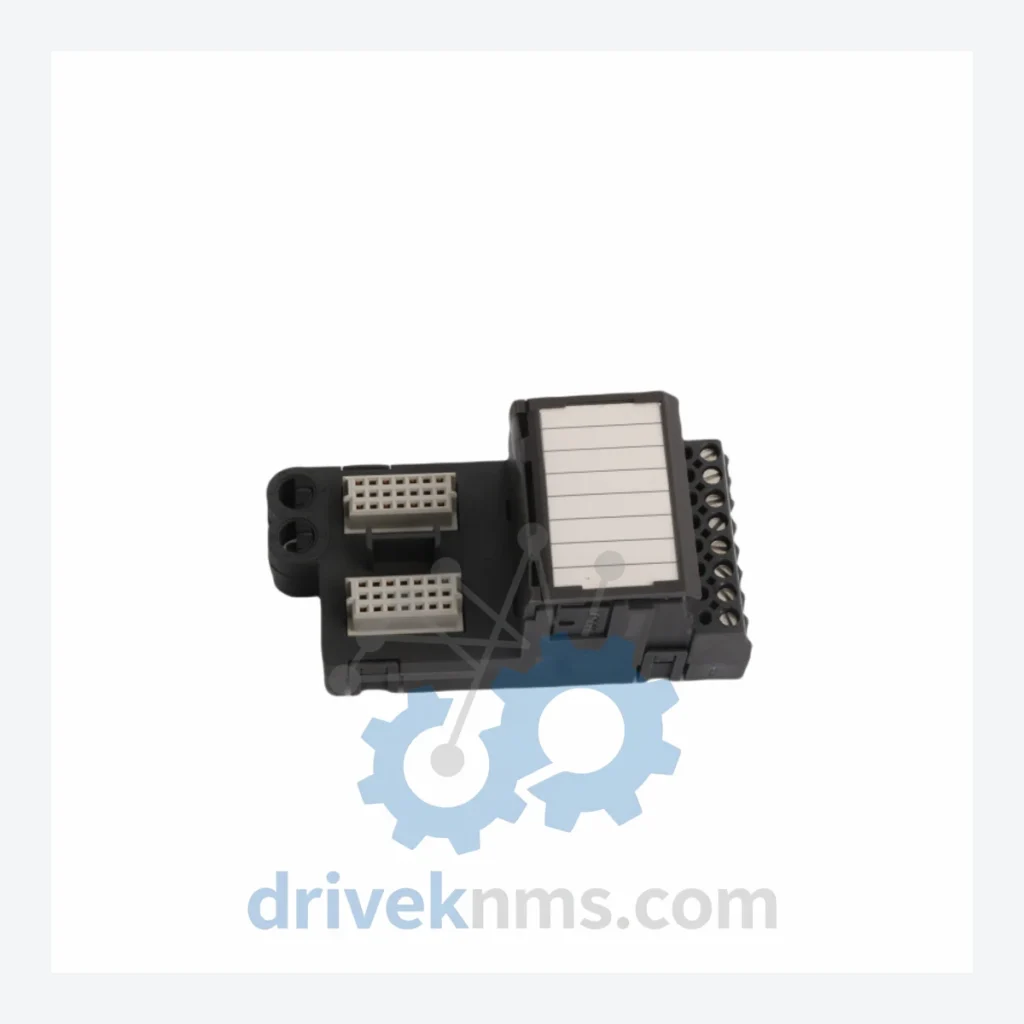

Emerson DeltaV KJ4001-CB1 12P0625X072 I/O Terminal Block

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ4001 Series Technical Notes

The Emerson DeltaV KJ4001 series represents a core component family within the DeltaV distributed control system (DCS) platform, deployed extensively across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, LNG terminals, and continuous-process chemical plants. The KJ4001 I/O terminal block subsystem provides the physical field-wiring interface layer between field instrumentation and DeltaV I/O cards, enabling structured, maintainable signal termination in high-density control environments. Installations of this series are documented across facilities operated by major EPC contractors and owner-operators in North America, Europe, the Middle East, and Asia-Pacific, with installed base units numbering in the hundreds of thousands across active and legacy DCS architectures.

The Evolution of DeltaV KJ4001 Architecture

The DeltaV platform was introduced by Emerson (then Fisher-Rosemount) in 1996 as a scalable, modular DCS targeting mid-to-large process industries. The KJ4001 terminal block family was developed in parallel with the Series 2 I/O card generation, standardizing on a 12-position and 16-position screw-terminal format compatible with DIN-rail mounting in marshalling cabinets.

Early-generation KJ4001 blocks (pre-2005) used a single-row terminal layout with limited labeling provisions. The 12P0625X072 variant introduced a dual-row, color-coded terminal arrangement with integrated cable management, improving field-wiring density and reducing commissioning errors. Subsequent revisions addressed terminal torque specifications and introduced vibration-resistant locking mechanisms for offshore and high-vibration installations.

Compatibility considerations span three DeltaV hardware generations: Series 1 (legacy, largely obsolete), Series 2 (current installed base majority), and the Electronic Marshalling / CHARM architecture (post-2012), which introduced the CIOC and CHARMs I/O cards as a parallel termination paradigm. KJ4001 terminal blocks remain fully compatible with Series 2 I/O cards and are not interchangeable with CHARM-based termination assemblies. Plants operating mixed-generation DeltaV architectures must maintain separate spare parts inventories for each termination type.

DeltaV KJ4001 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked components within the KJ4001 terminal block and associated DeltaV I/O interface family. Each entry reflects a distinct functional role within the DeltaV marshalling and I/O subsystem.

KJ4001-CB1 12P0625X072: 12-position I/O terminal block, Series 2, DIN-rail mount, field-wiring interface for analog/discrete I/O cards.
KJ4001X1-BA1: Standard I/O terminal block assembly, 16-position, compatible with KJ3221 and KJ3222 AI cards.
KJ4001X1-BB1: 16-position terminal block with integrated fusing provisions for loop-powered transmitter circuits.
KJ4001X1-BC1: Terminal block variant with surge protection modules for field signal conditioning in high-EMI environments.
KJ4001X1-BD1: Marshalling terminal block, 12-position, optimized for discrete input (DI) card interfaces including KJ3201.
KJ4001X1-BE1: 12-position terminal block for discrete output (DO) card interfaces, rated for 24 VDC and 120 VAC field loads.
KJ4001X1-BF1: Analog output (AO) terminal block, 8-position, for use with KJ3241 4–20 mA output cards.
KJ4001X1-BG1: RTD/thermocouple input terminal block, 12-position, for KJ3211 temperature input cards.
KJ4001X1-BH1: High-density terminal block, 24-position, for use in compact marshalling panel configurations.
KJ4001X1-BJ1: Redundant power distribution terminal block for DeltaV I/O power bus applications.
KJ4001X1-BK1: Intrinsically safe (IS) terminal block assembly, ATEX/IECEx certified, for Zone 1 hazardous area field wiring.
KJ4001X1-BL1: Terminal block with integrated signal isolators for ground-loop elimination in multi-vendor field device installations.
KJ4001X1-BM1: Spare terminal block kit, 12-position, includes mounting hardware and labeling strips for field replacement.
KJ4001X1-BN1: Extended-temperature terminal block rated for –40°C to +70°C, for outdoor or unheated enclosure installations.
KJ4001X1-BP1: Communication interface terminal block for HART pass-through wiring to DeltaV HART multiplexer cards.
KJ4001X1-BQ1: Foundation Fieldbus (FF) segment terminal block, 8-position, for H1 segment field device termination.
KJ4001X1-BR1: PROFIBUS PA terminal block assembly for DeltaV PROFIBUS interface card wiring.

Quality Control for the DeltaV KJ4001 Range

Terminal block assemblies in the KJ4001 family present specific inspection requirements distinct from active electronic modules. DriveKNMS applies the following verification protocol to all KJ4001 units prior to shipment:

Visual inspection covers terminal screw condition, insulation integrity, label strip completeness, and DIN-rail clip mechanism function. Dimensional verification confirms terminal pitch and block geometry against Emerson engineering drawings to ensure correct mating with I/O card connectors. Electrical continuity testing is performed on each terminal position using a calibrated low-resistance ohmmeter, verifying end-to-end conductivity and absence of intermittent contact. Insulation resistance testing at 500 VDC between adjacent terminals and between terminals and the mounting rail confirms dielectric integrity. For IS-rated variants (KJ4001X1-BK1 and similar), barrier resistance values are verified against manufacturer specifications. Units with evidence of thermal stress, corrosion, or mechanical deformation are quarantined and not offered for resale. All tested units are individually bagged, labeled with part number and test date, and stored in ESD-controlled, climate-regulated warehouse conditions.
