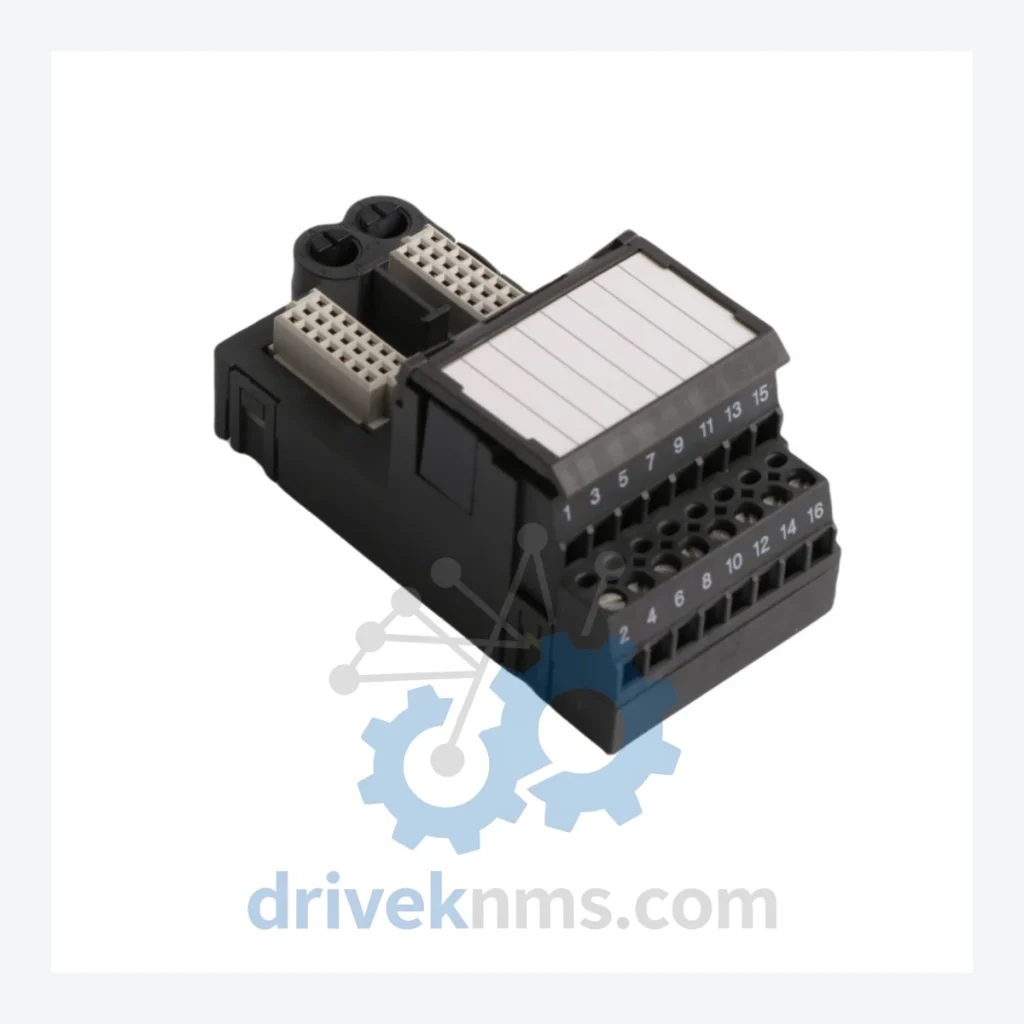

Emerson DeltaV KJ4001X1-CA1 12P0623X082 I/O Terminal Block

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ4001 Series Technical Notes

The Evolution of KJ4001 Architecture

The DeltaV KJ4001 terminal block series was introduced as part of Emerson's second-generation DeltaV I/O architecture, succeeding earlier marshalling cabinet designs that required extensive point-to-point field wiring. The KJ4001 platform standardized on a 12-channel terminal block form factor, enabling direct mounting onto DeltaV I/O subsystem carriers (KJ3001, KJ3002 series). Early revisions of the KJ4001 were designed for compatibility with DeltaV v6.x and v7.x controller firmware. Subsequent hardware revisions (denoted by suffix codes such as -CA1, -CB1) introduced enhanced EMI shielding, revised terminal torque specifications, and improved corrosion-resistant plating on screw terminals to address field feedback from offshore and high-humidity installations. The 12P0623X082 assembly code identifies a specific manufacturing revision and configuration variant, critical for exact-match replacement in validated process environments such as FDA-regulated pharmaceutical plants where component traceability is mandatory. As DeltaV has evolved through v11, v13, and v14 releases, the KJ4001 terminal block hardware has maintained backward compatibility, though integration with newer Electronic Marshalling (CHARM) architecture represents the strategic migration path for greenfield projects. Sites running legacy DeltaV I/O subsystems continue to require KJ4001-series terminal blocks for ongoing maintenance and expansion.

KJ4001 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson DeltaV KJ4001 and associated I/O terminal block ecosystem. Each entry reflects a distinct hardware configuration or channel type:

KJ4001X1-CA1 12P0623X082: 12-ch I/O terminal block, standard analog/discrete field wiring interface, revision CA1.
KJ4001X1-CB1: 12-ch I/O terminal block, revised EMI shielding and terminal plating, successor to CA1 revision.
KJ4002X1-BA1: 8-ch intrinsically safe I/O terminal block, ATEX/IECEx rated, for Zone 1 hazardous area field devices.
KJ4003X1-BA1: 16-ch discrete I/O terminal block, high-density configuration for digital input/output marshalling.
KJ4004X1-BA1: Analog input terminal block, 4–20 mA HART-enabled, supports HART pass-through to DeltaV HART multiplexer.
KJ4005X1-BA1: Analog output terminal block, 4–20 mA, loop-powered field device interface.
KJ4006X1-BA1: Thermocouple/RTD input terminal block, supports J, K, T, E type TC and Pt100 RTD inputs.
KJ4007X1-BA1: Discrete input terminal block, 24 VDC wet contact, 16-channel configuration.
KJ4008X1-BA1: Discrete output terminal block, 24 VDC sourcing, 8-channel, fused per channel.
KJ4009X1-BA1: High-density analog input terminal block, 16-ch, 4–20 mA, non-HART.
KJ4010X1-BA1: Redundant power terminal block, dual-feed input for critical I/O carrier power distribution.
KJ4011X1-BA1: Foundation Fieldbus H1 terminal block, segment terminator integrated, 2-channel.
KJ4012X1-BA1: PROFIBUS PA terminal block, segment coupler interface, hazardous area rated.
KJ4013X1-BA1: Pulse input terminal block, frequency/pulse counting for flow meter and turbine meter interfaces.
KJ4014X1-BA1: Solenoid output terminal block, 24 VDC, 8-channel, with per-channel diagnostics.
KJ4015X1-BA1: Strain gauge / mV input terminal block, bridge completion resistors included, 4-channel.
KJ4016X1-BA1: Isolated analog input terminal block, channel-to-channel isolation, 8-channel, 4–20 mA.

Sourcing Hard-to-Find & Obsolete KJ4001 Parts

The KJ4001X1-CA1 12P0623X082 and several adjacent SKUs in this series have entered the mature-to-end-of-life phase of their product lifecycle. Emerson has transitioned strategic development focus toward the CHARM (Characterization Module) I/O architecture for new DeltaV installations. However, the installed base of legacy DeltaV I/O subsystems across global process industries remains substantial, and operators of these systems require a reliable supply chain for terminal blocks, carriers, and associated hardware to sustain operations through extended plant lifecycles — often 20 to 30 years post-commissioning.
