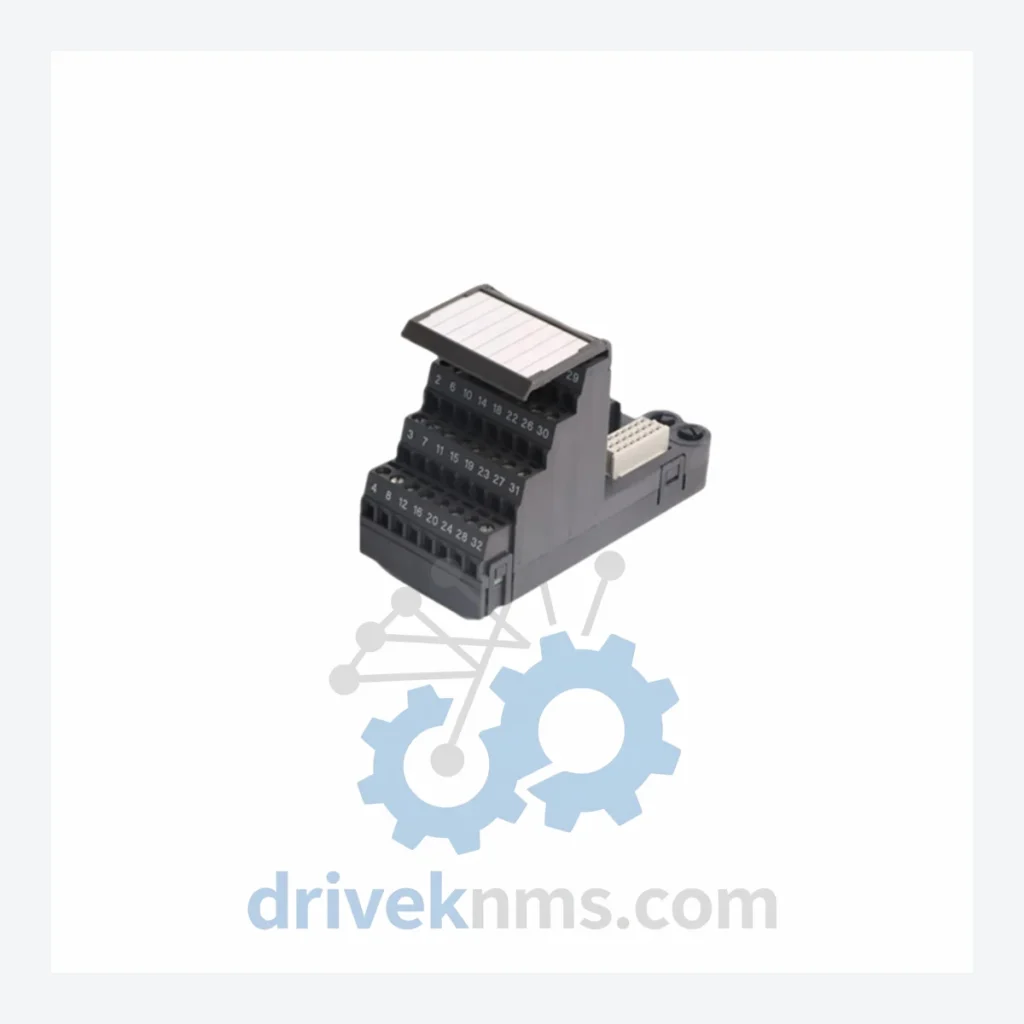

Emerson DeltaV KJ4001X1 Series Channel Terminal Blocks – KJ4001X1-CJ1 12P1902X032

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ4001X1 Series Technical Notes

The Evolution of KJ4001X1 Architecture

The DeltaV platform was introduced by Fisher-Rosemount Systems (later acquired by Emerson Electric) in 1996. The KJ4001X1 channel terminal block series was developed as part of the DeltaV Series 2 I/O subsystem, designed to replace the earlier marshalling panel architecture with a modular, plug-and-play field termination approach. Early revisions (pre-2005) used a fixed-screw terminal design with limited channel density. From approximately 2006 onward, Emerson introduced the Electronic Marshalling concept (CHARM — Characterization Module), which shifted the architecture toward the CHARMS I/O system (KJ3221X1, KJ3222X1 series). However, the KJ4001X1 series remained the standard termination block for traditional DeltaV I/O cards (8-channel and 16-channel AI/AO/DI/DO) through the DeltaV v14 and v15 software generations. Compatibility considerations: KJ4001X1 blocks are not interchangeable with CHARM-based termination assemblies. Installations running DeltaV v7.x through v15.x on traditional I/O hardware continue to rely on this series. Replacement planning must account for card-type-specific terminal block variants — a KJ4001X1-CJ1 block is not a universal substitute for all KJ4001X1 suffixes.

KJ4001X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Emerson DeltaV KJ4001X1 channel terminal block series, organized by I/O function type:

Analog Input (AI) Terminal Blocks

KJ4001X1-BA1: 8-ch AI terminal block, 4–20 mA HART, non-isolated
KJ4001X1-BB1: 8-ch AI terminal block, 4–20 mA HART, isolated per channel
KJ4001X1-BC1: 8-ch AI terminal block, RTD/thermocouple multi-variable input
KJ4001X1-BD1: 8-ch AI terminal block, high-density 16-ch HART analog input
KJ4001X1-BE1: 8-ch AI terminal block, intrinsically safe (IS) HART input

Analog Output (AO) Terminal Blocks

KJ4001X1-CA1: 8-ch AO terminal block, 4–20 mA HART output, standard
KJ4001X1-CB1: 8-ch AO terminal block, 4–20 mA HART output, isolated
KJ4001X1-CC1: 8-ch AO terminal block, intrinsically safe HART output

Discrete Input (DI) Terminal Blocks

KJ4001X1-DA1: 8-ch DI terminal block, 24 VDC dry contact / wet contact input
KJ4001X1-DB1: 16-ch DI terminal block, 24 VDC high-density discrete input
KJ4001X1-DC1: 8-ch DI terminal block, 120 VAC discrete input
KJ4001X1-DD1: 8-ch DI terminal block, 240 VAC discrete input

Discrete Output (DO) Terminal Blocks

KJ4001X1-EA1: 8-ch DO terminal block, 24 VDC sourcing output
KJ4001X1-EB1: 8-ch DO terminal block, relay output, SPDT contacts
KJ4001X1-EC1: 8-ch DO terminal block, 120 VAC triac output

Channel Terminal Block — Field Wiring Assembly

KJ4001X1-CJ1 12P1902X032: Channel terminal block field wiring assembly, 12-position, standard density, mates with DeltaV 8-ch I/O cards; part number 12P1902X032 denotes the specific wiring harness revision used in marshalled cabinet configurations.

Quality Control for the KJ4001X1 Range

Channel terminal blocks in the KJ4001X1 series interface directly with DeltaV I/O card backplane connectors. Quality verification for this series includes: (1) Connector pin inspection — each terminal block connector is inspected under magnification for bent, corroded, or recessed pins that would cause intermittent channel faults. (2) Screw terminal torque verification — field wiring terminals are tested for correct torque retention per Emerson installation specifications (typically 0.5–0.6 N·m). (3) Isolation resistance test — for isolated-channel variants, inter-channel isolation is verified at ≥100 MΩ at 500 VDC. (4) Functional mating test — each block is mated with a reference DeltaV I/O card and subjected to a 24-hour signal continuity test across all channels. (5) Label and revision verification — part number suffix and PCB revision markings are cross-checked against Emerson's published hardware revision history to prevent cross-revision substitution errors.
