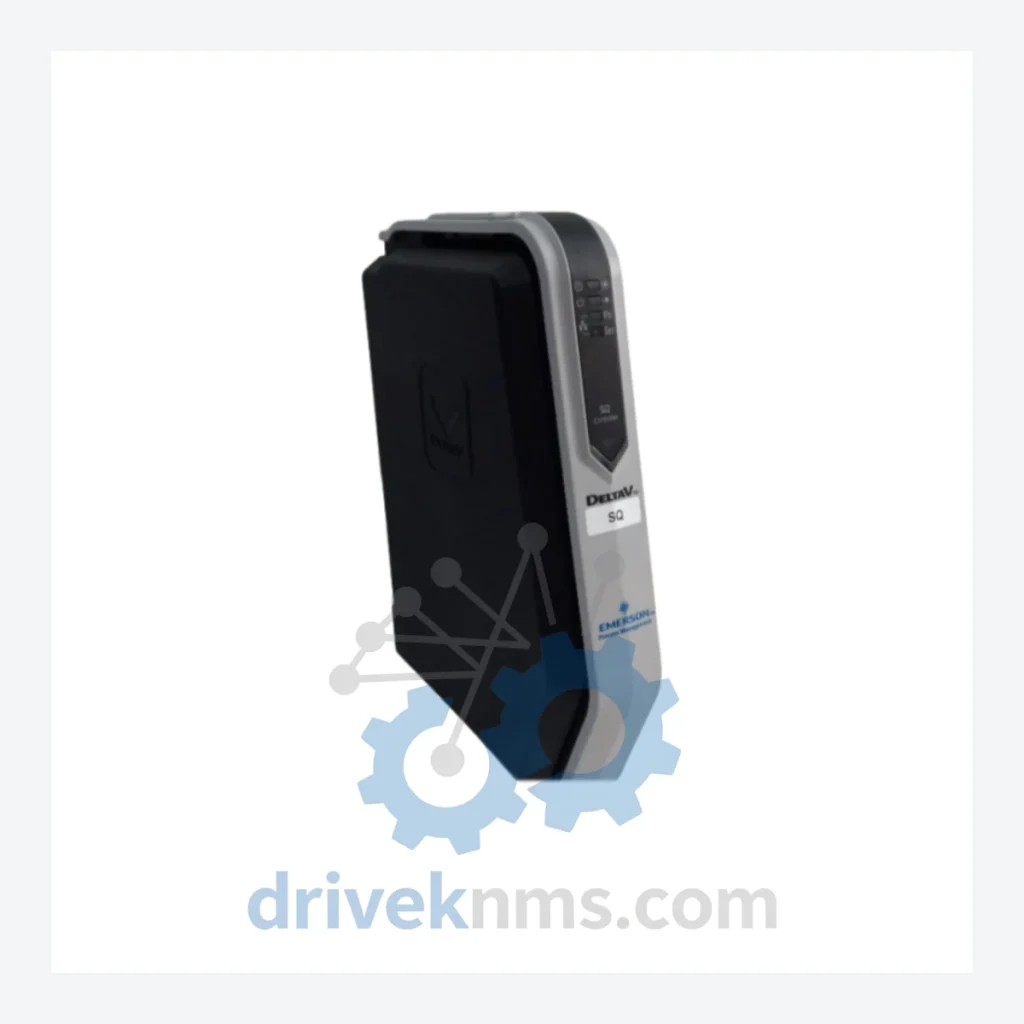

Emerson DeltaV SIS KJ2005X1-SQ1 12P6383X022 Modules

Technical Dossier

Product Details And Specifications

Emerson DeltaV SIS KJ2005X1-SQ1 Series Technical Notes

The Emerson DeltaV SIS (Safety Instrumented System) platform, anchored by the KJ2005X1-SQ1 logic solver family, is one of the most widely deployed safety-rated control architectures in global heavy industry. Installations span petrochemical complexes, offshore oil and gas platforms, nuclear auxiliary systems, LNG terminals, and continuous-process refineries across North America, the Middle East, and Asia-Pacific. The KJ2005X1-SQ1 12P6383X022 is a certified SIL 2/3-capable logic solver module operating within the DeltaV SIS subsystem, designed for deterministic safety shutdown execution, redundant I/O voting, and hardwired ESD integration. Its IEC 61511-compliant architecture makes it a mandatory component in facilities where functional safety certification is a regulatory requirement.

The Evolution of KJ2005X1-SQ1 Architecture

The DeltaV SIS platform was introduced by Emerson in the early 2000s as a tightly integrated safety layer for the DeltaV distributed control system, replacing earlier standalone SIS solutions that required separate engineering environments. The first-generation logic solvers used proprietary backplane communication with limited diagnostic coverage. Subsequent hardware revisions introduced dual-redundant power architectures, expanded diagnostic self-test intervals, and SIL 3-capable voting configurations (1oo2D, 2oo3). The KJ2005X1-SQ1 series represents the mature mid-generation hardware, characterized by its 12-channel I/O density, integrated HART pass-through capability, and compatibility with DeltaV SIS Workstation v11.x through v14.x. Later platform evolution introduced the DeltaV SIS with Electronic Marshalling (CHARM-based), which offers field-level redundancy but requires different module families. The KJ2005X1-SQ1 remains the dominant installed base module for brownfield SIS upgrades where backplane compatibility with existing DeltaV SIS cabinets is required.

KJ2005X1-SQ1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked components within the Emerson DeltaV SIS KJ2005X1-SQ1 ecosystem. Each entry reflects a distinct hardware configuration or firmware revision.

Logic Solvers & Controllers

• KJ2005X1-SQ1 12P6383X022: DeltaV SIS logic solver, 12-ch, SIL 2/3, dual-redundant backplane interface
• KJ2005X1-BA1 12P6383X012: DeltaV SIS logic solver base variant, single redundancy, SIL 2 rated
• KJ2005X1-CA1 12P6383X032: Logic solver with extended diagnostic coverage, SIL 3 voting support
• KJ2005X1-DA1 12P6383X042: High-density logic solver, 24-ch I/O expansion, DeltaV SIS v13+ compatible

Digital Input (DI) Modules

• KJ3001X1-BA1: 8-ch 24VDC DI module, SIL 2, dry contact and NAMUR sensor compatible
• KJ3001X1-CA1: 16-ch 24VDC DI module, 1oo2 voting architecture, SIL 3 capable
• KJ3002X1-BA1: 8-ch 120VAC DI module, high-voltage field input, SIL 2
• KJ3002X1-CA1: 16-ch 120VAC DI module, redundant input scanning, SIL 2/3

Digital Output (DO) Modules

• KJ3221X1-BA1: 8-ch 24VDC DO module, solid-state output, SIL 2, 0.5A per channel
• KJ3221X1-CA1: 8-ch 24VDC DO module with line fault detection, SIL 3
• KJ3222X1-BA1: 4-ch relay output module, 2A per channel, SIL 2, hardwired ESD interface

Analog Input (AI) Modules

• KJ3101X1-BA1: 8-ch 4–20mA AI module, HART-enabled, SIL 2, loop-powered sensor support
• KJ3101X1-CA1: 8-ch AI module with redundant A/D conversion, SIL 3, HART pass-through
• KJ3102X1-BA1: 4-ch thermocouple/RTD AI module, SIL 2, multi-sensor type support

Power & Communication

• KJ4001X1-BA1: DeltaV SIS power supply module, 24VDC, redundant configuration support
• KJ4002X1-BA1: SIS network interface module, DeltaV SIS bus to DeltaV DCS integration
• KJ4003X1-BA1: SIS diagnostic communication module, Modbus RTU/TCP gateway

Sourcing Hard-to-Find & Obsolete KJ2005X1-SQ1 Parts

The KJ2005X1-SQ1 series has entered the mature/sustained phase of its product lifecycle. Emerson continues to provide firmware support through DeltaV SIS v14.x, but new hardware production volumes have declined as the market transitions to CHARM-based SIS architectures. This creates a documented supply gap for facilities operating legacy DeltaV SIS cabinets that cannot justify a full platform migration.

Quality Control for the KJ2005X1-SQ1 Range

DeltaV SIS modules present specific test challenges due to their integrated backplane communication protocol, dual-port memory architecture, and safety-rated watchdog circuits. DriveKNMS applies a structured test protocol for all KJ2005X1-SQ1 series units:
