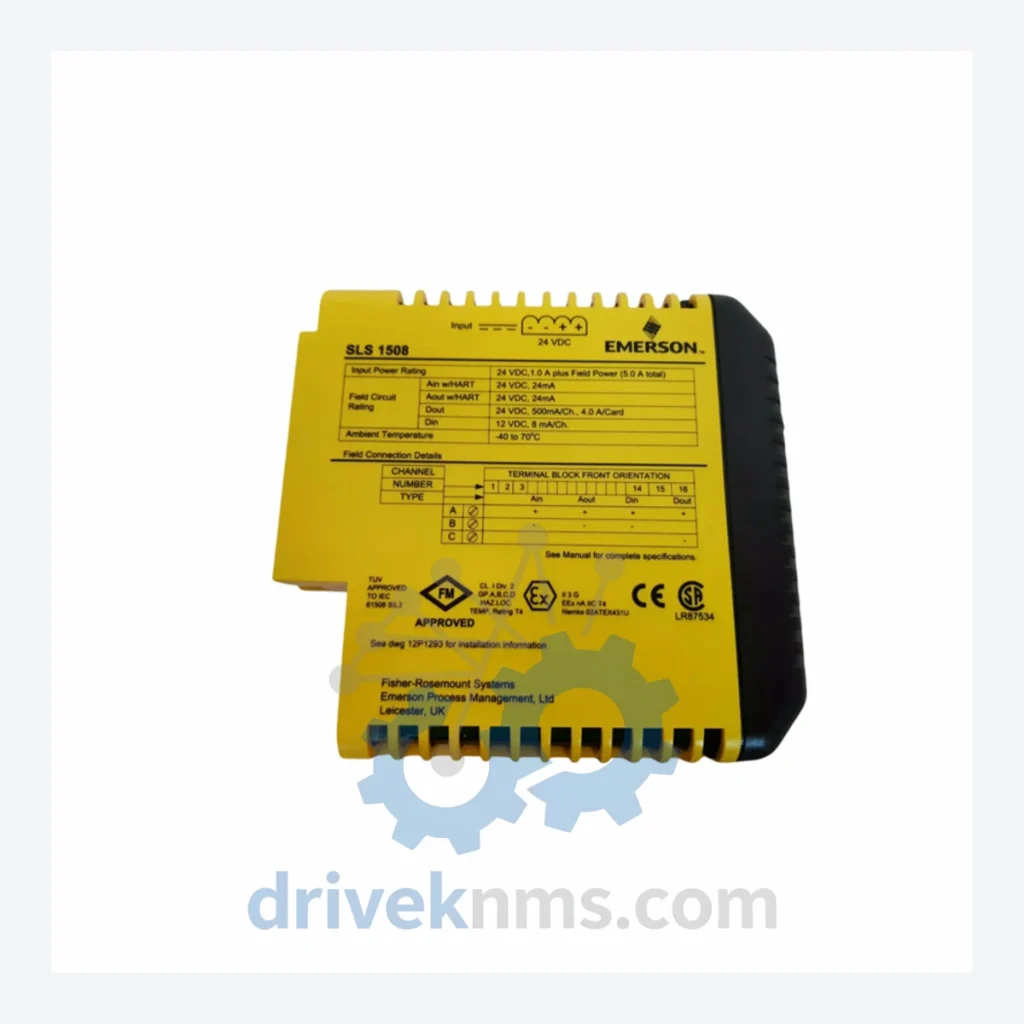

Emerson DeltaV SLS1508 Modules: KJ2201X1-BA1 12P3162X162 SLS1508

Technical Dossier

Product Details And Specifications

Emerson DeltaV SLS1508 Series Technical Notes

The Evolution of SLS1508 Architecture

The SLS1508 safety logic solver was introduced as part of Emerson's strategy to converge safety instrumented systems (SIS) with basic process control systems (BPCS) under the DeltaV platform umbrella. Early deployments utilized standalone SLS controllers with discrete I/O wiring; subsequent revisions introduced the CHARM (Characterization Module) I/O concept, enabling field-side signal characterization and reducing marshalling cabinet footprint. The KJ2201X1-BA1 variant, carrying the 12P3162X162 board revision, represents a mid-generation logic I/O module optimized for high-density digital signal processing within the SLS1508 chassis. As the DeltaV SIS platform evolved toward the SLS1508 with CHARM I/O and later the DeltaV SIS with Electronic Marshalling, backward compatibility with earlier SLS1508 backplane configurations became a critical engineering consideration during plant upgrades. Sites running original SLS1508 hardware must validate firmware revision compatibility before introducing replacement modules from later production batches.

SLS1508 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Emerson DeltaV SLS1508 safety system platform. Each entry reflects a distinct functional role within the SIS architecture:

KJ2201X1-BA1: Logic I/O module, 12P3162X162 board rev, SLS1508 chassis-mount digital signal processing.
KJ2201X1-BA2: Logic I/O module, revised board revision with enhanced diagnostic coverage for SIL 3 loops.
KJ3001X1-BA1: SLS1508 controller module, primary CPU for safety logic execution and DeltaV SIS communication.
KJ3001X1-BA2: SLS1508 controller module, secondary/redundant CPU variant for fault-tolerant configurations.
KJ4001X1-BA1: SLS1508 power supply module, 24 VDC input, chassis backplane power distribution.
KJ4001X1-BA2: SLS1508 power supply module, redundant pair configuration for continuous availability.
KJ2211X1-BA1: Digital input module, 8-channel, 24 VDC, SIL 2 rated, SLS1508 backplane compatible.
KJ2221X1-BA1: Digital output module, 8-channel, relay-isolated, SIL 2 rated, SLS1508 chassis.
KJ2231X1-BA1: Analog input module, 4–20 mA HART, 8-channel, SIL 2, SLS1508 platform.
KJ2241X1-BA1: Analog output module, 4–20 mA, 4-channel, SIL 2, SLS1508 backplane.
KJ2251X1-BA1: HART multiplexer interface module, SLS1508 chassis, supports HART pass-through diagnostics.
KJ2261X1-BA1: Thermocouple/RTD input module, 8-channel, SIL 2, SLS1508 safety system.
KJ3101X1-BA1: SLS1508 communication adapter, DeltaV SIS network interface, redundant Ethernet.
KJ3201X1-BA1: SLS1508 I/O bus interface module, backplane-to-controller data bridge.
KJ1501X1-BA1: SLS1508 chassis/backplane assembly, 8-slot, accepts all SLS1508-series I/O and controller modules.
KJ1502X1-BA1: SLS1508 chassis/backplane assembly, 16-slot, extended I/O capacity for large safety loops.
KJ2271X1-BA1: Discrete valve interface module, SIL 2, SLS1508, supports partial stroke testing (PST) output logic.
