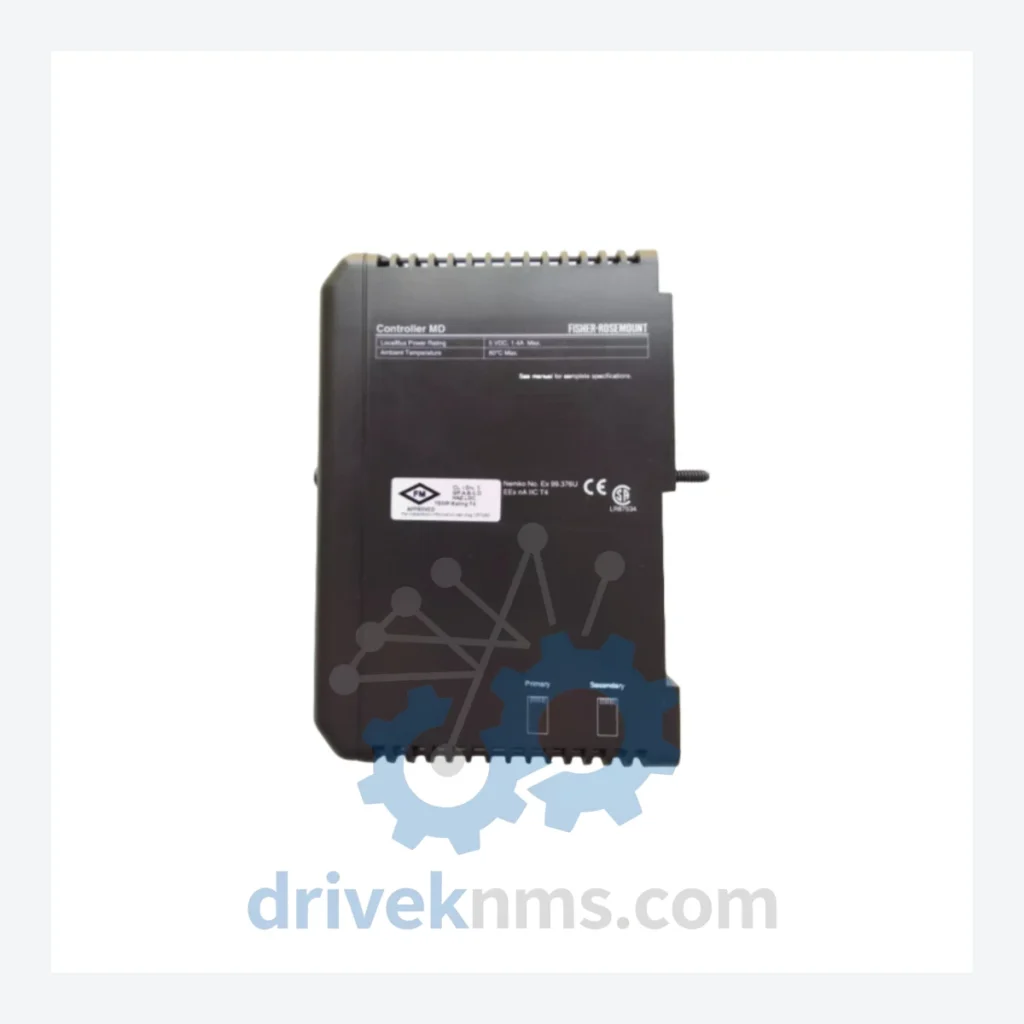

Emerson Fisher DeltaV Control Valve Assembly Modules: KJ3102X1-BE1 12P2703X022 VE4013S2B1

Technical Dossier

Product Details And Specifications

Emerson Fisher DeltaV Series: Comprehensive Control Valve Assembly Range and Technical Overview

The Emerson Fisher DeltaV control valve assembly series occupies a dominant position in global heavy industry automation infrastructure. Deployed across petrochemical complexes, nuclear power stations, offshore oil platforms, and large-scale refinery operations, the DeltaV-integrated Fisher valve assemblies serve as the final control element in distributed control system (DCS) architectures. The combination of Fisher valve bodies with DeltaV SIS and DeltaV control modules enables deterministic process control with SIL 2/3 compliance, making this series the default specification in EPC contractor standards for critical service applications. The assembly referenced in this listing — KJ3102X1-BE1 / 12P2703X022 / VE4013S2B1 — represents a complete valve positioner and actuator sub-assembly used in modulating control loops within DeltaV-managed process units.

The Evolution of Fisher DeltaV Control Valve Architecture

The Fisher DeltaV valve assembly lineage traces to the integration of Emerson's Fisher Controls division into the DeltaV DCS platform following the consolidation of Rosemount, Fisher, and Daniel Industries under the Emerson Process Management umbrella in the late 1990s. Early-generation assemblies relied on analog 4–20 mA positioner signals interfaced through DeltaV I/O cards (KJ3001X1, KJ3002X1 series). The introduction of HART-enabled positioners (FIELDVUE DVC6000 series) allowed digital valve diagnostics over the same two-wire loop, eliminating the need for dedicated diagnostic wiring.

The transition to Foundation Fieldbus (FF) and PROFIBUS PA in the mid-2000s enabled valve assemblies to become first-class fieldbus nodes, with the DeltaV system managing them through H1 fieldbus cards (KJ3221X1, KJ3222X1). The current generation — including the KJ3102X1-BE1 controller board and VE4013S2B1 actuator sub-assembly — integrates directly with DeltaV Electronic Marshalling (CHARM I/O) and supports AMS Device Manager for predictive maintenance. Compatibility constraints exist between legacy KJ-series I/O and CHARMs-based architectures; direct substitution requires firmware validation at the DeltaV controller level.

Fisher DeltaV Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson Fisher DeltaV control valve and associated I/O ecosystem. Each entry is a discrete, orderable part number with a defined functional role.

Control Valve Positioner & Actuator Assemblies

KJ3102X1-BE1: DeltaV controller board assembly, Series 2, redundancy-capable
12P2703X022: Fisher actuator sub-assembly, spring-return, 35 in² diaphragm
VE4013S2B1: Fisher valve body assembly, globe style, 1-inch, ANSI Class 300
VE4013S1B1: Fisher valve body assembly, globe style, 1-inch, ANSI Class 150
VE4023S2B1: Fisher valve body assembly, globe style, 2-inch, ANSI Class 300
12B3271X012: Fisher actuator casing assembly, upper, Type 657
12B3272X012: Fisher actuator casing assembly, lower, Type 657
17A9016X012: Fisher diaphragm assembly, 35 in², EPDM, Type 657/667

DeltaV I/O & Controller Modules (KJ-Series)

KJ3001X1-BA1: DeltaV 8-channel AI module, 4–20 mA HART, Series 2
KJ3002X1-BA1: DeltaV 8-channel AO module, 4–20 mA HART, Series 2
KJ3011X1-BA1: DeltaV 8-channel DI module, 24 VDC, Series 2
KJ3012X1-BA1: DeltaV 8-channel DO module, 24 VDC, Series 2
KJ3221X1-BA1: DeltaV H1 Fieldbus interface card, 2-segment
KJ3222X1-BA1: DeltaV H1 Fieldbus interface card, 4-segment
KJ4001X1-BA1: DeltaV MD Plus controller, 750 I/O capacity
KJ4002X1-BA1: DeltaV MD controller, 100 I/O capacity
KJ4003X1-BA1: DeltaV SD Plus controller, redundant-capable
KJ4005X1-BA1: DeltaV SQ controller, safety instrumented system (SIS)
KJ4010X1-BA1: DeltaV power supply module, 24 VDC, 40 W
KJ4020X1-BA1: DeltaV redundant power supply module, 24 VDC

FIELDVUE Digital Valve Controllers (DVC Series)

DVC6010: FIELDVUE digital valve controller, single-acting, HART
DVC6020: FIELDVUE digital valve controller, double-acting, HART
DVC6030: FIELDVUE digital valve controller, single-acting, Foundation Fieldbus
DVC6200: FIELDVUE digital valve controller, low-profile, HART, SIL 2 capable

Sourcing Hard-to-Find & Obsolete Fisher DeltaV Parts

DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished KJ-series and Fisher valve assembly components sourced from decommissioned DCS panels and certified surplus channels. For end-users operating DeltaV systems under long-term service agreements (LTSA) or managing brownfield plant extensions, DriveKNMS provides:

Quality Control for the Fisher DeltaV Control Valve Assembly Range

Control valve assemblies present specific verification challenges distinct from standard I/O modules. DriveKNMS applies the following test protocol to all Fisher DeltaV valve assembly components prior to dispatch:

• Positioner bench calibration: Each DVC-series positioner is bench-tested against a calibrated 4–20 mA source. Travel calibration, zero/span, and split-range configuration are verified per Fisher instruction manual D103605X012.
• Actuator pressure integrity: Diaphragm assemblies (including 17A9016X012) are pressure-tested at 1.5× rated bench set pressure. Casing welds and stem packing are inspected for leakage.
• Valve body flow coefficient verification: Cv values are cross-checked against Fisher sizing data. Seat leakage class (ANSI/FCI 70-2) is verified for shut-off service components.
• KJ-series board functional test: Controller and I/O boards (KJ3102X1-BE1, KJ3001X1, KJ3002X1, etc.) are powered in a live DeltaV test rack. Channel-by-channel I/O verification is performed. HART communication is confirmed on all analog channels.
• Firmware version logging: All controller modules are documented with firmware revision prior to shipment to ensure compatibility with the customer's DeltaV system version.
