Emerson HD1 Series Modules - HD11010-3A

Technical Dossier

Product Details And Specifications

Emerson HD1 Series Technical Notes

The Emerson HD1 Series represents a core component family within Emerson's legacy distributed control system (DCS) infrastructure, deployed extensively across global heavy industry verticals including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and large-scale chemical processing plants. Originally developed under the Fisher-Rosemount lineage prior to Emerson's consolidation of its process automation brands, the HD1 Series established a standardized backplane architecture that allowed modular expansion of control, I/O, and communication functions within a single rack chassis. Installed base counts for this series remain significant in facilities commissioned between the late 1980s and early 2000s, where full DCS migration is cost-prohibitive and lifecycle extension is the preferred operational strategy.

The Evolution of HD1 Series Architecture

The HD1 Series was introduced as part of Emerson's (then Fisher Controls / Rosemount) modular DCS platform targeting mid-to-large process industries. Early revisions of the architecture relied on a proprietary parallel backplane bus for inter-module communication, with dedicated slots for power, CPU, and I/O modules. Subsequent hardware revisions introduced improved noise immunity for the backplane bus, extended operating temperature ranges, and enhanced diagnostics via onboard LED status arrays.

As Emerson transitioned its DCS portfolio toward the DeltaV platform through the late 1990s and 2000s, the HD1 Series entered a maintenance-only lifecycle phase. No new firmware development has been issued for the majority of HD1 modules since approximately 2008–2012, depending on the specific model. Compatibility between early-revision and late-revision HD1 modules within the same chassis is generally maintained at the hardware level, but firmware version mismatches can cause communication faults on the backplane bus — a critical consideration for mixed-revision spare part sourcing.

For facilities still operating HD1-based control systems, the primary engineering challenge is sourcing functionally equivalent replacement modules that match both the hardware revision and firmware revision of the installed unit. DriveKNMS maintains revision-level traceability records for HD1 Series inventory to address this requirement.

HD1 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Emerson HD1 Series. Each entry reflects the module's primary functional classification within the DCS architecture.

Charging & Power Modules

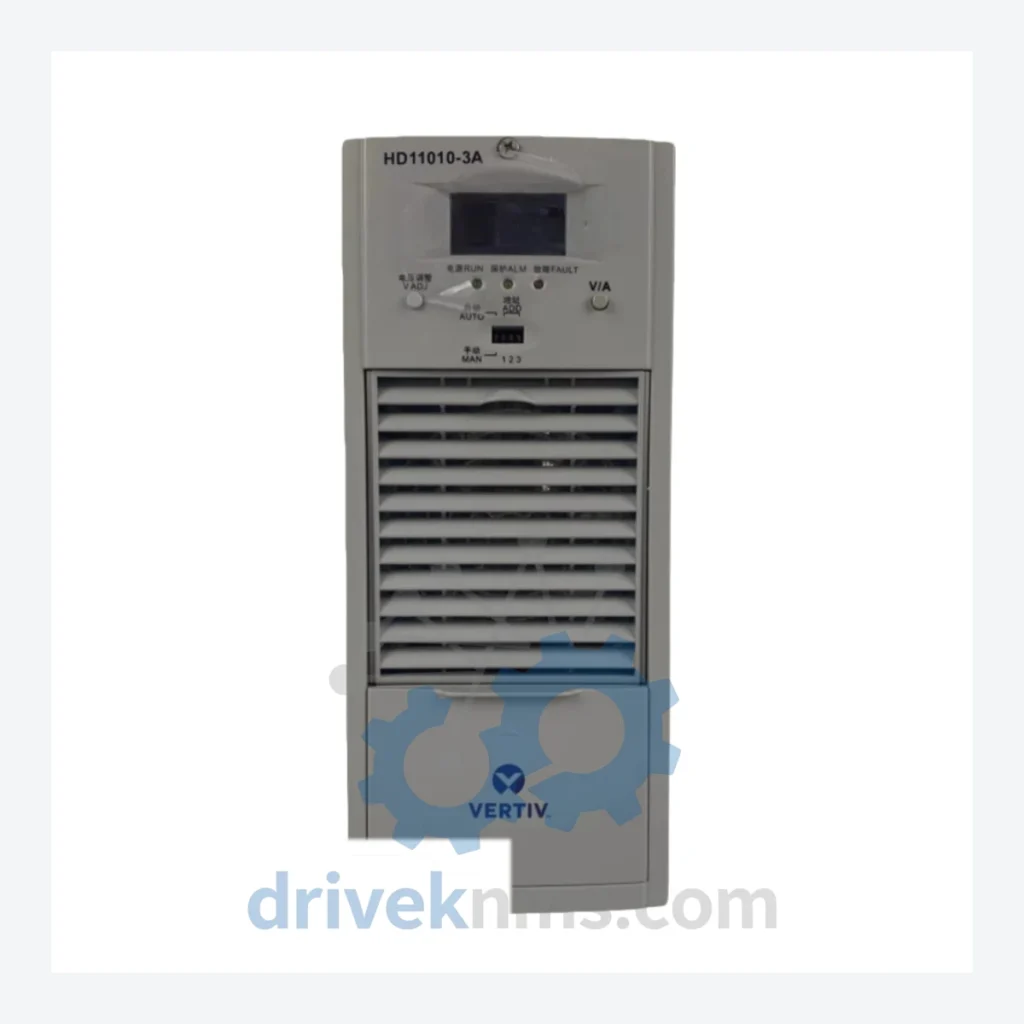

• HD11010-3A: Battery charging module, 24 VDC output, rack-mount form factor
• HD11010-2A: Charging module, earlier revision, reduced output tolerance spec
• HD11010-4A: Charging module, enhanced thermal management revision
• HD11020-1A: Dual-redundant power supply module, HD1 rack chassis
• HD11020-2A: Power supply module, revised inrush current limiting circuit

CPU & Controller Modules

• HD11001-1A: Primary controller module, 16 MHz processor, 512 KB SRAM
• HD11001-2A: Controller module, expanded memory revision, 1 MB SRAM
• HD11001-3A: Controller module, enhanced watchdog timer and diagnostics
• HD11002-1A: Redundant controller module, hot-standby failover capable

Analog Input (AI) Modules

• HD11030-1A: 8-channel analog input, 4–20 mA, 12-bit resolution
• HD11030-2A: 8-channel analog input, HART protocol pass-through capable
• HD11031-1A: 16-channel analog input, multiplexed, 4–20 mA

Digital Input (DI) Modules

• HD11040-1A: 16-channel digital input, 24 VDC, isolated
• HD11040-2A: 32-channel digital input, 24 VDC, high-density form factor

Digital Output (DO) Modules

• HD11050-1A: 16-channel digital output, relay contact, 2A per channel
• HD11050-2A: 16-channel digital output, solid-state, 24 VDC

Communication & Fieldbus Adapter Modules

• HD11060-1A: RS-485 serial communication module, Modbus RTU
• HD11060-2A: FOUNDATION Fieldbus H1 communication adapter
• HD11061-1A: Profibus DP communication module, 12 Mbps

Quality Control for the HD1 Series Range

• Visual and physical inspection: Board-level examination for corrosion, capacitor degradation, solder joint integrity, and connector pin condition. Backplane edge connectors are inspected under magnification for wear and oxidation.
• Power-on functional test: Each module is powered within a compatible HD1 chassis to verify startup sequence, LED status output, and absence of fault codes.
• Communication bus verification: For CPU and communication modules, backplane bus signal integrity is verified using protocol analyzers to confirm correct data framing and timing margins.
• Analog channel calibration check: AI and AO modules are tested against calibrated reference signals across the full 4–20 mA range to verify channel accuracy within OEM specification.
• Burn-in cycle: Selected modules undergo a 48-hour powered burn-in cycle to screen for latent component failures prior to shipment.
• Revision documentation: Hardware revision codes are recorded and included with shipment documentation to support customer revision-matching requirements.
