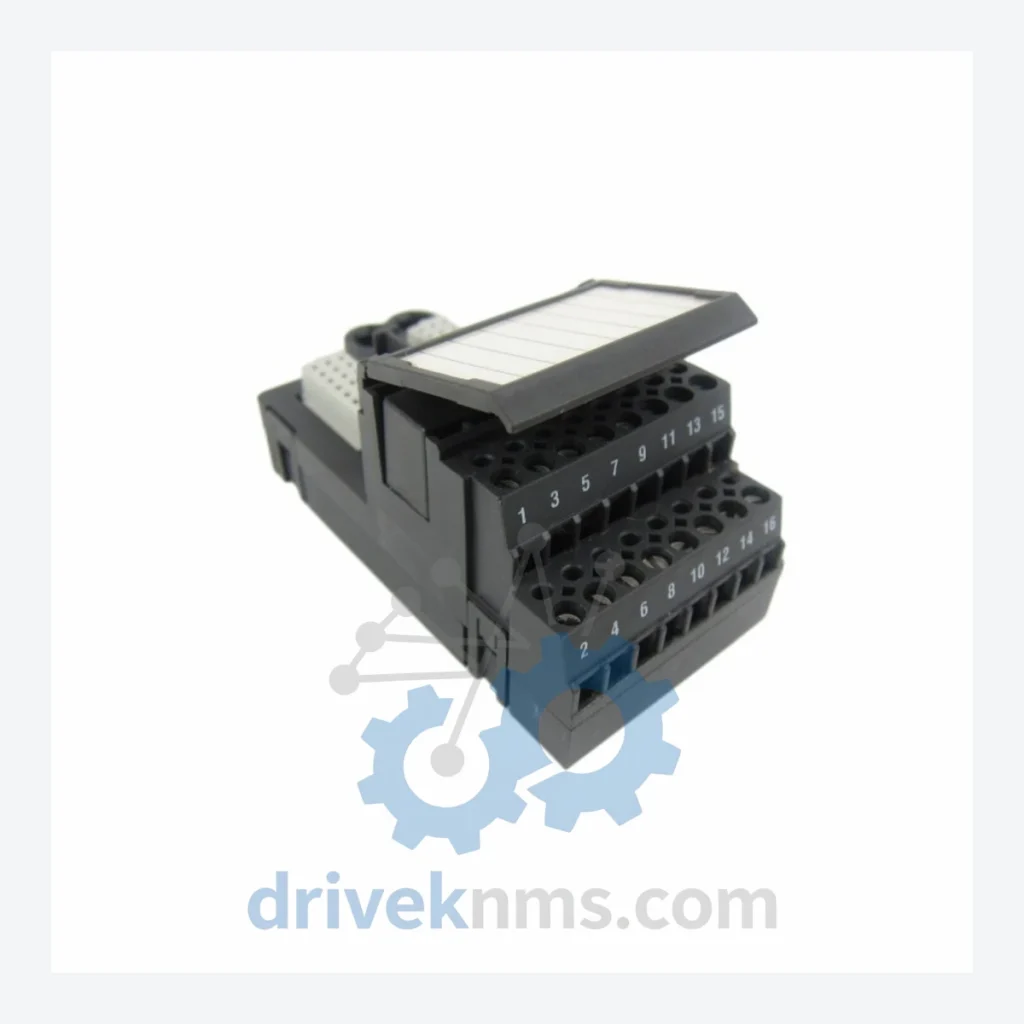

Emerson KC4011X1 Modules: KC4011X1-BA1 12P6709X032 Terminal Block

Technical Dossier

Product Details And Specifications

Emerson KC4011X1 Series: Comprehensive Module Range and Technical Overview

The Emerson KC4011X1 series terminal block assemblies are field-proven passive interconnect components deployed across global heavy industry installations, including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. These terminal block modules serve as the critical signal interface layer between field instrumentation and Emerson's process control backplane infrastructure — most commonly within PROVOX and legacy DeltaV marshalling architectures. Their standardized form factor and robust screw-clamp termination design have made them a long-term staple in facilities where control system uptime is measured in decades, not years. The KC4011X1 family supports both analog and discrete signal types, and its modular design allows for targeted replacement without full marshalling cabinet overhaul, a key factor in lifecycle cost management for aging DCS installations.

The Evolution of KC4011X1 Architecture

The KC4011X1 terminal block series traces its lineage to Emerson's PROVOX distributed control system, introduced in the early 1980s as one of the first commercially scalable DCS platforms for continuous process industries. The KC-prefix designation identifies components within the PROVOX I/O marshalling subsystem, where terminal blocks served as the physical demarcation point between field wiring and system I/O cards. Early variants used single-row screw termination with limited surge protection. As the PROVOX platform matured through the late 1980s and into the 1990s, Emerson introduced enhanced variants with improved insulation displacement contacts and higher-density configurations to accommodate expanding I/O counts without increasing cabinet footprint.

With the commercial introduction of DeltaV in 1996, Emerson began a phased migration strategy that maintained backward-compatible marshalling interfaces, allowing KC4011X1-series terminal blocks to remain in service alongside newer Electronic Marshalling (CHARM) technology. By the 2010s, the KC4011X1 series entered a mature/end-of-active-production phase. Emerson officially transitioned support to DeltaV CHARM I/O and the Smart Wiring system. However, the installed base of PROVOX and early DeltaV systems running KC4011X1 terminal blocks remains substantial globally, creating sustained demand for spare and replacement units. Facilities operating under long-term maintenance contracts or regulatory freeze requirements (common in nuclear and pharmaceutical sectors) cannot perform arbitrary platform migrations, making original-specification spare parts a non-negotiable operational requirement.

KC4011X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson KC4011X1 terminal block and associated marshalling interface family. Each entry reflects a distinct functional variant used in PROVOX and compatible DCS marshalling applications:

KC4011X1-BA1 12P6709X032: Standard screw-clamp terminal block assembly, 12-position, field wiring interface for analog I/O marshalling.
KC4011X1-BA2: Dual-row terminal block variant, increased density configuration for high I/O count marshalling panels.
KC4011X1-CA1: Terminal block with integrated surge protection, designed for field loops exposed to lightning or high-voltage transients.
KC4011X1-DA1: Discrete input terminal block, 24 VDC compatible, used in digital signal marshalling applications.
KC4011X1-EA1: Analog output terminal block, 4–20 mA loop-powered, for control valve and positioner wiring interfaces.
KC4011X1-FA1: Thermocouple input terminal block with cold junction compensation contacts, for temperature measurement loops.
KC4011X1-GA1: RTD input terminal block, 3-wire and 4-wire configuration support, for precision temperature measurement.
KC4011X1-HA1: High-density terminal block, 24-position, for compact marshalling cabinet installations.
KC4011X1-JA1: Intrinsically safe terminal block, ATEX/IECEx rated, for Zone 1 hazardous area field wiring.
KC4011X1-KA1: Fused terminal block assembly, individual channel fusing for field loop protection.
KC4011X1-LA1: Jumper-configurable terminal block, allows field-side common bussing without additional wiring.
KC4011X1-MA1: Grounding terminal block, dedicated PE (protective earth) termination for shielded cable drain wires.
KC4011X1-NA1: Disconnect terminal block with test point, allows loop isolation without field wiring removal.
KC4011X1-PA1: Power distribution terminal block, 24 VDC bus distribution for field device power within marshalling panels.
KC4011X1-RA1: Relay output terminal block, SPDT contact configuration, for discrete output signal switching.
12P6709X032: Spare/replacement sub-assembly reference for KC4011X1-BA1, used in Emerson service and repair documentation.

Sourcing Hard-to-Find & Obsolete KC4011X1 Parts

The KC4011X1 series has been in end-of-active-production status for an extended period. Emerson's official channels no longer stock the full range of KC4011X1 variants as new-manufacture units. For facilities operating PROVOX or legacy DeltaV marshalling systems, this creates a critical supply gap — particularly during unplanned maintenance events where lead times for alternatives are operationally unacceptable.

DriveKNMS maintains a dedicated inventory program for obsolete and hard-to-find Emerson PROVOX and DeltaV marshalling components, including the KC4011X1 terminal block family. Our sourcing network spans certified industrial surplus channels, decommissioned plant asset recovery, and verified third-party repair facilities. All units are subject to pre-shipment inspection and functional verification before dispatch. We support the following sourcing scenarios: emergency breakdown replacement with expedited shipping, scheduled maintenance kitting for annual turnaround events, long-term spares holding agreements for facilities with multi-year maintenance contracts, and cross-reference identification for obsolete part numbers where Emerson has issued supersession notices.

Quality Control for the KC4011X1 Range

Terminal block assemblies within the KC4011X1 series present specific inspection challenges due to their role as the physical interface between field wiring and system backplane signals. DriveKNMS applies a structured inspection protocol to all KC4011X1 units processed through our facility:

Mechanical Inspection: Each terminal block is inspected for screw-clamp integrity, insulation body cracks, and contact surface oxidation. Screw torque is verified against Emerson's published termination specifications. Any unit with deformed or corroded contacts is rejected.
Electrical Continuity Verification: All termination positions are tested for point-to-point continuity and isolation resistance between adjacent channels. Minimum isolation resistance threshold is 100 MΩ at 500 VDC test voltage.
Surge Protection Validation (CA1 variants): For units equipped with integrated transient voltage suppression, clamping voltage and response time are verified using a calibrated surge generator per IEC 61643-21 test methodology.
Dimensional Conformance: Mounting pitch, DIN rail clip engagement force, and connector keying are verified against Emerson's mechanical drawings to ensure drop-in compatibility with existing marshalling panel installations.
Documentation: Each unit ships with an inspection record including test date, technician ID, and measured values for traceability in regulated industries.
