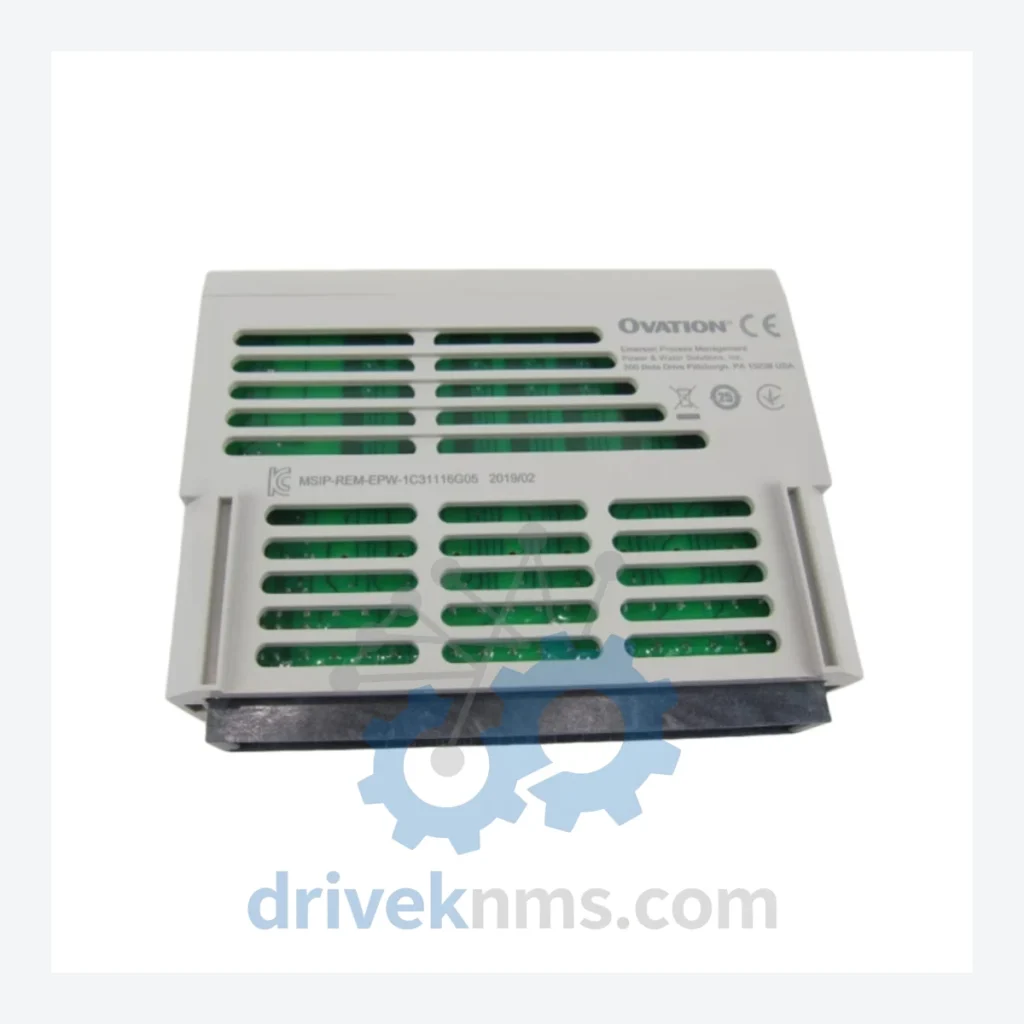

Emerson Ovation 1C31116G05 Digital Input Module

Technical Dossier

Product Details And Specifications

Emerson Ovation Series Technical Notes

The Emerson Ovation Distributed Control System (DCS) is one of the most widely deployed process automation platforms in global heavy industry. Originally developed by Westinghouse Process Control and subsequently acquired by Emerson Electric, the Ovation platform maintains a dominant installed base across nuclear power plants, fossil fuel generation facilities, chemical processing complexes, and petroleum refineries worldwide. The 1C31116G05 is a Digital Input (DI) module within the Ovation I/O subsystem, designed to acquire discrete on/off field signals and transmit them to the Ovation controller over the proprietary Ovation Data Highway. Its 32-channel architecture, optical isolation, and compatibility with the standard Ovation I/O cabinet backplane make it a critical component in both greenfield installations and long-term maintenance programs at facilities with multi-decade operational horizons.

The Evolution of Ovation Architecture

The Ovation control system traces its lineage to the WDPF (Westinghouse Distributed Processing Family) platform introduced in the 1980s. When Emerson acquired the division in 1998, the architecture was progressively modernized through three distinct generations. The first generation (WDPF/Ovation 1.x) used proprietary Q-Line I/O hardware with dedicated coaxial data highways. The second generation (Ovation 2.x, circa 2000–2008) introduced the standardized 1C31xxx I/O module family — the series to which the 1C31116G05 belongs — transitioning to a 100 Mbps Ethernet-based Ovation Data Highway while retaining backward-compatible I/O cabinet form factors. The third generation (Ovation 3.x onward) introduced enhanced cybersecurity frameworks, virtualized controller options, and expanded support for IEC 61850 substation communication, while maintaining physical and logical compatibility with the 1C31xxx I/O module range. This cross-generational hardware compatibility is a primary reason why 1C31xxx modules remain in active service at facilities that have upgraded their software platform but retained original I/O infrastructure. Procurement teams must verify the specific revision suffix (G01 through G05 and beyond) when sourcing replacements, as internal component revisions affect firmware compatibility with specific Ovation controller versions.

Ovation Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Emerson Ovation 1C31xxx I/O platform. Each entry reflects a distinct hardware function within the Ovation cabinet architecture.

Digital Input (DI) Modules

• 1C31116G05: 32-channel 24 VDC digital input module, optically isolated, standard Ovation I/O backplane.
• 1C31116G01: 32-channel digital input module, earlier hardware revision, compatible with Ovation 2.x controllers.
• 1C31116G02: 32-channel digital input module, revised internal power conditioning circuitry.
• 1C31116G03: 32-channel digital input module, updated conformal coating specification for high-humidity environments.
• 1C31116G04: 32-channel digital input module, intermediate revision with enhanced EMI filtering.
• 1C31122G01: 16-channel digital input module, 120 VAC field voltage range, for legacy AC field wiring.

Digital Output (DO) Modules

• 1C31129G01: 16-channel 24 VDC digital output module, solid-state relay outputs, 0.5 A per channel.
• 1C31129G02: 16-channel digital output module, revised output driver topology, increased surge protection.
• 1C31234G01: 8-channel high-current digital output module, 2 A per channel, for solenoid valve applications.

Analog Input (AI) Modules

• 1C31113G01: 16-channel analog input module, 4–20 mA / 0–10 V configurable, 12-bit resolution.
• 1C31113G02: 16-channel analog input module, 13-bit resolution, improved common-mode rejection ratio.
• 1C31224G01: 8-channel thermocouple input module, supports J, K, T, E, R, S, B type sensors.
• 1C31227G01: 8-channel RTD input module, supports PT100/PT1000, 3-wire and 4-wire configurations.

Analog Output (AO) Modules

• 1C31132G01: 8-channel analog output module, 4–20 mA, 12-bit resolution, loop-powered field devices.
• 1C31132G02: 8-channel analog output module, updated DAC architecture, improved linearity specification.

Controller & Communication Modules

• 1C31166G01: Ovation I/O Link adapter module, interfaces I/O cabinet backplane to Ovation Data Highway.
• 1C31157G01: Ovation controller module, primary CPU for process execution and I/O scanning.
• 5X00070G01: Ovation controller module, enhanced processing generation, supports Ovation 3.x firmware.
• 5X00106G01: Ovation redundant network interface card, dual-port Ethernet for Data Highway redundancy.

Quality Control for the Ovation Range

The Ovation 1C31xxx module series presents specific verification challenges due to its proprietary backplane communication protocol and multi-layer PCB construction. DriveKNMS applies a structured test protocol to all Ovation modules prior to shipment. Visual inspection covers component-level assessment of the backplane edge connector, optical isolator arrays, and conformal coating integrity. Functional testing is performed using Ovation-compatible test fixtures that simulate the I/O Link communication cycle, verifying that each channel responds correctly to simulated field signals across the full input voltage range. For digital input modules including the 1C31116G05, all 32 channels are individually exercised at both logic-low and logic-high thresholds. Modules exhibiting marginal response times, elevated leakage current, or communication timeout errors are quarantined and not released for sale. Firmware revision is recorded and disclosed to the customer prior to order confirmation to ensure compatibility with the target controller version.
