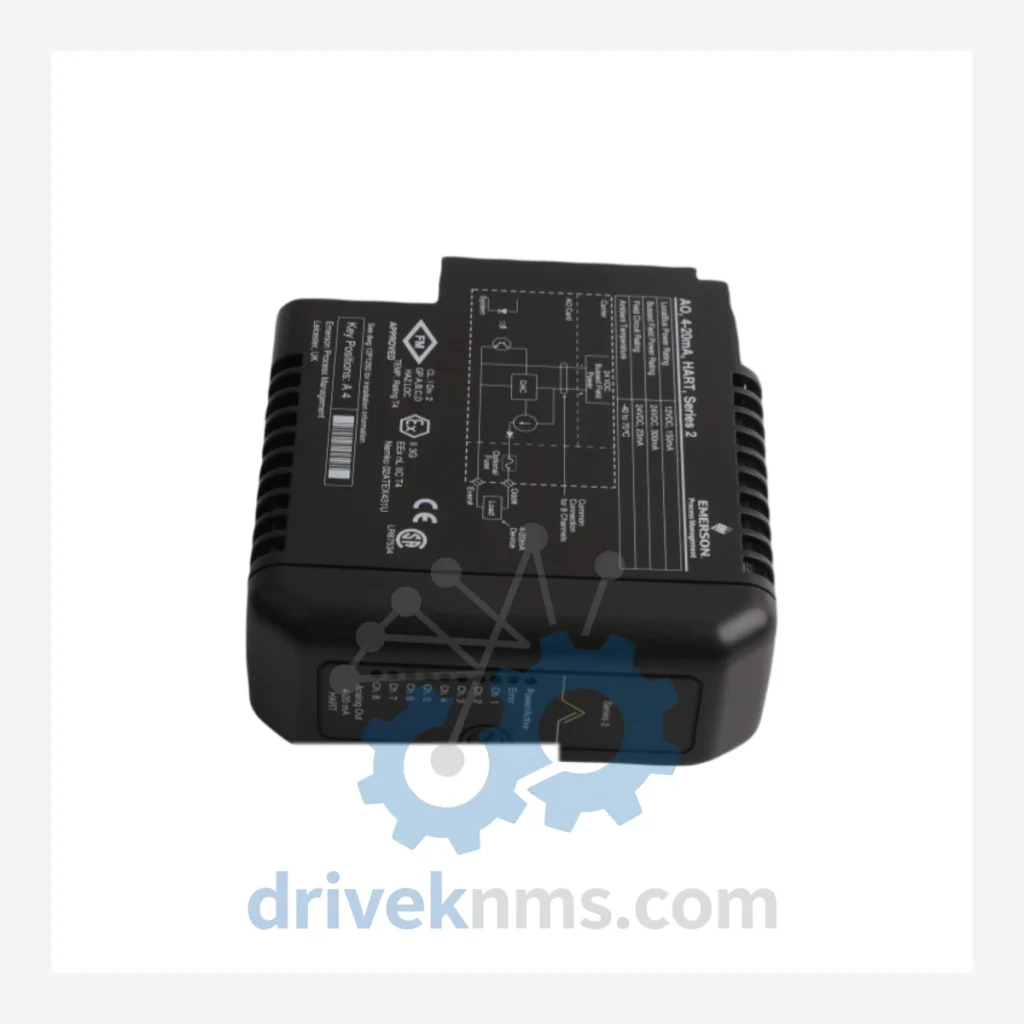

Emerson Ovation VE4035S2B1 Modules

Technical Dossier

Product Details And Specifications

Emerson Ovation Series Technical Notes

The Emerson Ovation Distributed Control System (DCS) is one of the most widely deployed process automation platforms in global heavy industry. Installed across coal-fired and nuclear power generation facilities, petroleum refineries, chemical processing plants, and water treatment infrastructure, the Ovation platform has maintained a dominant position in continuous-process control since its commercial introduction in the mid-1990s. The VE4035S2B1 is a representative module within the Ovation I/O subsystem, designed for high-density signal termination and processing within the Ovation controller cabinet architecture. Its form factor, backplane interface, and firmware compatibility are specific to the Ovation hardware ecosystem and are not interchangeable with third-party DCS hardware.

The Evolution of Ovation Architecture

The Ovation platform was developed by Westinghouse Process Control, which was subsequently acquired by Emerson Electric Co. and integrated into the Emerson Process Management division. The original Ovation 1.x architecture introduced a proprietary Ovation Network (OCN) based on Ethernet physical layer with a deterministic token-passing protocol, separating it from standard IT Ethernet. Early controller nodes used the OCR400 and OCR1100 controller modules paired with dedicated I/O drop cabinets.

With the Ovation 3.x generation, Emerson transitioned to a fully IEC 61131-3 compliant programming environment and introduced the OCR400-series replacements with enhanced memory and dual-redundancy support. The I/O subsystem was expanded to include high-density analog and digital modules with HART pass-through capability. The VE-series module numbering (e.g., VE4035S2B1, VE4036S2B1) reflects this generation's standardized I/O card format, where the prefix encodes the module family, channel count, and termination type. Compatibility between Ovation 2.x and 3.x I/O modules requires firmware version alignment and matching termination panel (TP) assemblies. Mixing module generations without firmware validation is a documented source of diagnostic faults in field installations.

As of 2024, Emerson has positioned the Ovation 3.5+ release as the current supported baseline, with extended lifecycle support contracts available for sites running 2.x hardware. Many nuclear and fossil-fuel power stations operating under long capital replacement cycles continue to rely on VE-series I/O modules, making aftermarket sourcing a critical operational requirement.

Ovation Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced modules within the Emerson Ovation I/O and controller subsystem. Each entry reflects a distinct hardware function within the Ovation cabinet architecture.

VE4035S2B1: Analog Input module, 16-channel, 4–20 mA, HART-enabled, standard termination panel interface.
VE4036S2B1: Analog Input module, 16-channel, thermocouple/RTD input, cold junction compensation integrated.
VE4046S2B1: Analog Output module, 8-channel, 4–20 mA, HART pass-through, loop-powered configuration.
VE4001S2T1B1: Digital Input module, 32-channel, 24 VDC, isolated, high-speed scan rate for protective relay interfacing.
VE4002S2T1B1: Digital Output module, 32-channel, 24 VDC sourcing, solid-state relay output, short-circuit protected.
VE4003S2T1B1: Digital Input module, 32-channel, 120 VAC, optically isolated, for field device status monitoring.
VE4004S2T1B1: Digital Output module, 16-channel, 120 VAC, triac output, for solenoid and actuator control.
VE4005S2T1B1: Pulse Input module, 8-channel, frequency measurement up to 50 kHz, for turbine speed and flow metering.
VE4007S2T1B1: Resistance Temperature Detector (RTD) Input module, 8-channel, 2/3/4-wire PT100/PT1000 compatible.
VE4008S2T1B1: Thermocouple Input module, 8-channel, types J/K/T/E/R/S/B, open-circuit detection per channel.
VE4009S2T1B1: Analog Input module, 8-channel, ±10 V / 0–10 V voltage input, for position transducer interfacing.
VE4010S2T1B1: Analog Output module, 4-channel, ±10 V voltage output, for electro-hydraulic valve positioner control.
VE4011S2T1B1: Serial Communications module, RS-232/RS-485, Modbus RTU master/slave, for third-party device integration.
VE4012S2T1B1: PROFIBUS DP Communications Adapter, Class 1 master, up to 125 slave nodes, 12 Mbps max baud.
VE4013S2T1B1: DeviceNet Communications Adapter, scanner mode, 64-node capacity, for motor control center integration.
VE4014S2T1B1: Ovation Controller Module (OCR400-series compatible), dual-redundancy capable, 256 MB application memory.
VE4015S2T1B1: Power Supply module, 24 VDC, 10 A, redundant-capable, for I/O drop cabinet power distribution.
5X00070G01: Ovation I/O Termination Panel, standard density, compatible with VE4035-series analog input modules.
5X00119G01: Ovation Redundant Controller Backplane, 14-slot, for OCR400 and VE-series controller cards.

Sourcing Hard-to-Find & Obsolete Ovation Parts

A significant portion of the global Ovation installed base operates on hardware that Emerson has transitioned to limited or end-of-life support status. Nuclear power facilities in particular face regulatory constraints that prevent rapid platform migration, creating sustained demand for VE-series I/O modules, termination panels, and controller backplanes that are no longer available through standard OEM distribution channels.

Quality Control for the Ovation Range

Ovation I/O modules present specific test challenges due to their proprietary backplane communication protocol and the tight coupling between module firmware and the Ovation Controller Node (OCN) software version. DriveKNMS applies a structured validation process to all Ovation modules prior to shipment.

Each analog input and output module (including the VE4035S2B1) undergoes signal accuracy verification across the full 4–20 mA range using calibrated current sources and measurement references traceable to national standards. HART communication integrity is confirmed via a HART modem interface at both primary variable and device descriptor levels. Digital I/O modules are tested for channel isolation resistance, output drive current, and response latency under simulated field load conditions. Communications adapter modules (PROFIBUS, DeviceNet, Modbus) are validated using protocol analyzers to confirm frame integrity, address resolution, and error recovery behavior. Backplane connector integrity is inspected under magnification for pin deformation, oxidation, and solder joint condition. Modules exhibiting any anomaly in electrical or protocol testing are quarantined and not released for sale.
