Emerson PR6423 Eddy Current Sensor Modules — PR6423/015-030

Technical Dossier

Product Details And Specifications

Emerson PR6423 Series: Comprehensive Module Range and Technical Overview

The Emerson (formerly Epro) PR6423 series is a family of eddy current proximity sensors engineered for continuous, non-contact vibration and displacement measurement in rotating machinery. These sensors are deployed across the global heavy process industries — petrochemical refineries, nuclear power stations, offshore platforms, LNG terminals, and large-scale chemical complexes — where shaft vibration monitoring is a mandatory safety and reliability function. The PR6423 series operates as the sensing element within the Emerson Machinery Health Management ecosystem, interfacing directly with CON021, CON041, and CON011 signal conditioning modules to deliver 4–20 mA or voltage outputs to DCS and safety instrumented systems (SIS). Installed base spans hundreds of thousands of measurement points worldwide, making this series one of the most referenced eddy current probe families in industrial condition monitoring.

The Evolution of PR6423 Architecture

The PR6423 series traces its lineage to the Bently Nevada and Epro sensor platforms, both of which were absorbed into the Emerson Automation Solutions portfolio. Early-generation PR6423 probes used a fixed-cable, single-piece construction with a 5 mm or 8 mm tip diameter and were calibrated exclusively for AISI 4140 steel targets. Subsequent revisions introduced modular extension cable compatibility (TQ020 series), allowing field-replaceable cable assemblies without recalibration of the probe body — a critical improvement for installations in confined turbine bearing housings.

The architecture is based on a passive LC oscillator circuit embedded in the probe tip. The driver/oscillator electronics are housed in a separate proximitor (CON021/CON041), connected via a coaxial extension cable. This distributed topology isolates the active electronics from high-temperature zones, extending sensor service life in environments exceeding 120°C ambient. Later variants introduced EMI-hardened cable shielding and ATEX/IECEx Zone 1 certification, enabling deployment in explosive atmospheres without additional barriers. The PR6423 series is now in a mature/end-of-active-production phase; Emerson's current active catalog references the PR9268 and PR9376 series as functional successors. However, the installed base of PR6423 sensors remains extensive, and direct form-fit-function replacements are the primary procurement requirement for maintenance operations.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced part numbers within the PR6423 eddy current sensor series. Each entry reflects a distinct cable length, connector, or tip configuration variant:

PR6423/000-000: 5 mm probe, 0.5 m integral cable, standard tip, no connector
PR6423/001-000: 5 mm probe, 1.0 m integral cable, standard tip
PR6423/002-000: 5 mm probe, 2.0 m integral cable, standard tip
PR6423/003-000: 5 mm probe, 3.0 m integral cable, standard tip
PR6423/005-000: 5 mm probe, 5.0 m integral cable, standard tip
PR6423/008-000: 8 mm probe tip diameter, 1.0 m integral cable
PR6423/010-000: 5 mm probe, 10.0 m integral cable, standard tip
PR6423/010-030: 5 mm probe, 10.0 m cable, ATEX Zone 1 certified variant
PR6423/015-000: 5 mm probe, 15.0 m integral cable, standard tip

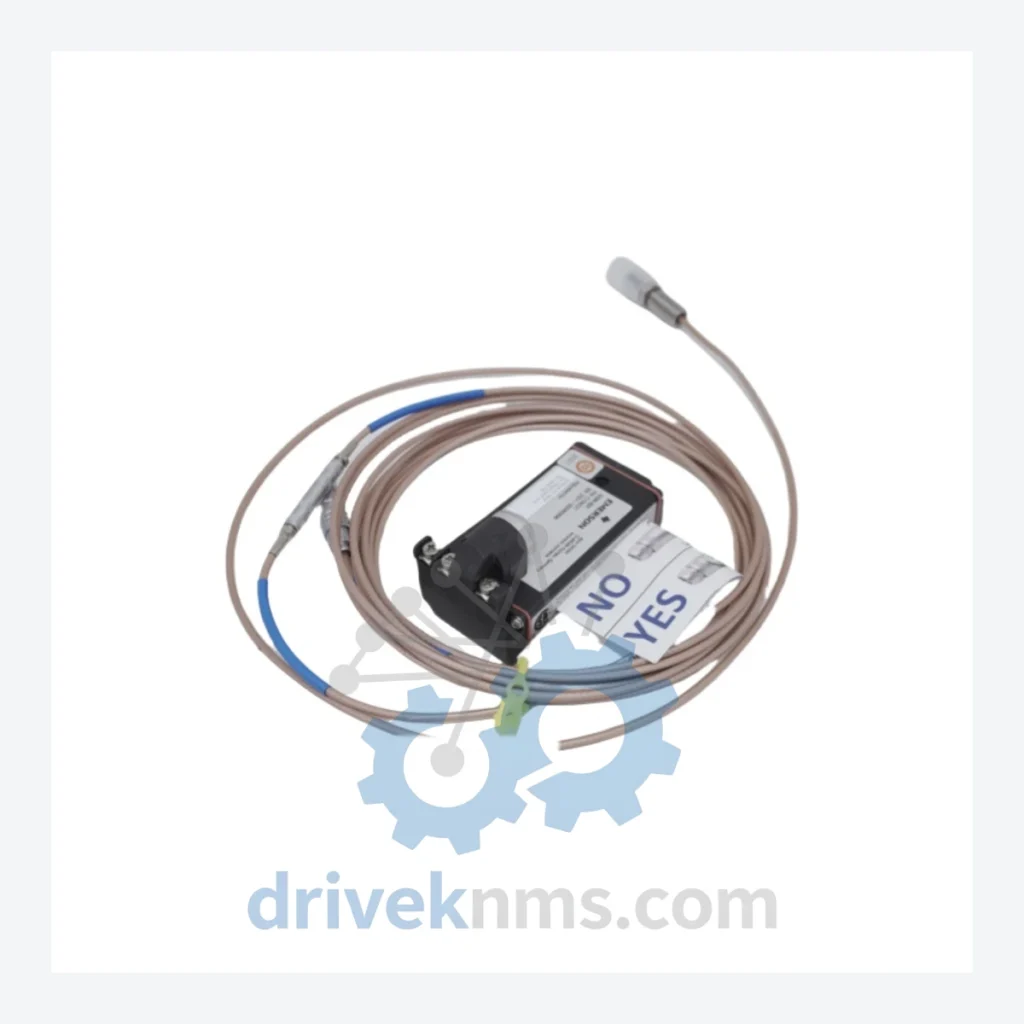

PR6423/015-030: 5 mm probe, 15.0 m cable, ATEX/IECEx Zone 1 certified, EMI-hardened shielding — the subject SKU of this listing
PR6423/020-000: 5 mm probe, 20.0 m integral cable, standard tip
PR6423/020-030: 5 mm probe, 20.0 m cable, ATEX Zone 1 certified variant
PR6423/025-000: 5 mm probe, 25.0 m integral cable, standard tip
PR6423/030-000: 5 mm probe, 30.0 m integral cable, standard tip
PR6423/030-030: 5 mm probe, 30.0 m cable, ATEX Zone 1 certified, high-temperature sheath
PR6423/050-000: 5 mm probe, 50.0 m integral cable, long-run installation variant
PR6423/100-000: 5 mm probe, 100.0 m integral cable, remote machinery monitoring variant

Sourcing Hard-to-Find & Obsolete PR6423 Parts

The PR6423 series has transitioned from active production to a maintained spare parts status. OEM lead times for specific cable-length variants — particularly ATEX-certified configurations such as the PR6423/015-030 — routinely extend to 16–26 weeks through standard distribution channels. DriveKNMS maintains a dedicated inventory of PR6423 series sensors sourced from decommissioned plant assets, certified overstock, and authorized repair channels. All units are subject to pre-shipment functional verification. For end-users operating legacy turbine monitoring systems built around the CON021 or CON041 proximitor architecture, DriveKNMS provides direct form-fit-function replacements without requiring system reconfiguration. Procurement teams managing planned shutdowns or emergency maintenance windows are encouraged to submit consolidated part lists for batch quotation to minimize per-unit lead time.

Quality Control for the PR6423 Range

Each PR6423 sensor processed by DriveKNMS undergoes a structured verification protocol specific to eddy current probe technology. The probe tip inductance is measured at 25°C and compared against the factory calibration curve for AISI 4140 steel targets. Cable continuity and insulation resistance are verified across the full cable length using a 500 V DC megohmmeter, with a minimum acceptance threshold of 100 MΩ. The coaxial cable characteristic impedance is checked to confirm compatibility with the designated CON021/CON041 proximitor input. For ATEX-certified variants (suffix -030), enclosure integrity and cable gland torque specifications are inspected against IECEx documentation. Sensors that pass all verification stages are issued a DriveKNMS inspection record and shipped with original or equivalent technical documentation.
