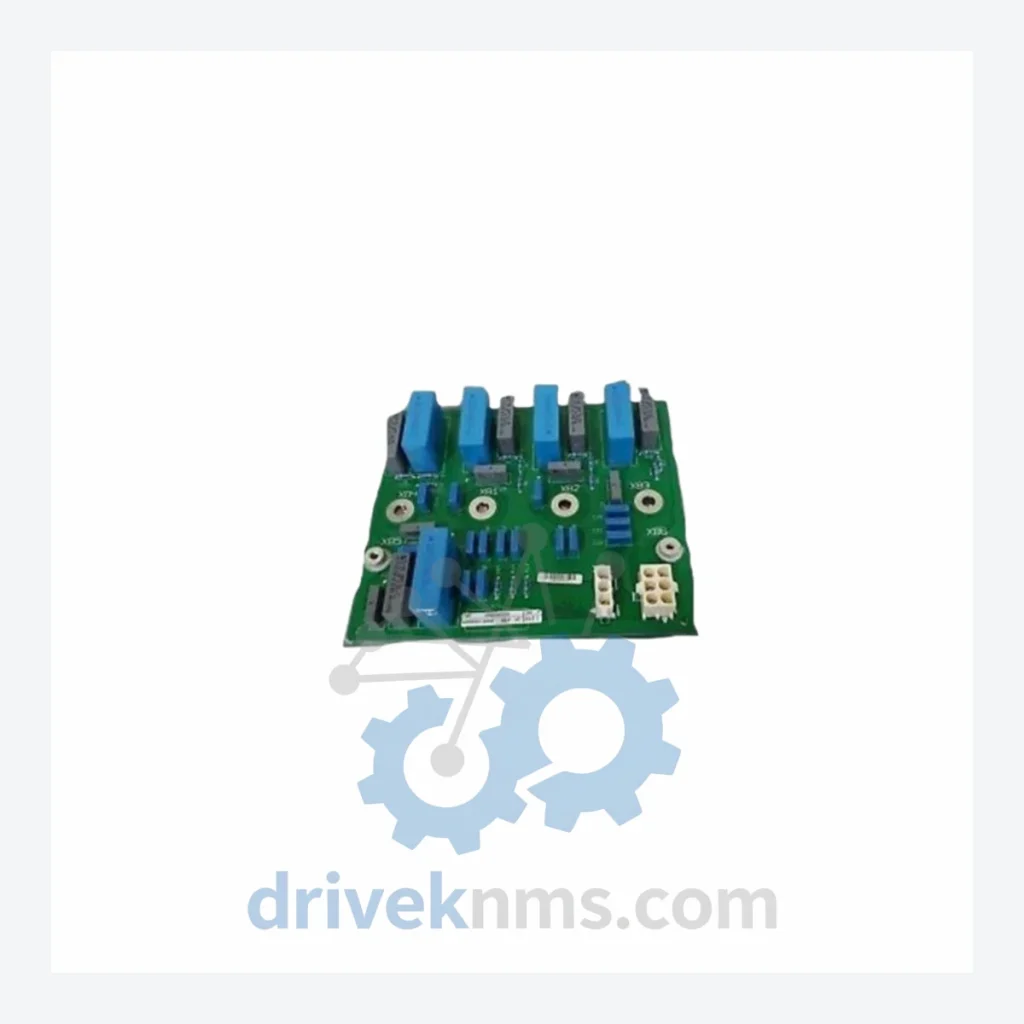

FIAT 3402090500 / 640-34020904XD-1EA / 640-34020904XD-2EA PCB Board Modules

Technical Dossier

Product Details And Specifications

FIAT 640-34020904XD Series: Comprehensive Module Range and Technical Overview

The FIAT 640-34020904XD series PCB boards are control and interface assemblies deployed across heavy industrial environments including petrochemical plants, automotive manufacturing lines, power generation facilities, and continuous-process refineries. The base assembly reference 3402090500 serves as the primary board identifier, with variant suffixes -1EA and -2EA denoting single-unit and dual-unit packaging configurations respectively. These boards occupy a critical position in legacy DCS and PLC backplane architectures where field replacement without full system migration is the operational standard.

The Evolution of 640-34020904XD Architecture

The 640-34020904XD board lineage traces to FIAT's industrial automation division, which produced embedded control PCBs for multi-axis drive systems and process controllers from the 1980s through the early 2000s. Early revisions of the 3402090500 assembly used through-hole component technology with discrete logic ICs and analog signal conditioning circuits. Mid-generation revisions introduced surface-mount components, improving thermal tolerance and vibration resistance for installation in proximity to high-current drive cabinets.

The -1EA and -2EA suffix variants reflect procurement packaging rather than functional differences — both carry identical circuit topology. Compatibility with predecessor boards in the 640-340209XX family is maintained at the connector and signal-level, though firmware or EPROM versions may differ between production runs. Integrators replacing boards in active systems must verify revision markings on the PCB silkscreen before substitution. The series has entered the mature/end-of-life phase; FIAT no longer manufactures these assemblies under active production orders, making aftermarket sourcing the primary supply channel for maintenance operations.

640-34020904XD Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented range of FIAT 640-340209XX family PCB assemblies and associated modules. Each entry reflects a distinct functional role within the control architecture:

3402090500: Base PCB assembly, primary control board reference for 640-34020904XD series
640-34020904XD-1EA: Single-unit packaged variant of 3402090500, standard field replacement unit
640-34020904XD-2EA: Dual-unit packaged variant, supplied as matched pair for redundant configurations
640-34020901XD: Earlier revision board, analog I/O signal conditioning, predecessor to -04XD
640-34020902XD: Intermediate revision, added digital I/O expansion header, compatible backplane
640-34020903XD: Pre-production revision with modified power rail layout, limited field deployment
640-34020905XD: Successor variant with updated EPROM socket, extended temperature rating
640-34020906XD: Communication interface variant, RS-422/RS-485 bus adapter integrated
640-34020907XD: High-density I/O variant, 32-channel digital input configuration
640-34020908XD: Analog output board, 4–20 mA signal generation, 8-channel
640-34020909XD: CPU daughter board, embedded microcontroller for local loop control
640-34020910XD: Power supply interface board, DC bus conditioning and protection
640-34020911XD: Encoder feedback board, quadrature input processing for servo axes
640-34020912XD: Fieldbus gateway board, PROFIBUS-DP slave interface
640-34020913XD: Relay output board, 16-channel dry contact, 24 VDC coil
640-34020914XD: Diagnostic and status display board, LED array and fault register interface
640-34020915XD: Memory expansion board, SRAM and EPROM extension for CPU modules
640-34020916XD: Thermocouple input board, 8-channel, Type J/K/T with cold junction compensation
640-34020917XD: RTD input board, 4-channel, PT100/PT1000 resistance measurement

Sourcing Hard-to-Find & Obsolete 640-34020904XD Parts

DriveKNMS maintains a dedicated inventory program for end-of-life FIAT PCB assemblies including the full 640-340209XX family. As FIAT's industrial automation division has ceased active production of these boards, procurement through standard distribution channels is no longer viable. DriveKNMS sources units through decommissioned equipment recovery, controlled factory surplus, and verified third-party industrial estates.

All units in the 640-34020904XD range are catalogued by revision level, date code, and component population variant. Customers requiring exact revision matches for system compatibility are advised to provide the silkscreen revision marking from the failed board. DriveKNMS can cross-reference revision history to identify functionally equivalent substitutes where exact matches are unavailable. Long-term maintenance contracts covering multi-year supply commitments are available for facilities operating FIAT-based DCS infrastructure with no planned migration to modern platforms.

Quality Control for the 640-34020904XD Range

PCB assemblies in the 640-34020904XD series undergo a structured test protocol prior to dispatch. Each board is subjected to visual inspection under magnification for solder joint integrity, component seating, and trace damage. Functional testing is performed using dedicated FIAT-compatible backplane test fixtures that replicate the electrical environment of the target system, including bus voltage levels, signal timing, and termination impedance.

Boards with integrated communication interfaces (RS-422, PROFIBUS, encoder feedback) are tested under active signal conditions to verify protocol compliance and bit-error rates. EPROM-based boards are read and verified against known-good firmware images where reference data is available. Boards that pass full functional test are issued a DriveKNMS test certificate with date, technician ID, and test result log. Units that fail functional test but retain value as component donors are segregated and documented separately.
