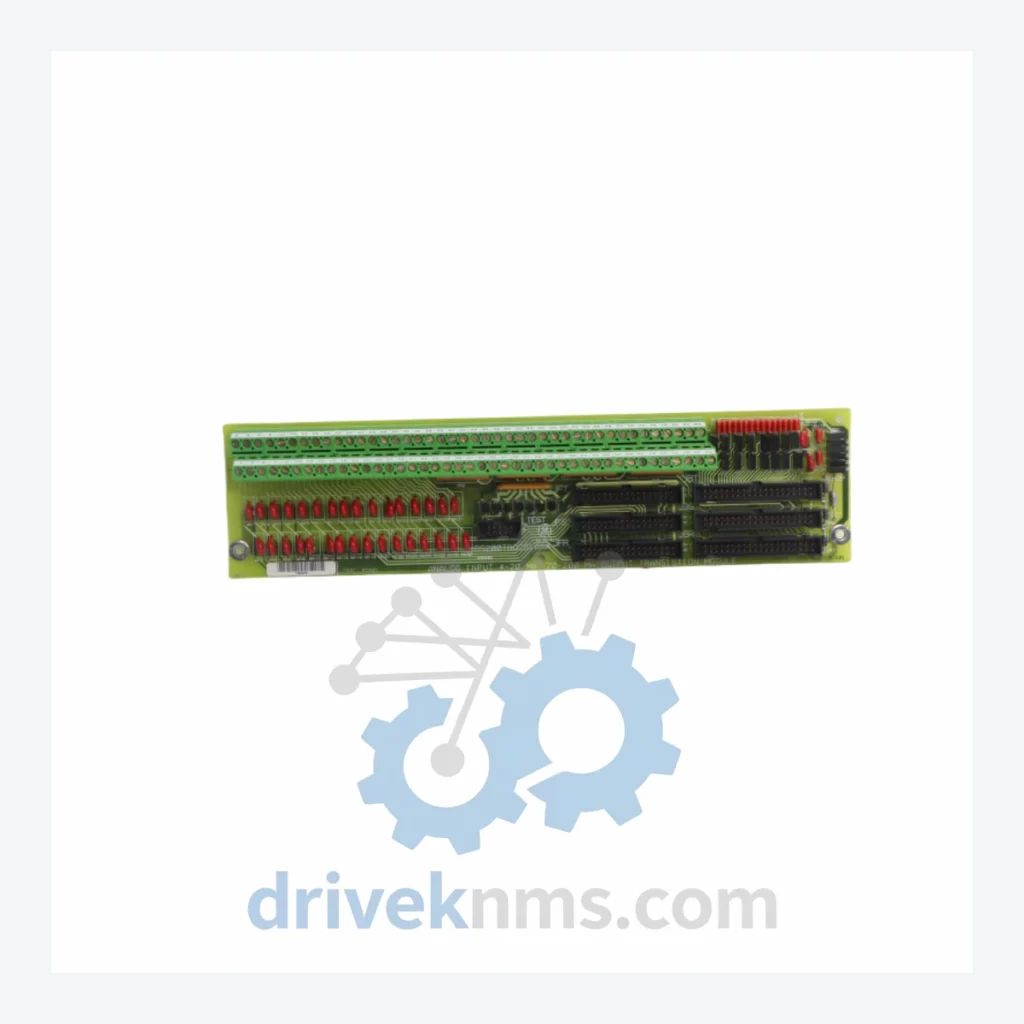

GE DS200 Series Modules: DS200TBQCG1AAA I/O Termination Board

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The GE DS200 series constitutes the core hardware layer of GE's Mark VI Turbine Control System, one of the most widely deployed distributed control platforms in global heavy industry. Installed across gas turbine power plants, combined-cycle facilities, nuclear auxiliary systems, petrochemical refineries, and offshore oil & gas platforms, the DS200 series provides the I/O termination, signal conditioning, communication, and power distribution infrastructure that underpins continuous process control. Facilities operating GE Frame 6, Frame 7, Frame 9, LM2500, LM6000, and MS-series turbines rely on DS200 hardware as the physical interface between field instrumentation and the Mark VI controller core. The series encompasses over 200 distinct board-level assemblies, each engineered to a specific functional role within the Mark VI backplane architecture.

The Evolution of DS200 Architecture

The DS200 designation was introduced alongside the Mark VI control system in the mid-1990s as GE Power's successor to the Mark V (DS3800/DS3820 series) platform. The Mark VI represented a transition from analog-dominant I/O to a fully digital, VME-bus-based architecture with redundant IONET and ARCNET communication backbones. Early DS200 boards (circa 1995–2002) were designed for single-controller simplex configurations; subsequent revisions introduced TMR (Triple Modular Redundancy) support, enabling fault-tolerant operation in critical turbine protection applications.

Between 2005 and 2012, GE released hardware revisions addressing EMI compliance, connector durability, and firmware compatibility with the Mark VIe platform. The Mark VIe (IS200/IS420 series) is the current-generation successor, but a substantial installed base of Mark VI systems remains in active service globally, creating sustained demand for DS200 spare parts. Many DS200 boards are now classified as obsolete or last-time-buy by GE, with OEM support discontinued. Third-party MRO suppliers and authorized repair centers have become the primary sourcing channel for these components.

DS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced DS200 series modules. Each entry reflects the board's primary functional role within the Mark VI system architecture.

I/O Termination Boards

• DS200TBQCG1AAA: I/O termination board for analog/discrete signal interface in Mark VI turbine control panels
• DS200TBCAG1AAA: Turbine control analog I/O termination board, supports thermocouple and RTD inputs
• DS200TBCBG1AAA: Analog termination board variant B, used in combined-cycle plant configurations
• DS200TBQDG1AAA: Discrete I/O termination board for digital input/output signal marshalling
• DS200TBASG1AAA: Analog signal termination board for speed and vibration sensor inputs
• DS200TBRAG1AAA: Relay output termination board, supports dry-contact discrete outputs for actuator control
• DS200TBCIG1AAA: Current input termination board, 4–20 mA loop-powered field device interface

CPU & Controller Boards

• DS200DCFBG1AAA: DC/DC converter and field bus interface board for Mark VI controller rack power distribution
• DS200SDCIG1AAA: Servo drive control interface board, manages electrohydraulic valve positioning signals
• DS200SLCCG1AAA: Sequence logic and control communications board for Mark VI simplex configurations
• DS200PCAAG1AAA: Process control and alarm annunciation board, interfaces with HMI alarm management systems

Communication & Network Adapters

• DS200CPCAG1AAA: Control processor communication adapter, ARCNET-based inter-controller data exchange
• DS200IOCAG1AAA: IONET communication adapter board for distributed I/O expansion in large turbine panels
• DS200DSPXG1AAA: Digital signal processor board for high-speed flame detection and combustion dynamics monitoring

Power Supply & Distribution

• DS200PSDAG1AAA: 28 VDC power supply distribution board for Mark VI I/O rack power conditioning
• DS200PSCAG1AAA: Power supply control and monitoring board, provides over-voltage and under-voltage protection
• DS200EXPSG1AAA: Expansion power supply board for high-density I/O configurations requiring additional current capacity

Sourcing Hard-to-Find & Obsolete DS200 Parts

For operators managing aging Mark VI systems, DriveKNMS provides lifecycle extension support including: direct board-level replacement for obsolete SKUs, cross-reference identification for superseded part numbers, and coordination with certified repair facilities for boards requiring component-level restoration. Customers operating under long-term service agreements (LTSAs) or managing multi-unit fleets are encouraged to submit consolidated spare parts lists for bulk availability assessment.

Quality Control for the DS200 Range

DS200 series boards present specific testing challenges due to their multi-layer PCB construction, proprietary backplane bus connectors, and firmware-dependent initialization sequences. DriveKNMS applies the following verification protocol to all DS200 inventory:

• Visual inspection: Component-level examination for capacitor degradation, connector pin damage, conformal coating integrity, and PCB trace corrosion — common failure modes in boards recovered from high-humidity or coastal plant environments.
• Backplane bus continuity test: Verification of IONET and ARCNET communication bus pin continuity using dedicated Mark VI backplane test fixtures, confirming signal path integrity before functional testing.
• Powered functional test: Where test infrastructure permits, boards are energized in a Mark VI-compatible rack environment and subjected to communication handshake verification, I/O channel scan, and firmware version confirmation.
• Revision suffix verification: DS200 part numbers include revision suffixes (e.g., G1AAA, G1BAA) that indicate hardware revision level. DriveKNMS records and discloses the exact revision suffix for each unit, as cross-revision compatibility is not guaranteed in all Mark VI configurations.
• ESD-compliant packaging: All boards are stored and shipped in anti-static bags with desiccant packs, conforming to ANSI/ESD S20.20 handling standards.
