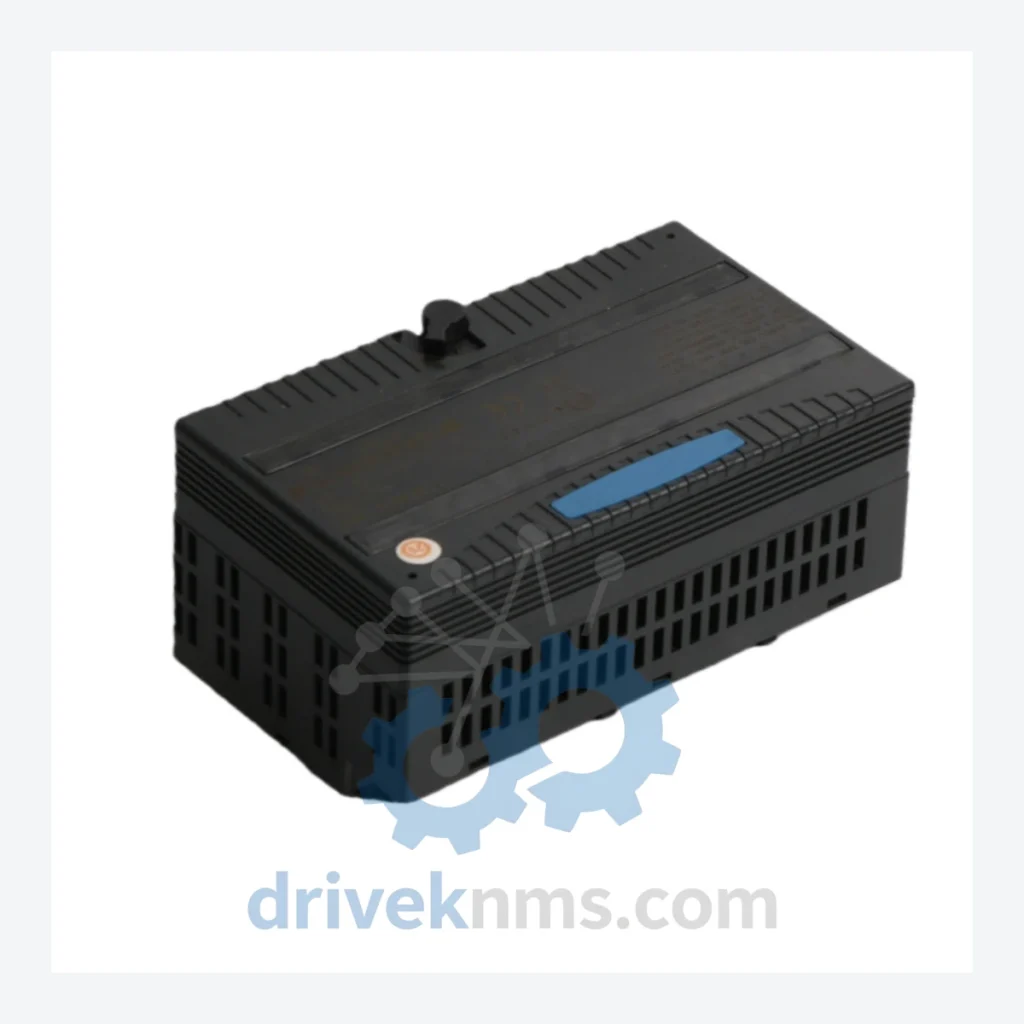

GE Fanuc VersaMax IC200 Series Modules - IC200MDL740E

Technical Dossier

Product Details And Specifications

GE Fanuc VersaMax IC200 Series Technical Notes

The GE Fanuc VersaMax IC200 series is a modular programmable logic controller (PLC) platform deployed across global heavy industry sectors including petrochemical refining, nuclear power generation, offshore oil & gas, pulp and paper, and continuous process manufacturing. Introduced in the late 1990s as a successor to the Series 90 Micro platform, the IC200 architecture established a distributed I/O standard that remains embedded in thousands of active installations worldwide. Its compact rail-mount form factor, deterministic scan cycle, and broad I/O density made it the default selection for mid-range automation projects throughout the 2000s and early 2010s. Many facilities operating IC200-based control systems have extended their operational life well beyond the original design horizon, creating sustained demand for replacement modules, spare boards, and lifecycle support services.

IC200 Full Catalog & Functionalities (SKU List)

CPU Modules

• IC200CPUE05: VersaMax CPU, 14KB user memory, serial port, no Ethernet
• IC200CPUE10: VersaMax CPU, 32KB user memory, dual serial ports, expanded I/O map
• IC200CPUE20: VersaMax CPU, 64KB user memory, Ethernet TCP/IP, web server
• IC200CPUF10: VersaMax CPU with embedded Ethernet, 32KB memory, SRTP support

Discrete Input (DI) Modules

• IC200MDL640: 120VAC discrete input, 8-point, isolated, DIN rail mount
• IC200MDL650: 24VDC discrete input, 16-point, positive logic, 3ms filter
• IC200MDL660: 24VDC discrete input, 32-point, high-density, group isolated
• IC200MDL730: 24VDC discrete input, 8-point, negative logic, diagnostic capable

Discrete Output (DO) Modules

• IC200MDL740: 24VDC discrete output, 12-point, 0.5A per point, positive logic
• IC200MDL740E: 24VDC discrete output, 12-point, enhanced diagnostics, CE marked
• IC200MDL741: 24VDC discrete output, 16-point, 0.5A per point, sourcing
• IC200MDL750: Relay output, 8-point, Form A, 2A per point, 120/240VAC
• IC200MDL760: Relay output, 16-point, Form C, mixed AC/DC load capability

Analog Input (AI) Modules

• IC200ALG230: Analog input, 4-channel, 4–20mA, 12-bit resolution
• IC200ALG240: Analog input, 8-channel, 0–10V / 4–20mA selectable, 12-bit
• IC200ALG260: Analog input, 4-channel, thermocouple/RTD, 16-bit resolution

Analog Output (AO) Modules

• IC200ALG320: Analog output, 2-channel, 4–20mA, 12-bit, loop-powered
• IC200ALG328: Analog output, 4-channel, 0–10V / 4–20mA, 12-bit resolution

Communication & Network Adapters

• IC200PBI001: PROFIBUS DP slave adapter, up to 244 bytes I/O, DIN rail
• IC200BEM002: DeviceNet slave adapter, Group 2 slave, 64 bytes I/O
