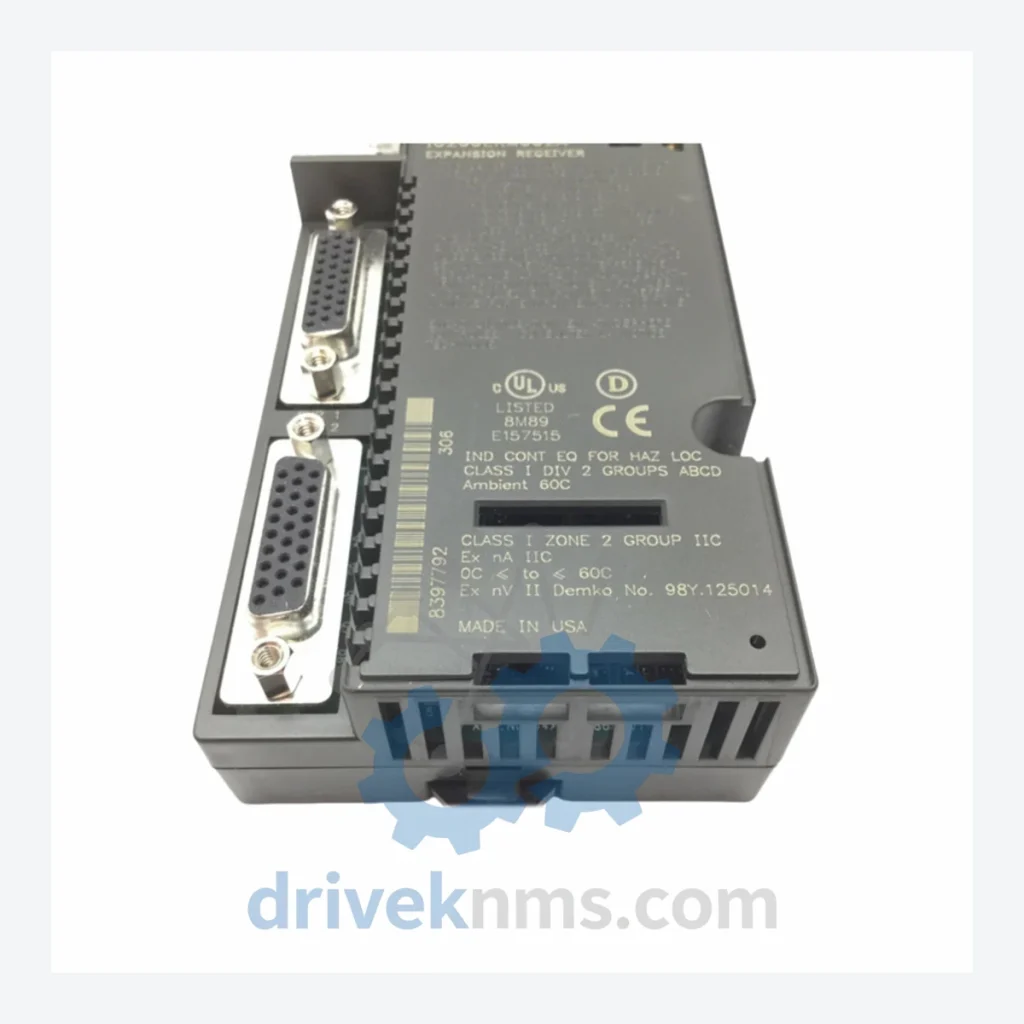

GE Fanuc VersaMax IC200ERM002 Modules

Technical Dossier

Product Details And Specifications

GE Fanuc VersaMax Series Technical Notes

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The Evolution of VersaMax Architecture

GE Fanuc introduced the VersaMax platform in the mid-1990s as a successor to the Series 90 Micro PLC line, targeting applications requiring distributed I/O expansion beyond the constraints of a single rack. The architecture is segmented into three primary subsystems: the CPU carrier (IC200CPUE05, IC200CPU001, IC200CPU002), the local expansion bus (using Expansion Transmitter/Receiver modules), and the remote I/O network (via Genius Bus or Profibus-DP adapters).

Early revisions of the expansion bus used isolated differential signaling (IC200ERM001 class). Later revisions introduced non-isolated variants — including the IC200ERM002 — optimized for cost-sensitive local rack expansion where ground isolation between racks is maintained at the panel level. The IC200ERM002 operates as the receiver end of a local expansion link, pairing with the IC200ETM001 transmitter module. This transmitter/receiver pair extends the VersaMax backplane across physically separate carrier assemblies within the same control cabinet.

VersaMax Full Catalog & Functionalities (SKU List)

The following catalog covers verified VersaMax series modules organized by functional category. Each SKU represents a distinct hardware configuration with unique electrical and firmware characteristics.

Expansion Bus Modules

IC200ERM002: Non-isolated local expansion receiver module; pairs with IC200ETM001 transmitter to extend backplane across carriers.
IC200ERM001: Isolated expansion receiver module; provides galvanic isolation between carrier assemblies for high-noise environments.
IC200ETM001: Local expansion transmitter module; source end of the IC200ERM001/002 expansion link pair.

CPU & Controller Modules

IC200CPUE05: VersaMax Micro CPU, 28-point embedded I/O, 16KB user memory, supports serial and Ethernet communications.
IC200CPU001: VersaMax CPU module, 32KB program memory, supports Genius Bus and serial I/O expansion.
IC200CPU002: VersaMax CPU module, 64KB program memory, enhanced instruction set for floating-point operations.

Digital Input Modules

IC200MDL640: 120VAC 8-point digital input module; standard industrial AC input for field device interfacing.
IC200MDL650: 120VAC 16-point digital input module; high-density AC input for panel space optimization.
IC200MDL730: 24VDC 16-point positive logic digital input module; standard DC field wiring configuration.
IC200MDL740: 24VDC 32-point positive logic digital input module; high-density DC input for large I/O counts.

Digital Output Modules

IC200MDL740: 24VDC 32-point digital output module; relay-isolated outputs for mixed-voltage field devices.
IC200MDL930: 24VDC 16-point positive logic digital output module; transistor sourcing outputs, 0.5A per point.
IC200MDL940: 24VDC 32-point positive logic digital output module; high-density transistor output for actuator-dense applications.

Analog I/O Modules

IC200ALG230: 4-channel analog input module; 4–20mA current input, 12-bit resolution, for process variable monitoring.
IC200ALG240: 8-channel analog input module; voltage/current configurable inputs, 12-bit resolution.
IC200ALG320: 2-channel analog output module; 4–20mA current output, 12-bit resolution, for control valve positioning.
IC200ALG430: 4-channel analog output module; voltage and current output configurable per channel.

Communications & Network Adapters

IC200PBI001: Profibus-DP slave adapter; connects VersaMax I/O to Profibus-DP master networks at up to 12Mbps.
IC200GBI001: Genius Bus Interface module; integrates VersaMax I/O into GE Genius Bus networks for legacy DCS compatibility.

Power Supply Modules

IC200PWR002: 24VDC input power supply module; 30W output, supports up to 8 I/O modules per carrier.
IC200PWR101: 120/240VAC input power supply module; 30W output, universal AC input for global installation.

Sourcing Hard-to-Find & Obsolete VersaMax Parts

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Quality Control for the VersaMax Range

VersaMax expansion bus modules — including the IC200ERM002 — present specific test challenges due to their dependency on active backplane communication with a paired transmitter module (IC200ETM001) and a functioning CPU carrier. DriveKNMS employs a dedicated VersaMax test bench replicating a complete operational carrier assembly.
