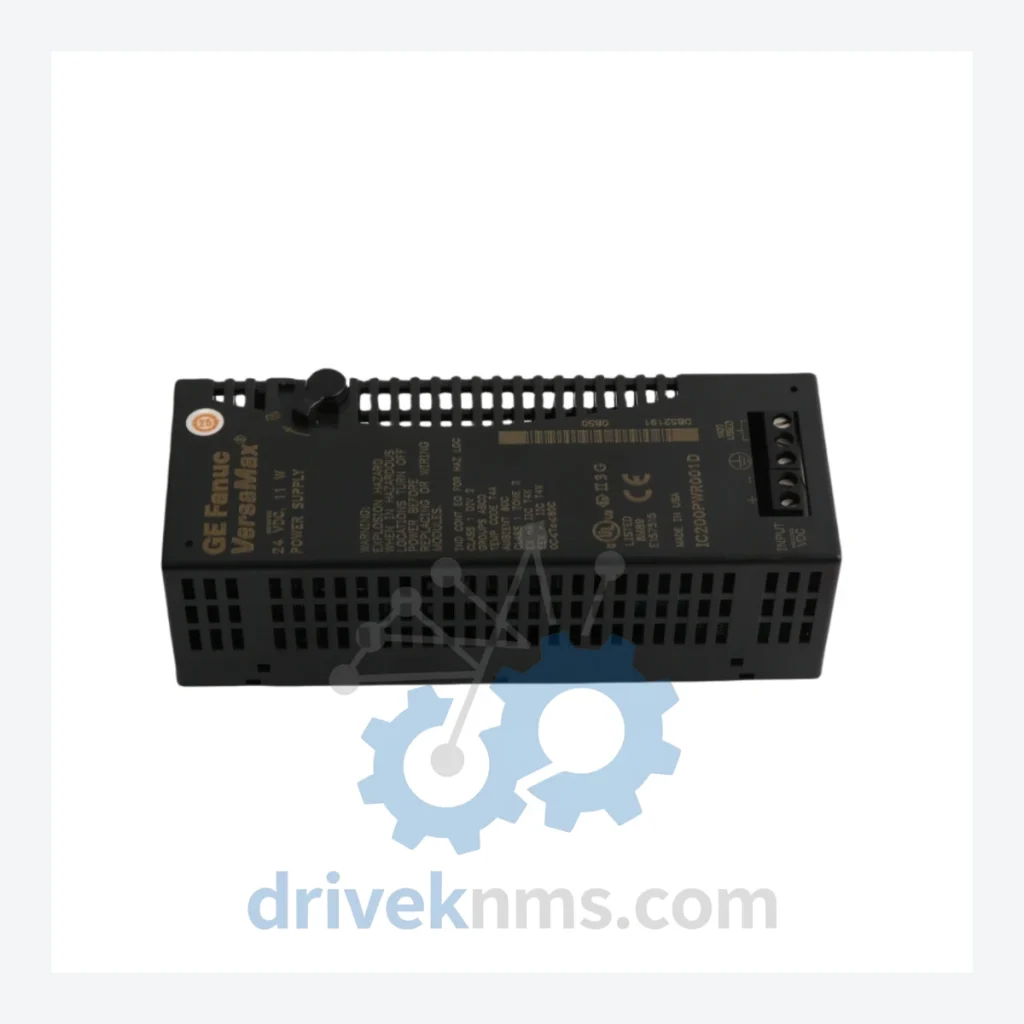

GE Fanuc VersaMax IC200PWR001 Modules

Technical Dossier

Product Details And Specifications

GE Fanuc VersaMax Series Technical Notes

The GE Fanuc VersaMax PLC platform is a modular, rack-based programmable logic controller system engineered for distributed I/O and standalone control applications across global heavy industry. Deployed extensively in chemical processing plants, petroleum refineries, nuclear power auxiliary systems, and continuous manufacturing lines, VersaMax installations number in the tens of thousands worldwide. The IC200 product family — the core identifier for all VersaMax modules — covers CPU units, discrete and analog I/O, communications adapters, and power supply modules. The IC200PWR001 is a 24VDC input power supply module that converts 24V DC input to the 5V and 3.3V backplane bus voltages required by VersaMax rack-mounted modules. It is rated for 30W output and is compatible with the IC200CHS series carrier/rack assemblies. This module is a critical infrastructure component: failure of the power supply renders the entire rack inoperative, making reliable sourcing of replacement units a maintenance priority for any facility running VersaMax architecture.

VersaMax Full Catalog & Functionalities (SKU List)

The following SKUs represent the core VersaMax IC200 module range, organized by functional category. All models listed are verified members of the IC200 VersaMax product family.

Power Supply Modules

• IC200PWR001: 24VDC input, 30W backplane power supply for VersaMax rack
• IC200PWR002: 120/240VAC input, 30W backplane power supply for VersaMax rack
• IC200PWR101: 24VDC input, 40W high-capacity backplane power supply
• IC200PWR102: 120/240VAC input, 40W high-capacity backplane power supply

CPU / Controller Modules

• IC200CPUE05: VersaMax CPU, 16KB user memory, Ethernet port, standalone controller
• IC200CPUE10: VersaMax CPU, 32KB user memory, dual Ethernet, expanded I/O capacity
• IC200CPU001: VersaMax CPU, serial port only, entry-level standalone controller
• IC200CPU002: VersaMax CPU, expanded serial communications, 16KB memory

Discrete Input (DI) Modules

• IC200MDL140: 8-point 120VAC discrete input module, isolated
• IC200MDL240: 16-point 24VDC discrete input module, positive logic
• IC200MDL241: 16-point 24VDC discrete input module, negative logic
• IC200MDL640: 32-point 24VDC discrete input, high-density, dual-row connector

Discrete Output (DO) Modules

• IC200MDL330: 8-point relay output module, 2A per point, Form C contacts
• IC200MDL740: 16-point 24VDC transistor output, sourcing, 0.5A per point
• IC200MDL741: 16-point 24VDC transistor output, sinking, 0.5A per point

Analog I/O Modules

• IC200ALG230: 4-channel analog input, 4–20mA / 0–10V, 12-bit resolution
• IC200ALG320: 2-channel analog output, 4–20mA / 0–10V, 12-bit resolution
• IC200ALG431: 4-channel analog input, thermocouple/RTD, 16-bit resolution

Communications Adapters

• IC200BEM003: VersaMax Network Interface Unit (NIU), Genius Bus adapter
• IC200PBI001: PROFIBUS-DP slave adapter for VersaMax distributed I/O
• IC200ETM001: Ethernet TCP/IP communications module, 10/100 Mbps

Carrier / Rack Assemblies

• IC200CHS002: 2-slot VersaMax carrier, DIN rail mount
• IC200CHS006: 6-slot VersaMax carrier, DIN rail mount
• IC200CHS012: 12-slot VersaMax carrier, panel mount
