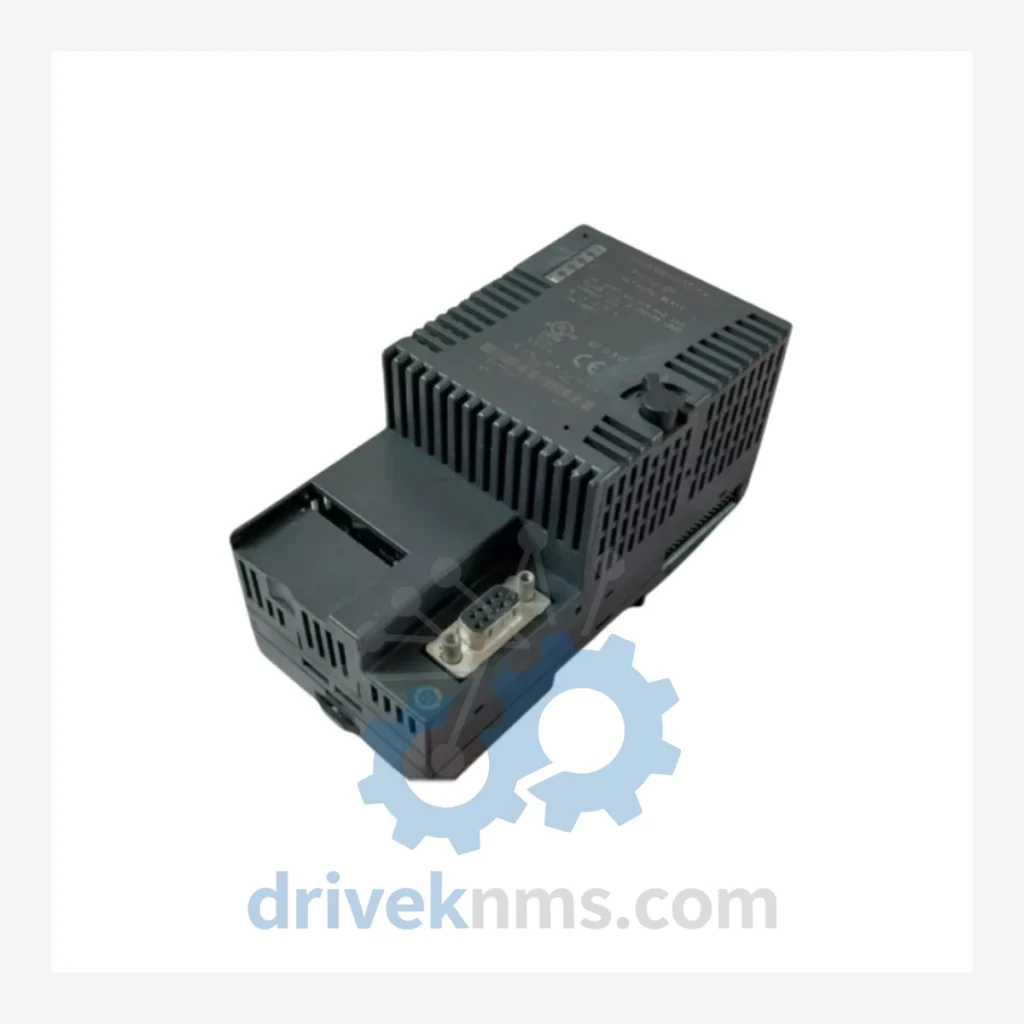

GE Fanuc VersaMax Modules: IC200BEM002 Network Slave Module

Technical Dossier

Product Details And Specifications

GE Fanuc VersaMax Series Technical Notes

The GE Fanuc VersaMax series is a modular, rack-based programmable controller platform deployed across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process manufacturing. The IC200BEM002 is a Network Slave Module within this architecture, enabling VersaMax I/O stations to operate as remote nodes on a GE Genius Bus or Series 90 network without a local CPU. Its distributed I/O capability makes it a critical component in large-scale DCS and SCADA topologies where centralized control must reach geographically dispersed field devices. Installed base counts for VersaMax remain high across facilities commissioned between 1995 and 2015, sustaining long-term demand for both active and obsolete module variants.

The Evolution of VersaMax Architecture

VersaMax was introduced by GE Fanuc Automation in the mid-1990s as a successor to the Series 90 Micro and a complement to the Series 90-30 and 90-70 platforms. The architecture is built around a passive backplane with a local bus that supports up to 8 I/O modules per carrier, expandable via expansion carriers. Early revisions used the Genius Bus (a token-passing serial fieldbus at 153.6 kbps) as the primary network medium. Subsequent generations added support for Profibus-DP, DeviceNet, and Ethernet/IP through dedicated Network Interface Units (NIUs) and Bus Interface Modules (BIMs).

The IC200BEM002 belongs to the Bus Interface Module sub-family, designed specifically for Genius Bus slave operation. As GE transitioned product stewardship to Emerson Automation Solutions (post-2018 acquisition), firmware updates ceased for most VersaMax BIM variants. The platform is now classified as mature/end-of-active-development, though Emerson continues to supply select modules under long-term availability commitments. For facilities locked into Genius Bus topologies, the IC200BEM002 has no direct drop-in replacement; migration paths require either a full NIU substitution or a network protocol converter.

VersaMax Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the GE Fanuc VersaMax platform. Each entry reflects a distinct functional role within the system architecture.

Bus Interface & Network Modules

• IC200BEM002: Genius Bus Network Slave Module; connects VersaMax I/O station to Genius Bus as a remote drop without local CPU.
• IC200BEM003: Genius Bus Network Slave Module with enhanced diagnostics; supports hot-standby redundancy configurations.
• IC200PBI001: Profibus-DP Bus Interface Module; slave node interface for Profibus-DP networks up to 12 Mbps.
• IC200PBI002: Profibus-DP Bus Interface Module with extended I/O map; supports up to 244 bytes input/output.
• IC200DBI001: DeviceNet Bus Interface Module; slave node for DeviceNet networks, supports Group 2 Only slave protocol.
• IC200ETM001: Ethernet TCP/IP Network Interface Unit; 10/100 Mbps, supports SRTP and Modbus TCP protocols.

CPU & Controller Modules

• IC200CPUE05: VersaMax Micro CPU, 28 I/O points onboard, supports ladder and function block programming via Proficy Machine Edition.
• IC200CPUE01: VersaMax Micro CPU, 14 I/O points, RS-232 serial port, entry-level standalone controller.
• IC200CPU001: VersaMax CPU module for rack-based systems; 512KB user memory, supports up to 8 expansion racks.
• IC200CPU002: VersaMax CPU with expanded memory (1MB) and dual serial ports; supports motion control via HSC.

Discrete Input Modules (DI)

• IC200MDL640: 120VAC Discrete Input Module, 8 points, isolated, for high-voltage field device interfacing.
• IC200MDL650: 24VDC Discrete Input Module, 16 points, positive logic, standard industrial sensor input.
• IC200MDL660: 24VDC Discrete Input Module, 32 points, high-density, for compact panel installations.

Discrete Output Modules (DO)

• IC200MDL740: 120VAC Discrete Output Module, 8 points, relay contact, 2A per point.
• IC200MDL750: 24VDC Discrete Output Module, 16 points, transistor sourcing, 0.5A per point.
• IC200MDL760: 24VDC Discrete Output Module, 32 points, high-density transistor sourcing.

Analog Input/Output Modules (AI/AO)

• IC200ALG260: Analog Input Module, 4 channels, 4–20mA / 0–10V selectable, 12-bit resolution.
• IC200ALG320: Analog Output Module, 2 channels, 4–20mA, 12-bit resolution, loop-powered.
• IC200ALG430: Analog Input Module, 8 channels, 4–20mA, 15-bit resolution, high-accuracy process measurement.

Power Supply Modules

• IC200PWR002: 24VDC Power Supply Module, 30W, for VersaMax rack; supports up to 8 I/O modules.
• IC200PWR101: 120/240VAC Power Supply Module, 30W, universal input voltage, rack-mounted.

Sourcing Hard-to-Find & Obsolete VersaMax Parts

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Quality Control for the VersaMax Range

VersaMax modules — particularly Bus Interface Modules such as the IC200BEM002 — incorporate a multi-layer backplane communication bus and onboard firmware that requires functional validation beyond basic power-on testing. DriveKNMS applies the following test protocol to all VersaMax units prior to shipment:

• Backplane Bus Integrity Test: Each module is seated in a live VersaMax rack and polled via the local bus to confirm correct slot addressing and data exchange.
• Network Communication Validation: BIM modules (including IC200BEM002) are connected to a Genius Bus test network and verified for correct slave drop registration, I/O data mapping, and fault reporting.
• Firmware Version Verification: Onboard firmware revision is read and documented. Modules with known firmware defects (per GE Fanuc service bulletins) are flagged and quarantined.
• Thermal Cycle Screening: Selected units undergo a 4-hour thermal cycle (0°C to 55°C) to screen for latent component failures common in aged industrial electronics.
• Visual and Mechanical Inspection: Connector pins, backplane edge connectors, and status LED arrays are inspected under magnification. Modules with physical damage are rejected.
