HEIDENHAIN IBV660B Series: Comprehensive Module Range and Technical Overview

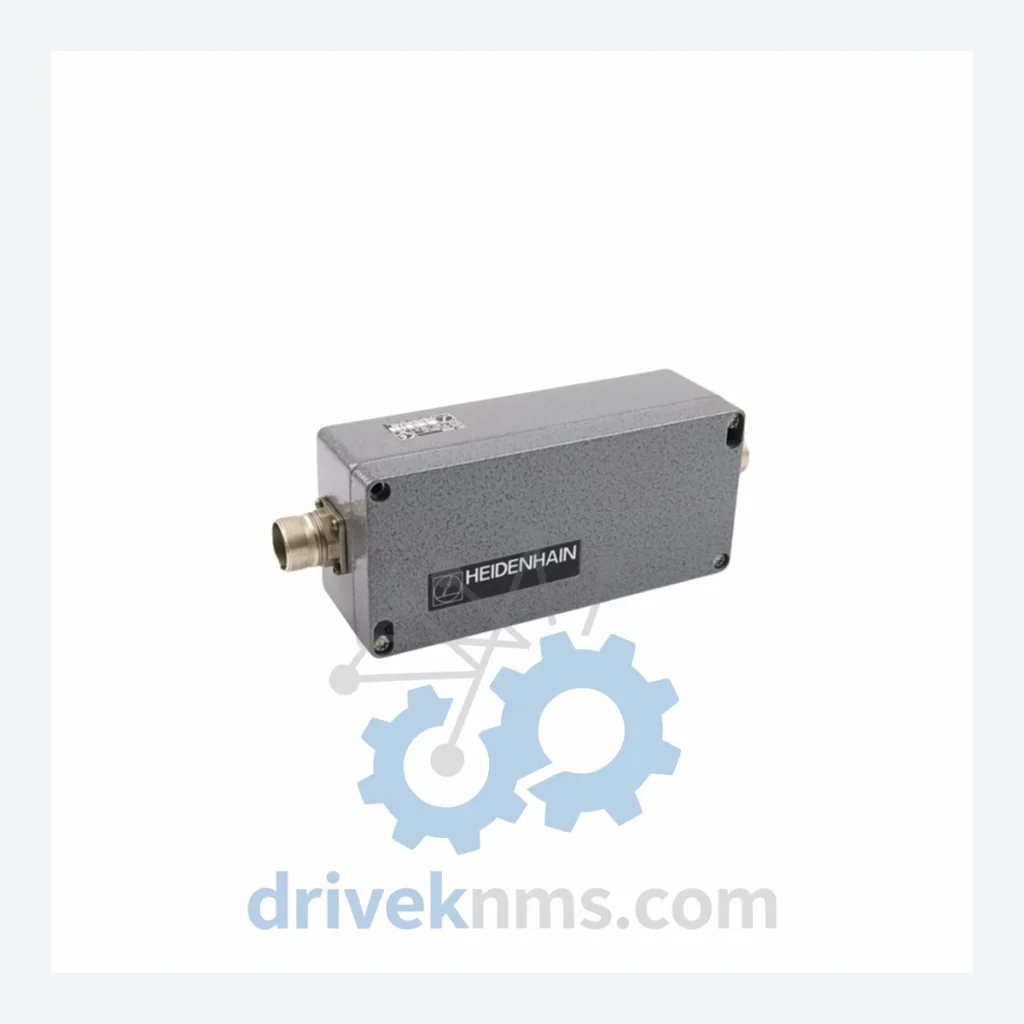

The HEIDENHAIN IBV660B is a precision signal converter (interpolation and digitizing electronics) designed to process the sinusoidal output signals of HEIDENHAIN linear and angle encoders into incremental TTL square-wave signals. Deployed across global heavy industry — including petrochemical plants, nuclear facility instrumentation loops, precision machine tool OEMs, and refinery process control systems — the IBV660B series occupies a critical position in closed-loop feedback architectures where signal integrity and interpolation accuracy are non-negotiable. Its compact DIN-rail-mountable form factor and wide encoder compatibility have made it a long-cycle installed base component in facilities with 10–25 year equipment lifespans.

The Evolution of IBV660B Architecture

HEIDENHAIN's IBV (Interpolation and Digitizing Electronics) product line traces its origins to the analog interpolation boards of the 1980s, where sinusoidal encoder signals required hardware-level subdivision to achieve the positional resolution demanded by precision grinding and milling applications. The IBV600 generation introduced modular, board-level signal conditioning with configurable interpolation factors. The IBV660 and IBV660B revisions refined the analog front-end filtering, expanded the input frequency range, and improved EMC compliance to meet EN 61000 industrial immunity standards — a requirement driven by the increasing density of variable-frequency drives and servo amplifiers in modern machine enclosures.

The IBV660B specifically introduced enhanced interpolation stability at low signal amplitudes, addressing field failures observed when encoder signal levels degraded due to cable aging or connector oxidation in long-installed systems. Compatibility is maintained with the full range of HEIDENHAIN encoders producing 1 Vpp sinusoidal signals, including linear scales (LB, LS, LF series), angle encoders (RON, ROD, RPN series), and rotary encoders (ERN, EQN series). The IBV660B outputs TTL-compatible differential square-wave signals (RS-422), making it directly interfaceable with standard CNC controllers, motion controllers, and PLC high-speed counter modules without additional signal conditioning.

As the IBV660B series has entered its mature/end-of-life phase, HEIDENHAIN's current recommended migration path leads to the IBV101 and EIB series of interpolation electronics, which offer USB and EnDat 2.2 digital interfaces. However, the installed base of IBV660B units in legacy machine tools and process instrumentation systems remains substantial, and direct replacement with modern equivalents frequently requires mechanical and electrical re-engineering that is cost-prohibitive for operational equipment. Long-term maintenance support for the IBV660B therefore remains a defined procurement requirement for many end users.

IBV660B Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the HEIDENHAIN IBV660B signal converter family, classified by functional variant and ID number:

IBV660B ID331923-01: Standard interpolation/digitizing unit, 1 Vpp input, TTL output, interpolation factor ×5, DIN rail mount
IBV660B ID331923-02: Variant with extended interpolation factor ×10, enhanced low-speed signal stability
IBV660B ID331923-03: High-frequency input variant, supports encoder signal frequencies up to 200 kHz
IBV660B ID331923-04: Version with integrated reference mark evaluation and zero-pulse output
IBV660B ID331923-05: Dual-channel variant for simultaneous processing of two encoder axes
IBV660B ID331923-06: Extended temperature range version (-10°C to +60°C), for harsh environment enclosures
IBV660B ID331923-07: Variant with analog monitor outputs for signal amplitude diagnostics
IBV660B ID331923-08: Version with configurable interpolation factor (×5 / ×10 / ×25) via DIP switch
IBV660B ID331923-09: Compact form factor variant for space-constrained control cabinet installations
IBV660B ID331923-10: Version with integrated LED signal quality indicators for field commissioning
IBV660B ID331923-11: High-resolution variant, interpolation factor ×25, for sub-micron positioning applications
IBV660B ID331923-12: Version with galvanic isolation between encoder input and TTL output stages
IBV660B ID331923-13: Variant with 5V and 24V DC dual power supply input compatibility
IBV660B ID331923-14: OEM board-level version without housing, for integration into machine builder panels
IBV660B ID331923-15: Replacement/service unit with pre-configured factory default interpolation settings
IBV660B ID331923-16: Version with extended cable drive capability, supports encoder cable lengths up to 150 m
IBV660B ID331923-17: Variant with RS-422 output and additional open-collector output for legacy PLC interfaces

Sourcing Hard-to-Find & Obsolete IBV660B Parts

DriveKNMS maintains a dedicated inventory program for HEIDENHAIN IBV660B units, including ID numbers that have been discontinued from HEIDENHAIN's active production schedule. Our sourcing network covers new-old-stock (NOS) units from authorized distributor closeouts, tested-serviceable units recovered from decommissioned machine tool installations, and factory-refurbished units where original HEIDENHAIN service documentation is available.

For facilities operating under long-term maintenance contracts — particularly in nuclear, petrochemical, and precision aerospace manufacturing — DriveKNMS provides documented traceability records for each IBV660B unit shipped, including functional test data, firmware/hardware revision identification, and packaging condition assessment. Minimum order quantities are not imposed for IBV660B spare parts procurement; single-unit emergency orders are processed with the same priority as volume blanket orders.

Customers requiring cross-reference support — identifying which IBV660B ID number is installed in a specific machine tool model — can submit the machine builder's documentation or nameplate data to our technical team for identification. We maintain a cross-reference database covering major CNC OEMs including DMG MORI, TRUMPF, STUDER, SCHAUDT, and KELLENBERGER.

Quality Control for the IBV660B Range

Each IBV660B unit processed by DriveKNMS undergoes a structured functional verification protocol before shipment. The test sequence addresses the specific failure modes documented in the IBV660B field service history: analog front-end signal amplitude drift, interpolation counter desynchronization under high-frequency input conditions, and TTL output driver degradation from sustained short-circuit events.

Test procedures include: input signal injection using calibrated 1 Vpp sinusoidal sources at frequencies from 1 Hz to the rated maximum input frequency; verification of interpolation factor accuracy against a reference encoder simulator; measurement of TTL output signal timing margins (rise time, fall time, propagation delay) against RS-422 specification limits; insulation resistance measurement between encoder input commons and output signal commons; and 4-hour thermal soak at 50°C with continuous functional monitoring. Units that do not meet all parametric limits are quarantined and not offered for sale. Test records are retained for a minimum of 5 years and are available to customers on request.
