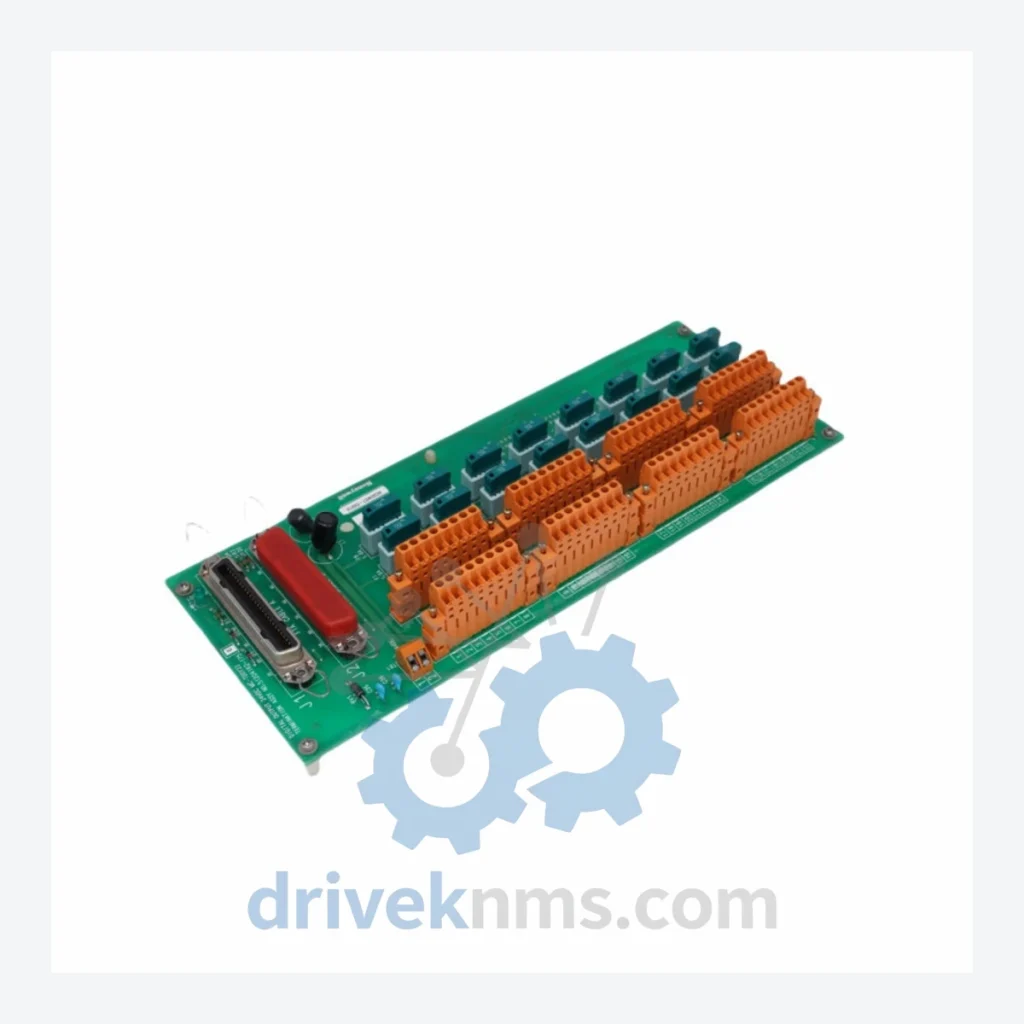

Honeywell MC-TD1D12 Digital Input Module: Specs, Compatibility & Availability

Technical Dossier

Product Details And Specifications

Honeywell MC Series: Comprehensive Module Range and Technical Overview

The Honeywell MC Series — deployed within the Experion PKS and TDC 3000 C300 controller architecture — represents one of the most widely installed distributed control system (DCS) I/O platforms in global heavy industry. Active installations span petrochemical complexes, nuclear power stations, offshore oil platforms, LNG terminals, and continuous-process refineries across North America, the Middle East, and Asia-Pacific. The MC-TD1D12 is a 24 VDC digital input module within this family, providing 12 isolated DI channels for field device status monitoring in safety-critical environments. Its backplane-mounted form factor integrates directly into the C300 controller chassis, communicating over the FTE (Fault Tolerant Ethernet) backbone. The longevity of the MC Series in brownfield facilities — many with 15–25 year operational horizons — creates sustained demand for both active and end-of-life spare parts.

The Evolution of MC Series Architecture

The MC Series I/O platform originated as part of Honeywell's TDC 3000 migration strategy in the late 1990s, designed to provide a forward-compatible I/O layer bridging legacy LCN (Local Control Network) infrastructure with the emerging Experion PKS platform introduced in 2001. Early MC modules communicated via the UCN (Universal Control Network) and required dedicated I/O Link interfaces. With the introduction of the C300 Controller in 2004, the MC Series was re-architected to support EUCN (Enhanced UCN) and later FTE-based communication, enabling redundant controller pairing and hot-swap capability without process interruption.

Compatibility across generations is a known engineering constraint: MC modules manufactured prior to firmware revision R400 require specific C300 firmware baselines and are not directly interchangeable with post-R500 hardware without configuration validation. Facilities running Experion R310 through R500 must verify module firmware compatibility before substitution. As Honeywell has progressively moved toward the HPMS (Honeywell Process Management System) and Series C I/O with HART pass-through, the MC Series has entered a mature/end-of-life phase for new projects, while remaining the dominant I/O standard in brownfield maintenance and turnaround operations.

MC Series Full Catalog & Functionalities (SKU List)

Digital Input (DI) Modules

• MC-TD1D12: 12-channel 24 VDC isolated digital input module, C300 backplane mount
• MC-TD1D22: 12-channel 120 VAC digital input module, field-isolated, DIN rail compatible
• MC-TD1D32: 12-channel 240 VAC digital input module, high-voltage field interface
• MC-TD1D42: 12-channel dry contact digital input module, intrinsically safe variant

Digital Output (DO) Modules

• MC-TD1O12: 12-channel 24 VDC digital output module, sourcing type, 0.5 A per channel
• MC-TD1O22: 12-channel relay output module, SPDT contacts, 2 A resistive load
• MC-TD1O32: 8-channel high-current relay output, 5 A per channel, process isolation

Analog Input (AI) Modules

• MC-TAIH02: 8-channel analog input, 4–20 mA HART, 16-bit resolution
• MC-TAIH12: 16-channel analog input, 4–20 mA, non-HART, high-density configuration
• MC-TAIX02: 8-channel thermocouple/RTD input module, multi-sensor type support
• MC-TAIX12: 8-channel RTD input, Pt100/Pt1000, 3-wire and 4-wire configurations

Analog Output (AO) Modules

• MC-TAOH02: 8-channel analog output, 4–20 mA HART, 12-bit resolution, loop-powered
• MC-TAOX02: 4-channel analog output, voltage/current selectable, isolated

Controller & Communication Modules

• MC-ECTC02: C300 Controller module, dual FTE ports, 256 MB SDRAM, primary processing unit
• MC-ECBAS02: C300 Chassis base module, 8-slot backplane, power distribution and I/O bus
• MC-ECBAS12: C300 Chassis base module, 16-slot extended backplane
• MC-PLAM02: Power supply module, 24 VDC output, redundant pair capable, 40 W

Sourcing Hard-to-Find & Obsolete MC Series Parts

Honeywell formally transitioned the MC Series to a limited-support lifecycle designation beginning with Experion R500. Modules including the MC-TD1D12, MC-TAIH02, and MC-ECTC02 are no longer manufactured as new production units. DriveKNMS maintains a dedicated inventory of tested, refurbished, and new-surplus MC Series modules sourced from decommissioned DCS systems, controlled plant shutdowns, and authorized distributor excess stock.

For facilities operating under long-term service agreements (LTSAs) or multi-year maintenance contracts, DriveKNMS provides consignment stocking programs, allowing critical MC Series spares to be held on-site or in regional warehouses with guaranteed replenishment. Emergency same-day dispatch is available for in-stock items. All modules are shipped with full traceability documentation including test reports, firmware version records, and original packaging where available.

Quality Control for the MC Series Range

MC Series modules present specific test challenges due to their backplane-dependent communication architecture. DriveKNMS operates a dedicated C300 chassis test bench replicating the Experion PKS hardware environment, enabling functional validation of each module under live controller communication. Test procedures include: backplane bus integrity verification, channel-by-channel I/O signal injection and measurement, HART communication handshake validation (for HART-capable AI/AO modules), firmware version identification and logging, and 48-hour burn-in cycling under thermal load. Digital input modules such as the MC-TD1D12 are tested against both dry-contact and 24 VDC wet-contact signal sources across all 12 channels. Modules failing any single channel test are quarantined and not offered for resale.
