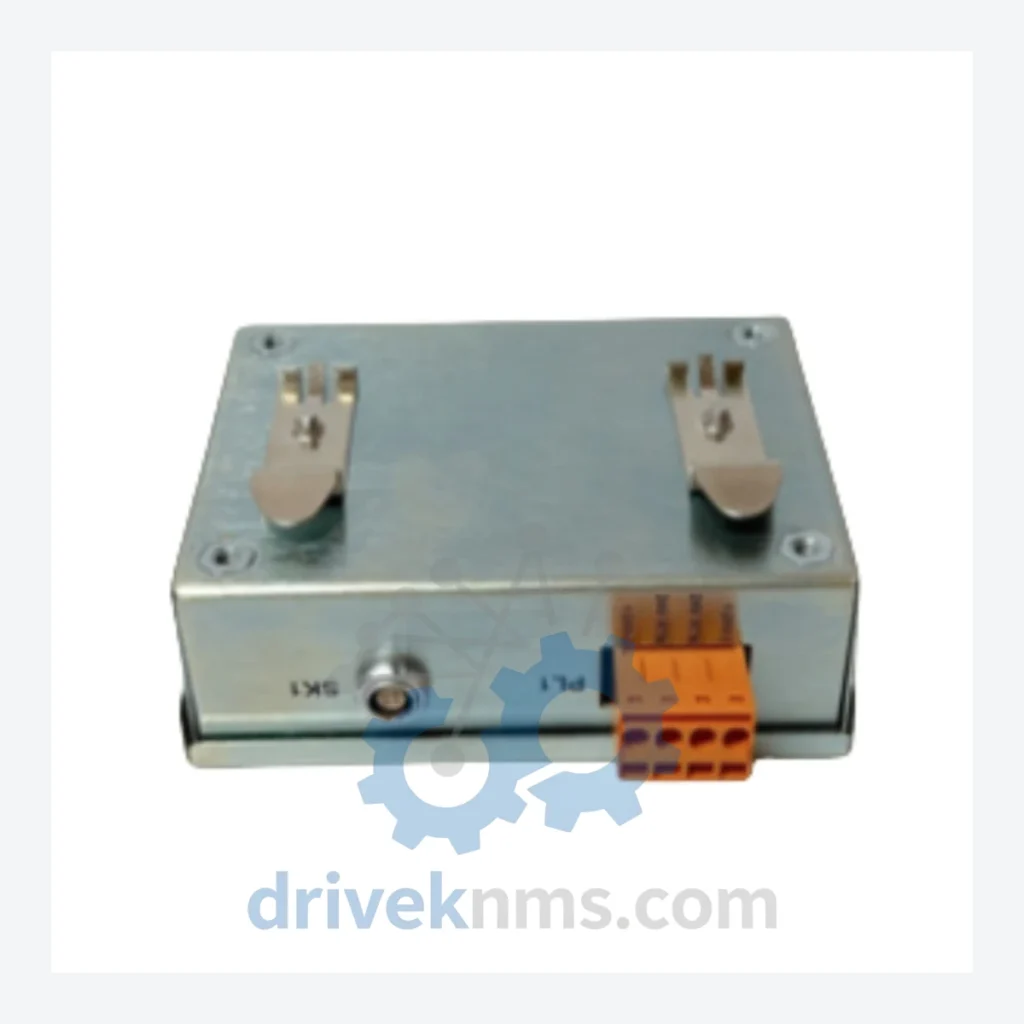

ICS Triplex T8314 Trusted Fiber TX/RX Module: Specs, Compatibility & Availability

Technical Dossier

Product Details And Specifications

ICS Triplex TMR Series: Comprehensive Module Range and Technical Overview

The ICS Triplex TMR (Triple Modular Redundancy) safety system is one of the most widely deployed fault-tolerant control architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and refinery critical-path applications, the TMR platform operates on a 2-out-of-3 voting logic that ensures continuous process availability even under single-channel failure conditions. The T8314 Trusted Fiber TX/RX Module is a core communication component within this architecture, providing high-integrity fiber optic signal transmission and reception between TMR chassis nodes. Its role is non-negotiable in any multi-chassis TMR configuration requiring deterministic, electrically isolated inter-node communication.

The Evolution of TMR Architecture

ICS Triplex introduced the Trusted TMR platform in the late 1980s as a response to the growing demand for IEC 61508 SIL 3-capable safety instrumented systems in the oil & gas sector. The original T8000-series chassis established the backplane communication standard that persists across all subsequent generations. Early modules such as the T8110 and T8120 established the I/O density baseline, while the introduction of fiber optic inter-chassis links — exemplified by modules like the T8314 — addressed EMI immunity requirements in high-voltage industrial environments.

Over successive hardware revisions, ICS Triplex (later acquired by Rockwell Automation and integrated into the Allen-Bradley safety portfolio) expanded the TMR catalog to include enhanced diagnostics, HART pass-through capability, and dual-redundant power architectures. The T8000 series reached end-of-active-production status, transitioning the installed base into a long-term maintenance and lifecycle extension phase. Compatibility between early and late T8000-series modules is generally maintained at the backplane level, though firmware version alignment must be verified for mixed-generation configurations.

TMR Full Catalog & Functionalities (SKU List)

The following represents a structured index of verified ICS Triplex TMR series modules, organized by functional category. Each entry reflects a real, documented part number within the T8000 platform.

Fiber Optic Communication Modules

• T8314: Trusted Fiber TX/RX Module — inter-chassis fiber optic transceiver for TMR node-to-node communication
• T8315: Trusted Fiber Optic Link Module — extended-range fiber communication for remote I/O chassis

Digital Input Modules

• T8120: 24 VDC Digital Input Module — 16-channel DI, field-side isolated, SIL 3 rated
• T8121: 24 VDC Digital Input Module with HART — 16-channel DI with HART pass-through capability
• T8122: 120 VAC Digital Input Module — 16-channel, high-voltage field input, TMR voting
• T8123: 48 VDC Digital Input Module — 16-channel, suitable for substation and telecom-adjacent applications

Digital Output Modules

• T8110: 24 VDC Digital Output Module — 8-channel DO, relay-backed, SIL 3 certified
• T8111: 24 VDC Digital Output Module — 16-channel high-density DO, solid-state switching
• T8112: 120 VAC Digital Output Module — 8-channel AC output for valve actuator and motor starter interfaces

Analog Input Modules

• T8431: 4–20 mA Analog Input Module — 8-channel AI, TMR-voted, HART-enabled
• T8432: RTD/Thermocouple Input Module — 8-channel temperature input, multi-sensor type support
• T8433: Analog Input Module with Diagnostics — 8-channel AI with enhanced loop diagnostics

Analog Output Modules

• T8440: 4–20 mA Analog Output Module — 4-channel AO, current-sourcing, SIL 2 rated
• T8441: Analog Output Module with HART — 4-channel AO with HART communication for smart valve positioners

Controller / CPU Modules

• T8100: Trusted TMR Main Processor Module — primary CPU for TMR chassis, executes safety application logic
• T8101: Trusted TMR Processor Module (Enhanced) — higher-cycle-time variant for complex logic applications

Power Supply Modules

• T8800: Trusted Power Supply Module — 24 VDC redundant power input, chassis-level distribution
• T8801: Trusted Power Supply Module (AC Input) — 120/240 VAC input variant for direct mains connection

Sourcing Hard-to-Find & Obsolete TMR Parts

The ICS Triplex TMR T8000 series has entered the mature/end-of-life phase of its product lifecycle. Rockwell Automation has formally discontinued active manufacturing of the majority of T8000-series modules, including the T8314. For operators of existing TMR installations — particularly those in nuclear, refinery, and offshore environments where system replacement is not operationally or economically viable — lifecycle extension through verified surplus and refurbished inventory is the standard maintenance strategy.

DriveKNMS maintains a dedicated inventory of ICS Triplex TMR modules sourced from decommissioned systems, controlled surplus channels, and authorized redistribution networks. All T8314 units and related TMR modules in stock are subject to pre-shipment inspection and functional verification. DriveKNMS provides documentation traceability where available and can support emergency replacement requirements with expedited logistics.

Quality Control for the TMR Range

ICS Triplex TMR modules present specific quality control challenges due to their multi-channel voting architecture and proprietary backplane communication protocol. DriveKNMS applies a structured test protocol to all TMR modules prior to dispatch:

• Backplane Interface Verification: Each module is seated in a compatible T8000-series chassis and backplane communication integrity is confirmed across all three TMR channels.
• Fiber Optic Link Testing (T8314-specific): TX and RX optical power levels are measured using a calibrated optical power meter. Insertion loss and return loss are verified against ICS Triplex factory specifications.
• Channel-Level Functional Test: For I/O modules, each individual channel is exercised through its full input/output range. For the T8314, fiber loopback testing confirms bidirectional signal integrity.
• Firmware Revision Logging: The installed firmware version is recorded and provided to the customer to ensure compatibility with the target system configuration.
• Visual and Mechanical Inspection: Connector pins, faceplate labels, and PCB condition are inspected for corrosion, mechanical damage, or evidence of prior field failure.
