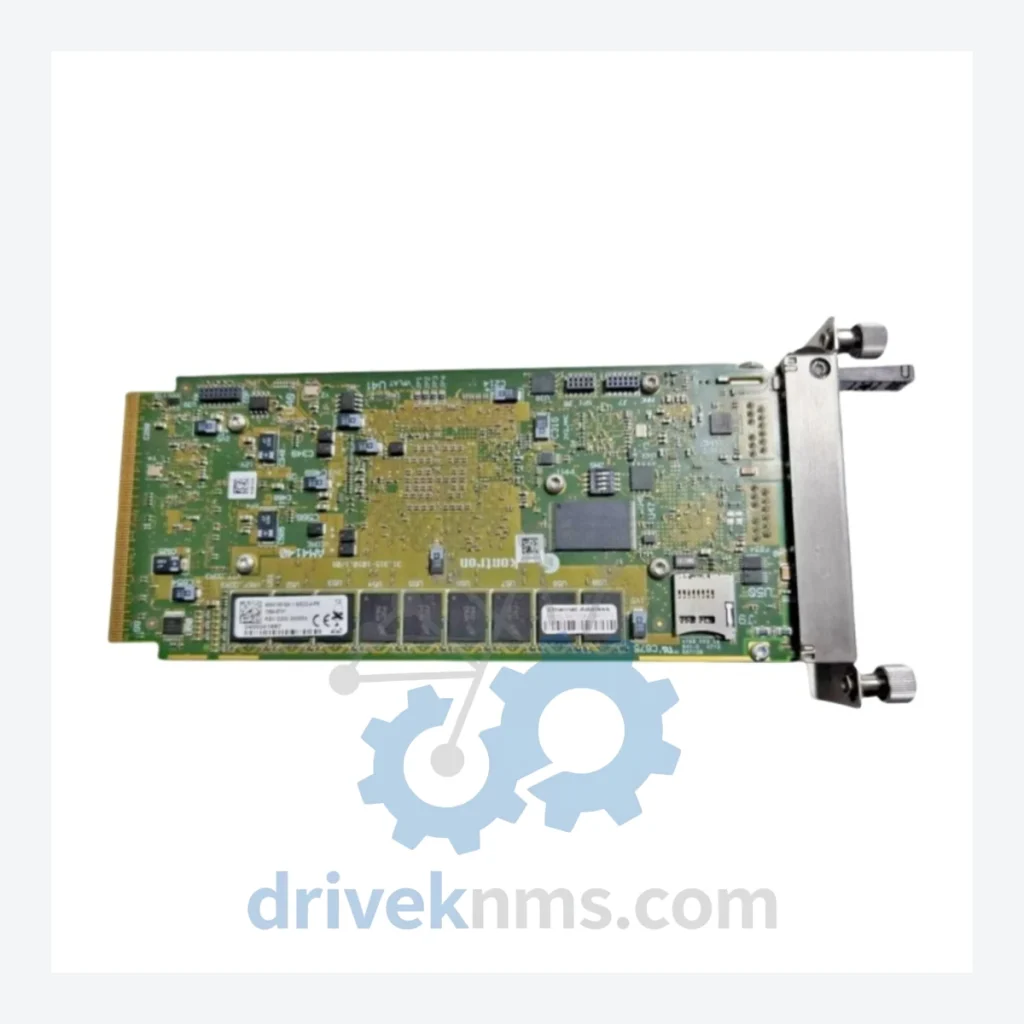

Kontron AM4140 AMC Modules

Technical Dossier

Product Details And Specifications

Kontron AM4140 Series: Comprehensive Module Range and Technical Overview

The Kontron AM4140 is an Advanced Mezzanine Card (AMC) module designed for deployment in ATCA (Advanced Telecommunications Computing Architecture) and MicroTCA (µTCA) carrier platforms. It has established a significant installed base across global heavy industries including petrochemical processing plants, nuclear power generation facilities, offshore oil and gas platforms, and large-scale refinery control systems. The AM4140 series operates as a compute or I/O mezzanine within AdvancedTCA shelf environments, providing deterministic processing performance and high-availability redundancy features mandated by IEC 61511 and IEC 61508 functional safety standards. Its ruggedized design supports extended temperature ranges and vibration tolerances consistent with NEBS Level 3 and EN 300 019 environmental classifications, making it a preferred module in mission-critical distributed control system (DCS) and SCADA infrastructure worldwide.

The Evolution of AM4140 Architecture

The Kontron AMC module lineage traces its origins to the PICMG AMC.0 base specification ratified in 2006, which standardized the mechanical, electrical, and management interfaces for mezzanine cards used in carrier-grade telecommunications and industrial control platforms. The AM4140 represents a mid-generation implementation within Kontron's AMC portfolio, succeeding earlier single-width, single-height (AMC.0 Type 1) designs and introducing support for AMC.1 (PCI Express), AMC.2 (Ethernet), and AMC.4 (Serial RapidIO) fabric interfaces on a unified backplane connector.

Early AMC deployments in industrial automation relied on proprietary backplane protocols with limited interoperability. The AM4140 generation addressed this by conforming to IPMI 2.0 management via the Module Management Controller (MMC), enabling hot-swap capability and shelf-level health monitoring through the Shelf Manager. Compatibility considerations arise when integrating AM4140 modules into legacy ATCA shelves designed prior to PICMG 3.0 R2.0: fabric channel negotiation must be verified, and IPMI sensor data record (SDR) repositories may require manual update to recognize the module's FRU information correctly.

As the MicroTCA ecosystem matured, Kontron extended the AM4140 architecture to support µTCA.4 (rear I/O) configurations, enabling analog and digital I/O expansion in compact shelf form factors. This transition is particularly relevant for control system integrators migrating from VMEbus or CompactPCI platforms to MicroTCA-based DCS front-end controllers. The AM4140 series has entered the mature/end-of-active-production phase; Kontron's current-generation equivalents are found in the COM Express and COMpact series, but the AM4140 remains in active service across thousands of installed systems requiring long-term spare parts support through 2030 and beyond.

AM4140 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Kontron AM4140 and closely related AMC module family. Each entry reflects a distinct functional role within an ATCA or MicroTCA shelf architecture:

AM4140: Base AMC compute module, single-width, Intel Core i7 processor, PCIe Gen2 fabric
AM4140-R: Redundant-path variant with dual Gigabit Ethernet AMC.2 fabric ports
AM4140-ETX: Extended temperature (-40°C to +85°C) industrial compute AMC module
AM4020: Predecessor single-width AMC, Intel Core 2 Duo, AMC.1 PCIe x4 fabric
AM4030: AMC DSP processing module, TI TMS320C6455, high-throughput signal processing
AM4050: AMC Gigabit Ethernet switch module, 4-port managed Layer 2/3 switching
AM4060: AMC storage module, SATA II RAID controller, dual 2.5" SSD bays
AM4100: AMC I/O expansion module, 32-channel digital I/O, LVDS interface
AM4110: AMC analog I/O module, 16-channel 16-bit ADC, 4-channel DAC output
AM4120: AMC serial communications module, 4x RS-232/422/485 isolated ports
AM4130: AMC FPGA processing module, Xilinx Virtex-5, reconfigurable logic fabric
AM4150: AMC timing and synchronization module, IEEE 1588 PTP grandmaster capable
AM4160: AMC graphics module, dual DVI output, OpenGL ES 2.0 hardware acceleration
AM4170: AMC MIL-STD-1553 interface module, dual redundant bus controller/remote terminal
AM4180: AMC ARINC 429 interface module, 16 Rx / 8 Tx channels, avionics/industrial
AM4200: Next-generation AMC compute module, Intel Xeon D, PCIe Gen3, DDR4 ECC RAM
AM4210: AMC 10 Gigabit Ethernet module, dual SFP+ ports, AMC.2 Type 16 fabric

Sourcing Hard-to-Find & Obsolete AM4140 Parts

DriveKNMS maintains a dedicated inventory program for Kontron AM4140 series modules and associated AMC components that have transitioned to end-of-life (EOL) or limited-availability status. As Kontron has consolidated its industrial AMC portfolio toward newer COM Express and COMpact platforms, procurement of AM4140 variants through standard distribution channels has become increasingly constrained. DriveKNMS sources AM4140 modules through certified secondary market channels, decommissioned system buybacks, and direct OEM surplus acquisition, providing verified original-manufacture units with full traceability documentation.

For systems operating under long-term service agreements (LTSA) in nuclear, petrochemical, or power generation facilities — where platform change-out requires extensive revalidation under IEC 61511 or 10 CFR 50 Appendix B — maintaining the original AM4140 hardware configuration is often the only operationally viable option. DriveKNMS provides lifecycle extension support including module-level testing, firmware version matching, and shelf-compatible FRU data verification to ensure drop-in replacement compatibility without triggering re-qualification procedures.

Quality Control for the AM4140 Range

All AM4140 modules processed by DriveKNMS undergo a structured incoming inspection and functional validation protocol tailored to the specific electrical and mechanical characteristics of the PICMG AMC.0 form factor. Inspection begins with visual examination of the AMC connector (400-pin high-density edge connector) for pin damage, oxidation, and mechanical deformation. Backplane interface continuity is verified using a dedicated AMC test carrier that replicates the electrical loading of a production ATCA or µTCA shelf.

Functional testing is performed with the module installed in a calibrated test shelf running a reference Shelf Manager firmware. IPMI 2.0 communication is validated including FRU data readback, sensor polling (voltage rails, temperature, fan speed), and hot-swap sequencing per PICMG 3.0 R2.0 Section 3.9. PCIe link training, Ethernet autonegotiation, and fabric port enumeration are verified at rated speeds. Modules with onboard FPGA or DSP resources undergo logic self-test using vendor-supplied diagnostic bitstreams. Final burn-in is conducted at elevated temperature (70°C ambient) for a minimum of 48 hours with continuous functional monitoring before modules are released to inventory.
