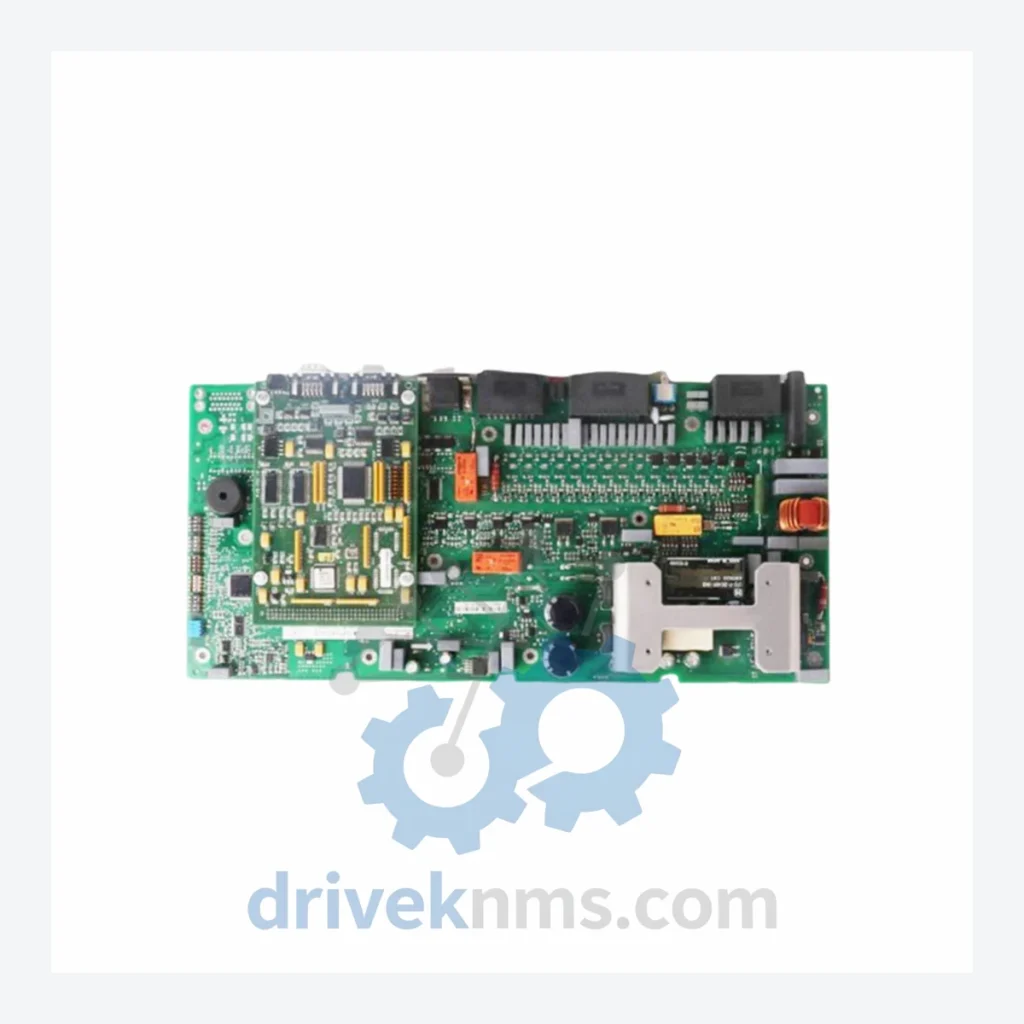

Metso IOP Series Modules — IOP331

Technical Dossier

Product Details And Specifications

Metso IOP Series: Comprehensive Module Range and Technical Overview

The Metso IOP (I/O Processor) series constitutes the core field I/O and controller module family within the Metso DNA (formerly Neles ND800) Distributed Control System platform. Deployed across heavy-process industries — including petrochemical refineries, pulp and paper mills, nuclear auxiliary systems, and offshore hydrocarbon processing — the IOP series provides deterministic scan-cycle I/O processing, redundant backplane communication, and direct integration with Metso DNA's ACN (Application Control Node) architecture. Installed base spans several thousand process units globally, with active deployments dating from the mid-1990s through current greenfield projects using successor hardware. The series remains the dominant I/O substrate in Metso DNA R3 through R5 environments.

The Evolution of IOP Series Architecture

The IOP series originated in the Neles Controls ND800 platform (circa 1992–1996), where first-generation IOP modules operated on a proprietary parallel backplane bus at 5 V TTL logic levels. These early units — including the IOP100 and IOP200 sub-families — used discrete ASIC-based I/O scanning with no onboard diagnostics beyond channel-level fault flags.

With the transition to Metso DNA (post-1999 Neles–Valmet merger), the IOP300 sub-family introduced a 32-bit embedded processor, HART pass-through on analog channels, and dual-redundant backplane arbitration. The IOP330 and IOP331 represent the mature expression of this architecture: full HART 5/6/7 support, 16-channel density, configurable input filtering, and compatibility with both ACN and ACSN (redundant) controller nodes.

The IOP400 sub-family (introduced circa 2010) added Ethernet-based I/O extension and IEC 61850 GOOSE messaging for substation integration. Legacy IOP300-series modules remain in production support through Metso's extended lifecycle program, though new spare procurement increasingly routes through authorized distributors and specialist MRO suppliers such as DriveKNMS.

IOP Series Full Catalog & Functionalities (SKU List)

Analog Input Modules

• IOP331: 16-ch analog input, 4–20 mA / HART 5/6/7, 16-bit resolution, dual-redundant backplane
• IOP332: 8-ch analog input, high-speed scan (10 ms), thermocouple/RTD configurable per channel
• IOP333: 16-ch analog input, HART 7 only, intrinsically safe barrier-compatible, ATEX Zone 1
• IOP334: 8-ch mV/thermocouple input, cold-junction compensation onboard, ±100 mV range

Analog Output Modules

• IOP341: 8-ch analog output, 4–20 mA sourcing, HART 5/6/7, 12-bit DAC, loop-powered diagnostics
• IOP342: 4-ch analog output, high-current 0–20 mA, valve positioner optimized, HART pass-through

Digital Input Modules

• IOP311: 32-ch digital input, 24 VDC, configurable debounce 1–100 ms, SOE 1 ms timestamp
• IOP312: 16-ch digital input, 120 VAC wet contact, optical isolation 2500 V, group commons
• IOP313: 32-ch digital input, NAMUR sensor compatible, short-circuit and wire-break detection
• IOP314: 16-ch digital input, 48 VDC, intrinsically safe, Zener barrier interface

Digital Output Modules

• IOP321: 16-ch digital output, 24 VDC sourcing, 0.5 A per channel, electronic fusing, diagnostics
• IOP322: 8-ch relay output, SPDT, 5 A / 250 VAC, mechanical and solid-state relay options
• IOP323: 32-ch digital output, 24 VDC sinking, 0.1 A per channel, high-density terminal base

Controller / CPU Modules

• IOP361: ACN application controller node, 133 MHz RISC, 64 MB SDRAM, dual Ethernet, IEC 61131-3
• IOP362: ACSN redundant controller pair interface, hot-standby switchover <50 ms, bumpless transfer

Communication & Specialty Modules

• IOP351: PROFIBUS DP master/slave, 12 Mbit/s, up to 125 slave nodes, GSD file management
• IOP352: Modbus RTU/TCP gateway module, 4 serial ports, configurable baud 1200–115200
• IOP353: Foundation Fieldbus H1 linking device, 2-segment, 32 devices per segment, LAS capable

Sourcing Hard-to-Find & Obsolete IOP Series Parts

Metso's official end-of-sale notifications for IOP300-series modules began in 2018, with end-of-repair support scheduled through 2028 under the Metso DNA Extended Lifecycle Agreement. For facilities operating beyond that window — or for sites without active Metso service contracts — DriveKNMS maintains a dedicated inventory of tested IOP series modules sourced from decommissioned process units, authorized surplus channels, and controlled-environment storage.

Quality Control for the IOP Series Range

IOP series modules use a proprietary dual-bus backplane (primary + redundant) operating at 10 Mbit/s. Standard bench testing is insufficient to validate backplane arbitration behavior. DriveKNMS applies the following protocol for all IOP series units:

• Backplane bus integrity test using a Metso DNA R4/R5 test rack with live ACN controller node — validates both primary and redundant bus arbitration and switchover.
• Channel-level functional test: each I/O channel is exercised across its full engineering range using calibrated signal sources (Fluke 725 or equivalent). Analog channels verified to ±0.1% of full scale.
• HART communication validation: HART 5, 6, and 7 command sets executed per channel using a HART communicator (Emerson 475 or equivalent). Pass/fail logged per channel.
• Firmware version audit: module firmware is read and compared against Metso DNA compatibility matrix. Downlevel firmware is flagged; upgrade performed where toolchain is available.
• Thermal soak: 4-hour burn-in at 55°C ambient prior to final acceptance. Eliminates infant-mortality failures in electrolytic capacitors and ASIC junction bonds.
• Full test report issued with each unit, traceable to serial number.
