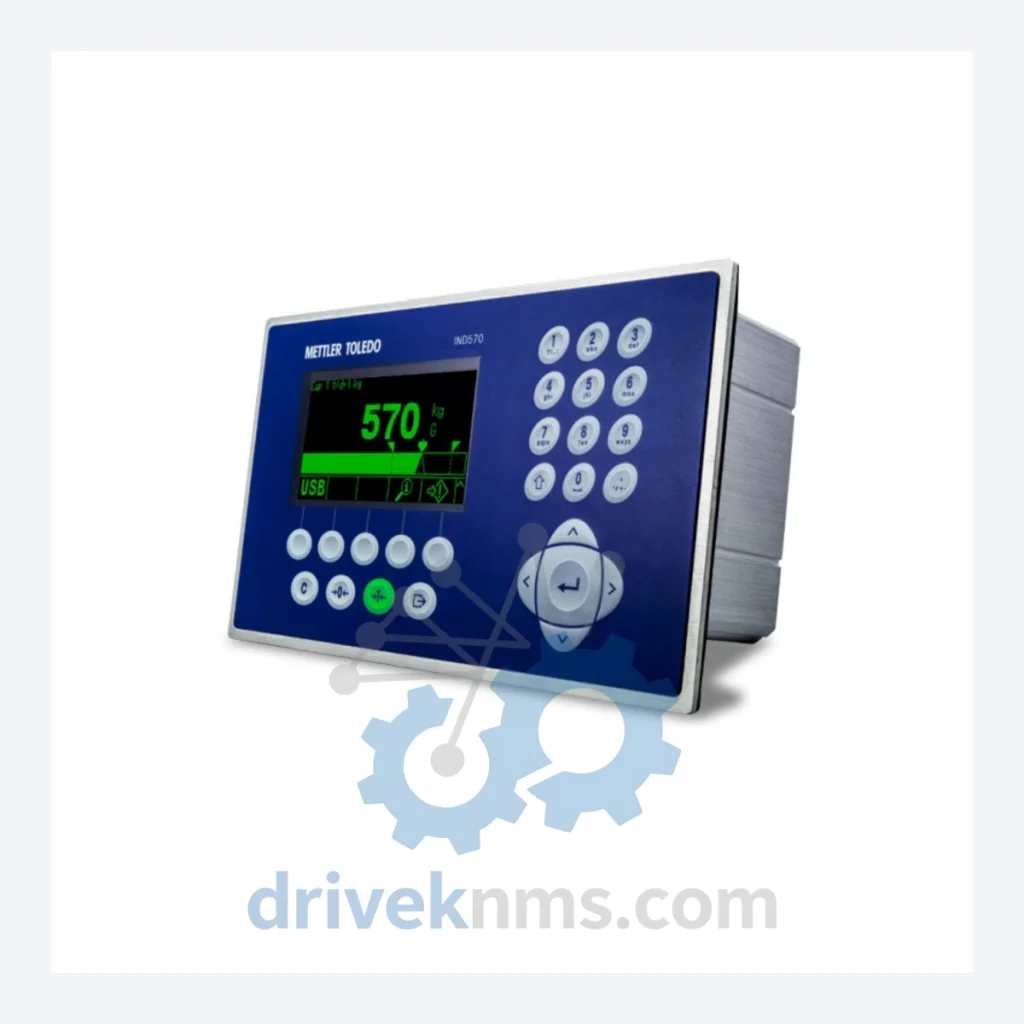

METTLER TOLEDO IND570 Modules: I57000P1000A000

Technical Dossier

Product Details And Specifications

METTLER TOLEDO IND570 Series: Comprehensive Module Range and Technical Overview

The METTLER TOLEDO IND570 is a high-performance industrial weighing terminal engineered for demanding process environments including chemical plants, oil refineries, pharmaceutical manufacturing, and nuclear facility material handling. Deployed globally across heavy industry, the IND570 platform serves as the backbone of legal-for-trade and non-trade weighing applications where precision, reliability, and system integration are non-negotiable requirements. Its modular architecture allows integration into DCS, PLC, and SCADA environments via standardized communication interfaces, making it a long-cycle asset in plant automation infrastructure. The IND570 is certified to OIML R76 and NTEP standards and supports hazardous area installations (ATEX/IECEx variants), which accounts for its widespread adoption in petrochemical and energy sector facilities.

The Evolution of IND570 Architecture

The IND570 succeeded the IND560 and IND465 terminals, inheriting the modular I/O expansion philosophy while introducing a 32-bit processor platform, color VGA display, and expanded fieldbus compatibility. Early IND570 units (pre-2010) used a parallel backplane bus for option board communication; later revisions migrated to a serial internal bus, improving noise immunity in high-EMI industrial environments. The platform supports analog load cell inputs (up to 8 x 350Ω load cells), IDNet/SICSpro digital scale bases, and POWERCELL digital load cell networks — each requiring specific interface boards. Compatibility between hardware revisions must be verified by firmware version: terminals running firmware below v3.0 are not compatible with later-generation POWERCELL PDX network boards. The IND570 has entered the mature/end-of-active-development phase; METTLER TOLEDO continues to supply spare parts and firmware patches under its long-term service commitment, but new feature development has migrated to the IND700 and IND900 platforms. For facilities with installed IND570 fleets, lifecycle extension through spare parts procurement is the primary maintenance strategy.

IND570 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified IND570 module and option board catalog. Each entry is classified by functional category.

Main PCB / Core Processing Boards

• I57000P1000A000: Main PCB assembly, standard IND570 base terminal processing board
• I57000P1100A000: Main PCB assembly, IND570xx hazardous area variant (ATEX Zone 2)
• I57000P1200A000: Main PCB assembly, IND570 with extended memory configuration

Analog Scale Interface Boards

• I57000A0010A000: Analog load cell interface board, 4-wire, up to 8 x 350Ω load cells
• I57000A0020A000: Analog load cell interface board, 6-wire sense, high-accuracy configuration

Digital Scale / IDNet Interface Boards

• I57000D0010A000: IDNet/SICSpro digital scale base interface board
• I57000D0020A000: POWERCELL PDX digital load cell network interface board

Discrete I/O Option Boards

• I57000I0010A000: Discrete I/O board, 8 inputs / 8 outputs, 24VDC
• I57000I0020A000: Discrete I/O board, 16 inputs / 16 outputs, relay output variant

Communication / Fieldbus Adapter Boards

• I57000C0010A000: PROFIBUS DP communication board, slave mode
• I57000C0020A000: DeviceNet communication board, slave mode
• I57000C0030A000: EtherNet/IP communication board, adapter (slave) mode
• I57000C0040A000: PROFINET IO communication board, device mode
• I57000C0050A000: Modbus TCP communication board, server mode
• I57000C0060A000: Allen-Bradley Remote I/O (RIO) communication board

Power Supply Boards

• I57000P0010A000: Internal power supply board, 100–240VAC input
• I57000P0020A000: Internal power supply board, 24VDC input (panel-mount / hazardous area)

Display / Front Panel Assemblies

• I57000F0010A000: Front panel assembly, color VGA display with keypad, standard enclosure
• I57000F0020A000: Front panel assembly, stainless steel bezel, washdown IP69K variant

Sourcing Hard-to-Find & Obsolete IND570 Parts

DriveKNMS maintains a dedicated inventory of IND570 spare parts, including boards that METTLER TOLEDO has classified as discontinued or available only through service channels. For facilities operating IND570 terminals beyond the standard 10-year service window, sourcing replacement PCBs, communication boards, and power supply assemblies from the secondary market is the standard lifecycle extension approach. DriveKNMS sources IND570 modules from decommissioned plant equipment, factory overstock, and authorized distributor closeouts. All units are inspected, tested, and documented before dispatch. We support single-unit emergency replacement orders and bulk procurement for multi-site maintenance programs. Typical lead time for in-stock IND570 boards is 1–3 business days; for rare configurations, 5–10 business days after sourcing confirmation. Requests for specific firmware-matched board sets (required when replacing main PCBs in calibrated legal-for-trade installations) are handled with full traceability documentation.

Quality Control for the IND570 Range

IND570 modules present specific test challenges due to the platform's mixed analog/digital backplane architecture and its reliance on calibration data stored in non-volatile memory on the main PCB. DriveKNMS applies the following test protocol to all IND570 boards prior to shipment:

• Visual inspection: solder joint integrity, capacitor condition, connector pin alignment, conformal coating assessment
• Power-on test: supply rail verification (3.3V, 5V, 12V) under load using calibrated bench supply
• Functional test: terminal boot sequence verification, display output confirmation, keypad matrix scan
• Scale interface test: analog boards are tested with a calibrated load cell simulator across the full mV/V input range; IDNet boards are tested with a reference SICSpro base
• Communication board test: fieldbus boards are tested for correct node enumeration and data exchange using protocol-specific test masters (PROFIBUS DP master, EtherNet/IP scanner)
• Burn-in: 24-hour powered soak at 40°C ambient to screen early-life failures
• Final documentation: test report issued with each unit, including serial number, firmware version (where readable), and test results
