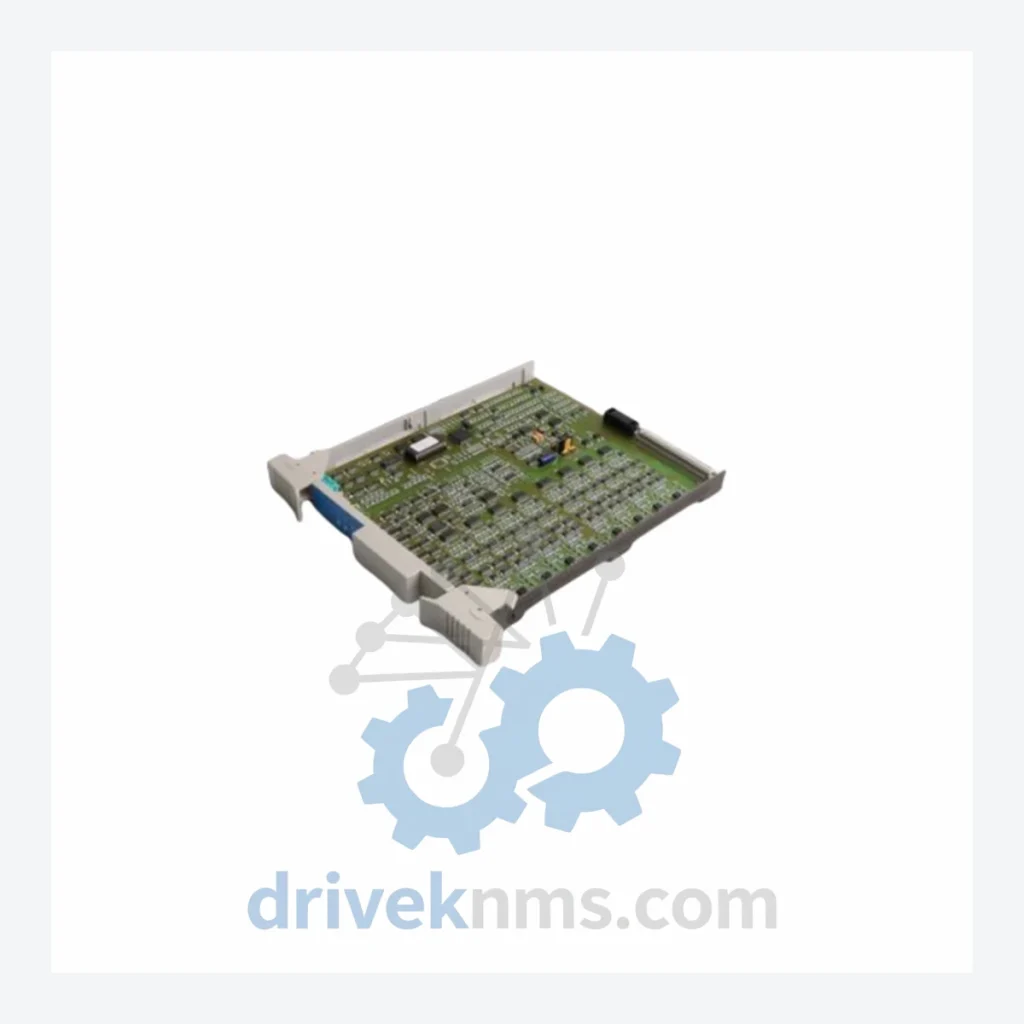

MICROSTAR MSXB048 Filter Board Modules: MSXB048-02-E2

Technical Dossier

Product Details And Specifications

MICROSTAR MSXB048 Series: Comprehensive Module Range and Technical Overview

The MICROSTAR MSXB048 series filter boards occupy a well-established position in industrial signal conditioning and I/O interface applications across global heavy industries including petrochemical plants, nuclear power facilities, oil refineries, and large-scale manufacturing automation systems. Deployed extensively in distributed control system (DCS) backplane architectures, the MSXB048 range provides analog signal filtering, noise suppression, and channel isolation functions that are critical to maintaining measurement integrity in electrically noisy plant environments. These boards are found in legacy and mid-generation DCS installations where long-term operational continuity is prioritized over platform migration, making reliable spare parts availability a primary procurement concern for maintenance engineers worldwide.

The Evolution of MSXB048 Architecture

The MSXB048 architecture was developed as part of MICROSTAR's signal conditioning board family, designed to interface with high-density analog I/O subsystems in process control environments. Early revisions of the MSXB048 series focused on passive RC filter networks for single-ended analog inputs, providing basic anti-aliasing and EMI rejection. Subsequent engineering revisions introduced active filter topologies, improved channel-to-channel isolation, and enhanced ESD protection to meet the demands of high-voltage industrial environments.

The -E2 revision designation on the MSXB048-02-E2 indicates a second-generation engineering change that typically addresses PCB layout improvements, component substitutions for long-term supply chain stability, and compliance updates to industrial EMC standards. Compatibility between MSXB048 revisions and their host backplane or carrier boards must be verified against the specific DCS platform revision matrix, as connector pinouts and firmware handshake protocols may differ between early and late production runs. For installations where the original revision is no longer available, DriveKNMS maintains cross-reference data to identify functionally equivalent replacement options.

MSXB048 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented MSXB048 series range. Each entry reflects a distinct hardware configuration, revision level, or channel density variant within the filter board family:

MSXB048-02-E2: 2-channel analog filter board, E2 engineering revision, standard backplane mount
MSXB048-02-E1: 2-channel analog filter board, E1 first-generation revision
MSXB048-04-E2: 4-channel analog filter board, E2 revision, increased I/O density
MSXB048-04-E1: 4-channel analog filter board, original E1 production revision
MSXB048-08-E2: 8-channel analog filter board, E2 revision, high-density signal conditioning
MSXB048-08-E1: 8-channel analog filter board, E1 revision, legacy DCS installations
MSXB048-16-E2: 16-channel analog filter board, E2 revision, full-rack I/O configuration
MSXB048-16-E1: 16-channel analog filter board, E1 revision, early production variant
MSXB048-02-E3: 2-channel filter board, E3 revision with updated passive components
MSXB048-04-E3: 4-channel filter board, E3 revision, RoHS-compliant component set
MSXB048-08-E3: 8-channel filter board, E3 revision, enhanced EMI suppression
MSXB048-16-E3: 16-channel filter board, E3 revision, latest production standard
MSXB048-02-E2-R: 2-channel filter board, E2 revision, conformal-coated variant for harsh environments
MSXB048-04-E2-R: 4-channel filter board, E2 revision, conformal-coated for high-humidity applications
MSXB048-08-E2-R: 8-channel filter board, E2 revision, conformal-coated, offshore/marine rated
MSXB048-16-E2-R: 16-channel filter board, E2 revision, conformal-coated, full-density marine variant

Sourcing Hard-to-Find & Obsolete MSXB048 Parts

The MSXB048 series has entered the mature-to-declining phase of its product lifecycle. MICROSTAR no longer actively promotes this board family for new installations, and original factory lead times for E1 and early E2 revisions are extended or indefinite. For plant operators running DCS systems dependent on MSXB048 filter boards, unplanned downtime caused by board failure represents a significant operational and financial risk.

DriveKNMS maintains a dedicated inventory of MSXB048 series boards sourced through authorized surplus channels, decommissioned plant equipment, and verified third-party supply networks. Our procurement team actively tracks global availability of all MSXB048 variants, including low-volume E1 revisions and conformal-coated -R suffix models that are rarely stocked by general distributors. For customers requiring long-term maintenance agreements or scheduled replacement programs, DriveKNMS can provide forward-stocking arrangements to ensure continuity of supply for critical spare parts over multi-year maintenance cycles.

Quality Control for the MSXB048 Range

Filter boards in the MSXB048 series present specific testing challenges due to their passive and active analog signal paths, multi-layer PCB construction, and sensitivity to electrostatic discharge. DriveKNMS applies a structured inspection and functional test protocol to all MSXB048 units prior to shipment:

Visual inspection covers PCB trace integrity, solder joint condition, component seating, and connector pin alignment. All units are inspected under magnification for micro-fractures and corrosion consistent with long-term storage or field removal. Functional testing replicates the board's operational environment by applying calibrated analog input signals across all channels and verifying filter attenuation characteristics, output linearity, and channel isolation against the original MICROSTAR specification sheet. Backplane connector continuity is verified using automated pin-mapping fixtures to confirm correct signal routing before board release. Units that do not meet specification are quarantined and documented; no out-of-specification boards are shipped under any circumstances.

For procurement inquiries, cross-reference requests, or bulk spare parts sourcing for the MSXB048 series:
