Mitsubishi MELDAS E70 Series: Comprehensive Module Range and Technical Overview

The Mitsubishi MELDAS E70 series is a compact CNC controller platform deployed across global heavy industry sectors including automotive body-in-white lines, precision machining centers, chemical plant auxiliary equipment, and nuclear facility maintenance tooling. Introduced as a cost-optimized successor to the MELDAS 60/64 architecture, the E70 series achieved widespread adoption in Asia-Pacific and European OEM machine tool markets throughout the 2000s and 2010s. Its integrated servo amplifier interface, standardized SRAM-based parameter storage, and compatibility with Mitsubishi MR-J2S/MR-J3 servo drives made it a default specification for mid-range CNC retrofits. Installed base estimates place the E70 series in tens of thousands of active machine tools globally, creating sustained demand for spare boards, CPU assemblies, and I/O expansion modules well beyond the platform's active production window.

The Evolution of MELDAS E70 Architecture

The MELDAS E70 platform was derived from Mitsubishi Electric's broader MELDAS 60 series CNC architecture, which itself succeeded the MELDAS 50 series in the mid-1990s. The E70 introduced a consolidated single-board CPU design — exemplified by the E70CB15B motherboard — replacing the multi-card backplane arrangement of earlier MELDAS 60/64 systems. This consolidation reduced rack space requirements and simplified field replacement procedures, but also created tighter interdependencies between the CPU, memory, and communication subsystems on a single PCB.

Early E70 revisions (suffix A/B boards) used through-hole and mixed SMD construction with EPROM-based firmware storage. Later revisions (suffix C and beyond) transitioned to fully surface-mount designs with flash-based firmware, improving field reprogrammability. The E70 series maintained backward compatibility with MELDAS 60-era PLC ladder programs via Mitsubishi's GX Developer and MT Developer toolchains, a critical factor for machine tool builders managing long-lifecycle equipment fleets.

By approximately 2015–2018, Mitsubishi transitioned active development to the MELDAS C70 and M80 series, positioning the E70 as a mature/end-of-life platform. Spare part availability from OEM channels declined progressively after 2020. The current installed base relies on aftermarket suppliers, refurbished board exchanges, and component-level repair services for lifecycle extension.

MELDAS E70 Full Catalog & Functionalities (SKU List)

CPU & Motherboard Assemblies

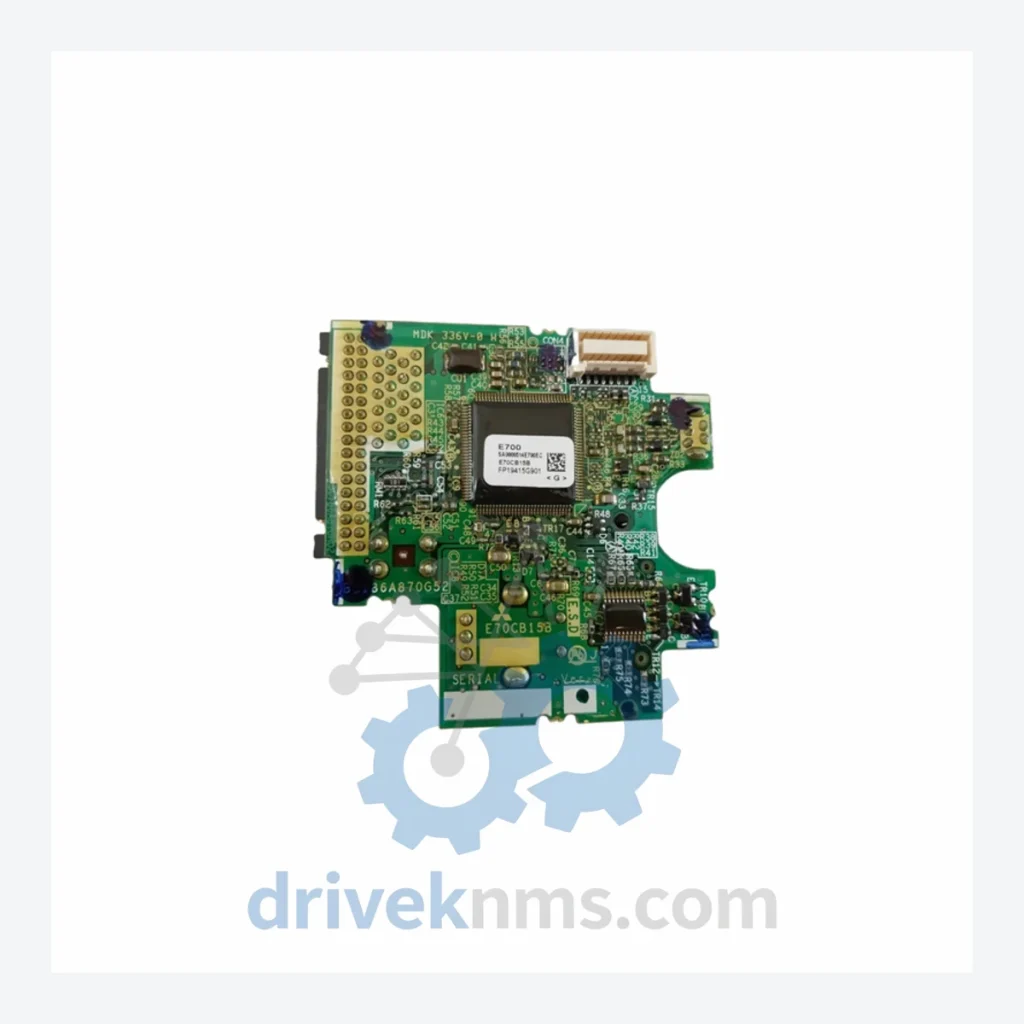

• E70CB15B: Main CPU motherboard assembly for MELDAS E70 CNC controller; integrates processor, SRAM, and primary bus interface.
• E70CB15A: Earlier revision CPU motherboard; functionally equivalent to E70CB15B with through-hole dominant PCB construction.
• E70CB20B: Enhanced CPU board variant with expanded SRAM capacity for multi-axis configurations up to 4 axes.
• E70CB10B: Entry-level CPU board for 2-axis E70 configurations; reduced I/O expansion capability.

I/O Interface Modules

• E70DI32A: 32-point digital input module; 24VDC sink/source compatible; DIN rail mount.
• E70DO32A: 32-point digital output module; transistor output, 24VDC/0.1A per point.
• E70DIO6416: Combined 64-input / 16-output mixed I/O expansion board for high-density machine interfaces.
• E70AI4B: 4-channel analog input module; 12-bit resolution; ±10V / 4–20mA selectable per channel.
• E70AO2B: 2-channel analog output module; 12-bit DAC; used for spindle speed reference and feed override signals.

Communication & Network Adapters

• E70RS232B: RS-232C serial communication interface board; used for DNC program transfer and external device handshaking.
• E70RS422B: RS-422/485 multi-drop communication adapter; supports up to 32 nodes on a single bus segment.
• E70ETHB: Ethernet 10/100BASE-T communication module; enables TCP/IP-based program transfer and remote monitoring.
• E70PROFB: PROFIBUS-DP slave adapter; connects E70 CNC to Siemens S7 or other PROFIBUS master systems.

Power Supply Units

• E70PSU24A: 24VDC internal power supply board; 5A rated; provides logic power to CPU and I/O backplane.
• E70PSU5A: 5VDC auxiliary power supply module; dedicated logic rail for early-revision E70 CPU boards.

Display & Operator Interface

• E70LCD8B: 8.4-inch color LCD display unit with integrated touch panel; direct replacement for E70 operator station.
• E70MDI01: Manual data input (MDI) keyboard unit; full G-code entry keypad with function key array.

Sourcing Hard-to-Find & Obsolete MELDAS E70 Parts

The MELDAS E70 series entered end-of-life status with Mitsubishi Electric's factory channels between 2018 and 2022 depending on specific part numbers. OEM lead times for remaining new-old-stock (NOS) units are unpredictable, and many part numbers are no longer listed in Mitsubishi's active spare parts catalog. DriveKNMS maintains a dedicated inventory of E70 series boards sourced through authorized decommissioning programs, factory-surplus channels, and tested pull-outs from retired machine tools.

For critical production environments — petrochemical plants, automotive stamping lines, aerospace component machining — unplanned CNC downtime carries direct financial exposure measured in thousands of dollars per hour. DriveKNMS provides same-day shipping on in-stock E70 modules and offers board-exchange programs for units requiring component-level repair. All refurbished boards are returned to OEM specification and carry a 12-month functional warranty.

Quality Control for the MELDAS E70 Range

The E70CB15B and related CPU boards present specific test challenges due to their integrated bus architecture. DriveKNMS applies a structured validation protocol to all E70 modules prior to dispatch:

• Power-on functional test: Board is energized in a dedicated E70 test rack with known-good peripheral modules. Boot sequence, SRAM integrity check, and firmware version readback are verified.
• Backplane bus continuity: All data, address, and control bus lines are verified for continuity and correct impedance using automated bed-of-nails fixtures.
• I/O channel verification: For I/O modules, each digital and analog channel is exercised through its full operating range. Analog modules are calibrated against a traceable reference standard.
• Communication port loopback: RS-232C, RS-422, and Ethernet ports are tested with loopback adapters and protocol analyzers to confirm correct framing and error-free data transfer.
• Thermal soak: Boards are operated at 50°C ambient for a minimum of 2 hours to screen for latent thermal failures in electrolytic capacitors and power semiconductors.
• Visual and X-ray inspection: PCB is inspected for cold solder joints, cracked traces, and capacitor bulge. High-density BGA components are inspected by X-ray where applicable.
