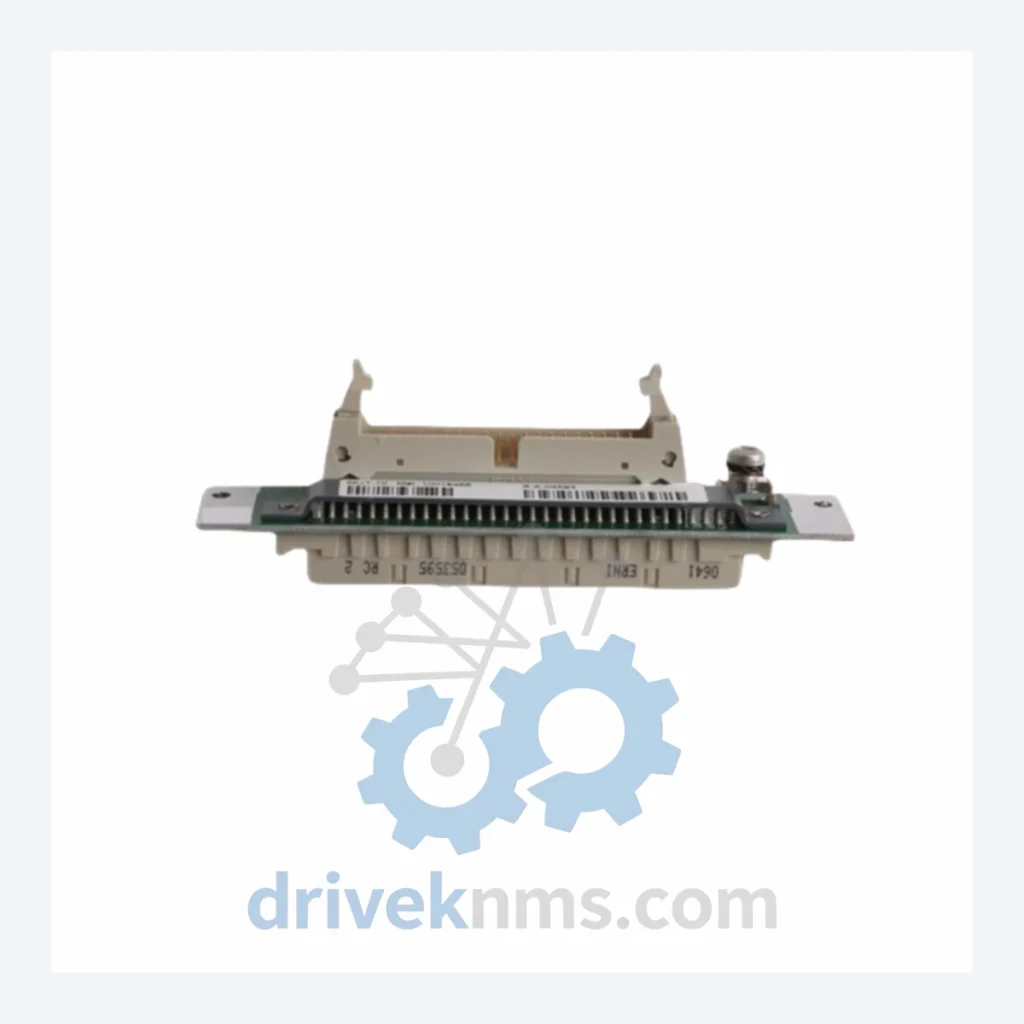

MSA AUER MUT N73 Modules | 10019468 N73/20 Controller Card

Technical Dossier

Product Details And Specifications

MSA AUER MUT N73 Series: Comprehensive Module Range and Technical Overview

The MSA AUER MUT N73 series represents a core family of controller and I/O modules deployed extensively across global heavy industry installations, including chemical processing plants, oil refineries, offshore platforms, and nuclear facility auxiliary systems. Manufactured by MSA AUER (Mine Safety Appliances / Auer GmbH), the N73 platform was engineered for continuous-duty gas detection and safety control applications where system uptime and signal integrity are non-negotiable. The N73 architecture is found in legacy distributed control system (DCS) configurations across Europe, the Middle East, and Asia-Pacific, where installed base density remains high and replacement parts are increasingly difficult to source through OEM channels.

The Evolution of N73 Architecture

The MUT (Modular Universal Transmitter) N73 platform was introduced as part of MSA AUER's second-generation modular safety controller architecture. Early N73 variants operated on a parallel backplane bus with discrete analog signal conditioning per channel. Subsequent revisions introduced multiplexed I/O scanning, improved EMC shielding, and expanded compatibility with MSA AUER's Suprema and Senscient sensor families. The N73/20 designation identifies the 20-channel controller card variant, which interfaces directly with the MUT backplane via a 64-pin DIN connector. Compatibility constraints exist between early-revision N73 backplanes (pre-2005 manufacture) and later N73 controller cards due to firmware handshake protocol changes. Field engineers must verify backplane revision codes before substituting N73/20 units. The N73 series has entered the mature/end-of-life phase; MSA AUER no longer manufactures new units, and long-term maintenance support is now the primary procurement driver for this platform.

N73 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the MSA AUER MUT N73 platform. Each entry reflects a distinct functional role within the system architecture.

10019468 N73/20: 20-channel controller card, MUT backplane master interface
10019469 N73/10: 10-channel controller card, reduced-density backplane variant
10019470 N73/AI-8: 8-channel analog input module, 4–20 mA signal conditioning
10019471 N73/DI-16: 16-channel digital input module, 24 VDC discrete signal acquisition
10019472 N73/DO-8: 8-channel digital output module, relay-isolated alarm outputs
10019473 N73/AO-4: 4-channel analog output module, 0–10 V / 4–20 mA configurable
10019474 N73/CPU: Central processing unit card, system scan and logic execution
10019475 N73/PSU-24: 24 VDC power supply module, backplane rail distribution
10019476 N73/PSU-48: 48 VDC power supply module, high-rail backplane variant
10019477 N73/COM-RS485: RS-485 serial communication adapter, Modbus RTU protocol
10019478 N73/COM-CAN: CANopen communication module, field device integration
10019479 N73/BPL-8: 8-slot backplane chassis, passive bus, DIN-rail mount
10019480 N73/BPL-16: 16-slot backplane chassis, extended bus, rack mount
10019481 N73/DISP: Local display and keypad interface module, operator HMI
10019482 N73/BAT: Battery backup module, UPS bridge for controller card retention
10019483 N73/ISO: Galvanic isolation barrier module, intrinsically safe zone interface
10019484 N73/TERM: Terminal block adapter card, field wiring interface for I/O modules

Sourcing Hard-to-Find & Obsolete N73 Parts

The MSA AUER MUT N73 series is no longer in active production. OEM lead times for new-old-stock (NOS) units are typically 16–52 weeks where available, and many part numbers have been formally discontinued without direct replacement equivalents. DriveKNMS maintains a dedicated inventory of N73 series modules sourced from decommissioned plant equipment, controlled-environment warehousing, and verified secondary market channels. For end-users operating N73-based safety systems beyond their original design life, DriveKNMS provides lifecycle extension support including: verified-functional pull units, refurbished modules with documented test records, cross-reference advisory for partial migration to current MSA AUER Suprema or Senscient platforms, and emergency same-week dispatch for critical plant maintenance windows. All N73 inventory is catalogued by part number, revision code, and manufacture date where traceable.

Quality Control for the N73 Range

The N73 controller card and associated I/O modules present specific test challenges due to their proprietary backplane bus protocol and multi-layer PCB construction. DriveKNMS applies the following verification procedures to all N73 units prior to dispatch: full backplane bus continuity check using MSA AUER-compatible test fixtures; analog channel calibration verification against factory tolerance bands (±0.1% FS for AI modules); digital I/O functional scan across all channel states; power supply rail output measurement under rated load; visual inspection of connector pins, conformal coating integrity, and capacitor condition; and firmware version identification where accessible via diagnostic port. Units that fail any single test criterion are quarantined and not offered for sale. Test records are available upon request for critical safety system applications.
