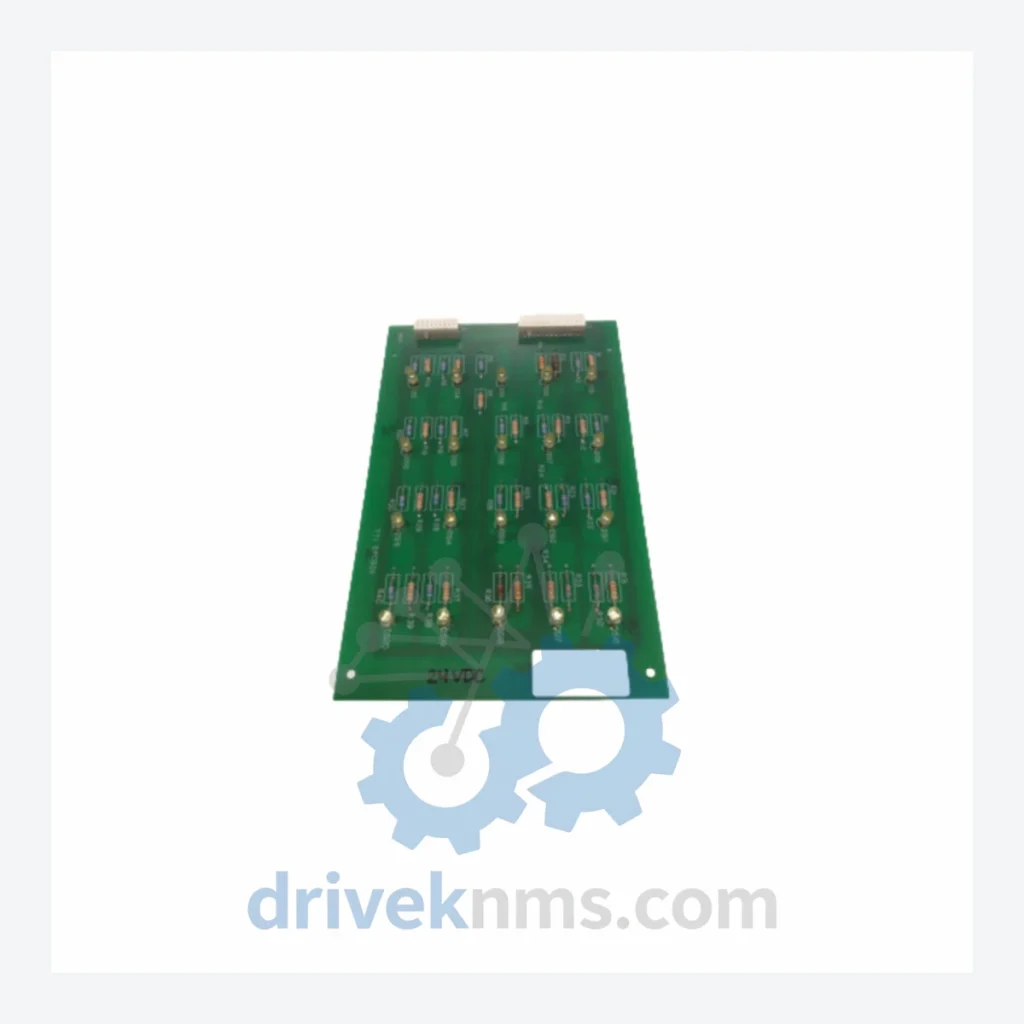

NEC Y6XC24 NDR064RTP869 PCB Controller Card Module

Technical Dossier

Product Details And Specifications

NEC NDR064RTP869 Series: Comprehensive Module Range and Technical Overview

The NEC NDR064RTP869 series PCB controller card modules are deployed across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, and large-scale chemical processing plants. The Y6XC24 board is a core controller card within NEC's distributed control architecture, designed for high-reliability environments where mean time between failures (MTBF) and deterministic signal processing are primary engineering constraints. NEC's industrial control hardware has maintained a significant installed base across Asia-Pacific and European process industries, with many facilities operating legacy NEC DCS platforms well beyond their original design lifecycle.

The Evolution of NDR064RTP869 Architecture

NEC's industrial PCB controller card lineage evolved through several distinct hardware generations. Early-generation boards used through-hole component construction with discrete logic ICs and parallel bus architectures. Mid-generation revisions introduced surface-mount technology (SMT), ASIC-based signal conditioning, and proprietary backplane communication protocols. The NDR064RTP869 generation represents a mature SMT design with integrated watchdog circuitry, optically isolated I/O interfaces, and onboard EEPROM for parameter retention during power loss events.

Compatibility across hardware revisions is constrained by backplane connector pinout changes and firmware version dependencies. Substituting a Y6XC24 board across different NDR sub-revisions requires verification of the hardware revision suffix and associated firmware baseline. Facilities running mixed-revision backplanes must maintain accurate revision mapping to avoid communication faults on the process bus.

As NEC has progressively exited the industrial automation hardware market, the NDR064RTP869 series has entered end-of-life status. No new production runs are scheduled. Installed base support now depends entirely on the secondary market and specialist MRO suppliers.

NDR064RTP869 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the NEC NDR064RTP869 and closely related Y6XC24 controller card family. Each entry reflects a distinct functional role within the NEC DCS backplane architecture:

Y6XC24 NDR064RTP869: Main PCB controller card, process bus master interface, onboard watchdog and EEPROM retention.
Y6XC24 NDR064RTP870: Revised controller card, updated firmware baseline, enhanced EMI shielding layer.
Y6XC24 NDR064RTP871: Controller card with extended temperature rating for high-ambient enclosures.
Y6XC24 NDR064RTP872: Dual-redundant controller variant, hot-standby switchover support.
Y6XC24 NDR064RTP873: Controller card with expanded onboard diagnostic register set.
Y6XC24 NDR064RTP874: Low-power variant, reduced standby current draw for UPS-backed panels.
Y6XC24 NDR064RTP875: Controller card with integrated serial communication port (RS-422).
Y6XC24 NDR064RTP876: High-speed process bus variant, increased scan cycle throughput.
Y6XC24 NDR064RTP877: Controller card with onboard analog reference voltage generation.
Y6XC24 NDR064RTP878: Conformal-coated variant for high-humidity and coastal environments.
Y6XC24 NDR064RTP879: Controller card with extended EEPROM capacity for large parameter tables.
Y6XC24 NDR064RTP880: Backplane interface card, passive signal routing, no onboard processing.
Y6XC24 NDR064RTP881: I/O expansion interface card, supports up to 64 discrete I/O points.
Y6XC24 NDR064RTP882: Analog input module interface, 12-bit ADC resolution, 4–20 mA loop input.
Y6XC24 NDR064RTP883: Analog output module interface, 12-bit DAC resolution, isolated current output.
Y6XC24 NDR064RTP884: Digital input module, 24 VDC sourcing, optically isolated, 32-channel.
Y6XC24 NDR064RTP885: Digital output module, relay contact type, 16-channel, 2A per channel.
Y6XC24 NDR064RTP886: Communication adapter card, Modbus RTU master/slave, RS-485 interface.
Y6XC24 NDR064RTP887: Power supply interface card, 24 VDC regulated output, overcurrent protection.
Y6XC24 NDR064RTP888: Redundant power supply card, automatic failover, status LED indication.

Sourcing Hard-to-Find & Obsolete NDR064RTP869 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life NEC industrial control hardware. The NDR064RTP869 series is classified as a discontinued product line with no active manufacturer support. DriveKNMS sources Y6XC24 boards through verified decommissioning channels, including plant shutdowns, equipment auctions, and controlled surplus disposals from process industry operators.

All units are catalogued by hardware revision suffix and firmware version where readable. Customers requiring exact revision matches for backplane compatibility receive pre-shipment revision verification as standard. DriveKNMS maintains stock records for the NDR064RTP869 family and can cross-reference customer part numbers against known NEC internal revision tables. For facilities requiring long-term maintenance agreements covering the full NDR064RTP869 installed base, DriveKNMS offers consignment stocking arrangements and priority allocation programs.

Quality Control for the NDR064RTP869 Range

PCB controller cards in the NDR064RTP869 family undergo a structured inspection and functional test protocol prior to dispatch. Visual inspection covers solder joint integrity, component seating, connector pin condition, and conformal coating continuity where applicable. Backplane connector contacts are cleaned and inspected under magnification for fretting corrosion, which is a known failure mode in long-stored NEC controller cards.

Functional testing is performed using NEC-compatible backplane test fixtures that replicate the process bus electrical environment. Watchdog timer operation, EEPROM read/write cycles, and optoisolator response times are verified against original NEC factory test parameters where documentation is available. Boards exhibiting marginal performance on bus timing tests are quarantined and not offered for sale. Each dispatched unit is accompanied by a test record documenting the specific checks performed and the technician sign-off.
