OKUMA OSP-U100/U10 Series Memory Boards — E0227-702-008

Technical Dossier

Product Details And Specifications

OKUMA OSP-U100/U10 Series: Comprehensive Module Range and Technical Overview

The OKUMA OSP-U100 and OSP-U10 control series represents one of the most widely deployed CNC controller platforms in global heavy industry. Installed across petrochemical refineries, nuclear component machining facilities, automotive powertrain plants, and precision aerospace manufacturing lines, the OSP-U100/U10 architecture has maintained a dominant installed base since its introduction in the early 1990s. Its modular backplane design, deterministic real-time OS, and compatibility with OKUMA's proprietary THINC (The Intelligent Numerical Control) interface made it a preferred platform for high-mix, high-precision machining environments. The E0227-702-008 is a Memory Board module within this ecosystem, responsible for non-volatile program storage, parameter retention, and system state preservation across power cycles — a critical function in continuous-production environments where CNC program integrity directly affects part quality and machine uptime.

The Evolution of OSP-U100/U10 Architecture

OKUMA's OSP (Open System Platform) controller lineage progressed through several distinct generations. The OSP5000/5020 series (1980s) used proprietary bus architectures with limited modularity. The OSP-U10 (introduced circa 1992) marked the transition to a standardized VME-compatible backplane with discrete functional boards — CPU, memory, I/O, and communication — each independently replaceable. The OSP-U100 (mid-1990s) expanded memory addressing, introduced higher-speed servo communication via MECHATROLINK-compatible protocols, and added support for larger part programs and more complex macro variables.

The OSP-U100L and OSP-U100M variants introduced lathe- and machining-center-specific I/O configurations while retaining board-level compatibility with the core U100 backplane. By the early 2000s, OKUMA transitioned toward the OSP-P200 and OSP-P300 platforms, which consolidated multiple discrete boards into integrated SBC (Single Board Computer) architectures. As a result, the entire OSP-U100/U10 board set — including the E0227-702-008 Memory Board — is now classified as end-of-life (EOL) by OKUMA Corporation, with no new production. Compatibility between U10 and U100 boards is partial: memory and I/O boards are generally interchangeable within the same backplane generation, but CPU and communication boards require version matching.

OSP-U100/U10 Full Catalog & Functionalities (SKU List)

CPU & Main Processor Boards

• E4809-045-001: Main CPU board for OSP-U100M machining center controllers, 32-bit processor.
• E4809-045-002: Main CPU board variant for OSP-U100L lathe controllers.
• E4809-032-001: CPU board for OSP-U10 series, earlier 16/32-bit hybrid architecture.
• E4809-770-001: Sub-CPU board, handles auxiliary axis interpolation and PLC ladder execution.

Memory Boards

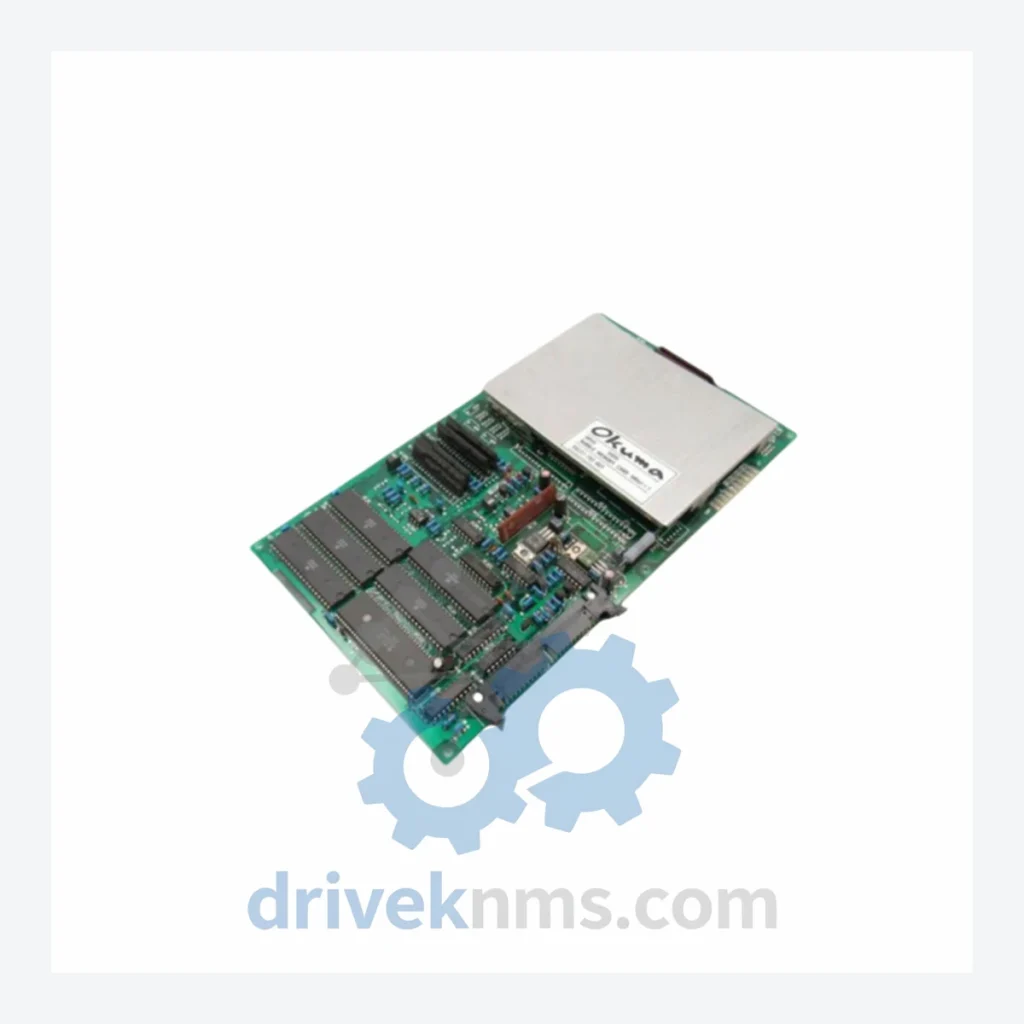

• E0227-702-008: Memory board for OSP-U100/U10; non-volatile SRAM storage for NC programs, parameters, and tool offset data.
• E0227-702-004: Earlier memory board revision with reduced SRAM capacity; used in OSP-U10 base configurations.
• E0227-702-012: Extended memory board variant supporting larger part program storage pools (>2MB NC program memory).

I/O Interface Boards

• E4809-436-001: Digital I/O board, 32 DI / 32 DO, 24VDC, for machine tool interface signals.
• E4809-436-002: Expanded DI/DO board, 64 DI / 64 DO configuration for complex machine tool integration.
• E4809-045-101: Analog I/O board, 8-channel 12-bit ADC/DAC for spindle override and feed rate analog inputs.
• E4809-032-101: I/O relay board for OSP-U10, handles emergency stop and safety relay logic.

Communication & Network Adapter Boards

• E4809-770-101: RS-232C / RS-422 serial communication board for DNC and program transfer.
• E4809-770-201: Ethernet communication board (10BASE-T), enables network-based DNC and remote diagnostics.
• E4809-045-201: MECHATROLINK-II servo communication board for high-speed axis control.

Power Supply Boards

• E4809-032-201: Backplane power distribution board, +5V / ±12V / +24V regulated outputs for OSP-U10 chassis.
• E4809-045-301: Power supply board for OSP-U100 chassis; includes over-voltage and short-circuit protection circuits.
• E0227-500-001: Battery backup board for SRAM retention; maintains memory board data during power-off periods.

Sourcing Hard-to-Find & Obsolete OSP-U100/U10 Parts

OKUMA officially discontinued new production of OSP-U100/U10 series boards in the early 2010s. Standard OEM channels no longer stock these modules. For facilities operating legacy OKUMA machines — particularly in industries where capital equipment replacement cycles span 20–30 years (nuclear, petrochemical, heavy forging) — sourcing functional replacement boards is a critical maintenance challenge.

DriveKNMS maintains a dedicated inventory of tested OSP-U100/U10 modules, including the E0227-702-008 Memory Board and related assemblies. Our sourcing network covers decommissioned machine tool inventories, authorized refurbishment channels, and cross-regional surplus markets in Japan, Germany, and the United States. For end-users requiring long-term maintenance agreements (LTMAs) covering OSP-U100/U10 board sets, DriveKNMS provides multi-year supply commitments with defined lead times and condition guarantees. All modules are supplied with full traceability documentation and test reports.

Quality Control for the OSP-U100/U10 Range

OSP-U100/U10 boards present specific test challenges due to their SRAM-based memory architecture, battery-backed retention circuits, and proprietary backplane bus protocols. DriveKNMS applies the following verification procedures to all E0227-702-008 and related memory boards prior to dispatch:

• SRAM Integrity Test: Full read/write/verify cycle across all addressable memory locations using dedicated OKUMA-compatible test fixtures. Detects bit-level failures, address line faults, and data bus errors.
• Battery Retention Verification: Onboard lithium battery voltage measurement and retention time test. Batteries below 2.8V or with <12 months estimated life are replaced as standard.
• Backplane Bus Communication Test: Board is seated in a live OSP-U100/U10 test chassis and subjected to full system initialization, parameter load, and NC program read/write cycles to confirm bus arbitration and data integrity.
• Thermal Cycling: Boards are cycled through operational temperature range (0°C to 55°C) to identify latent solder joint failures and capacitor degradation common in aged PCBs.
• Visual and Component Inspection: Microscopic inspection of all ICs, capacitors, and connectors. Electrolytic capacitors older than 15 years are replaced preventively.
