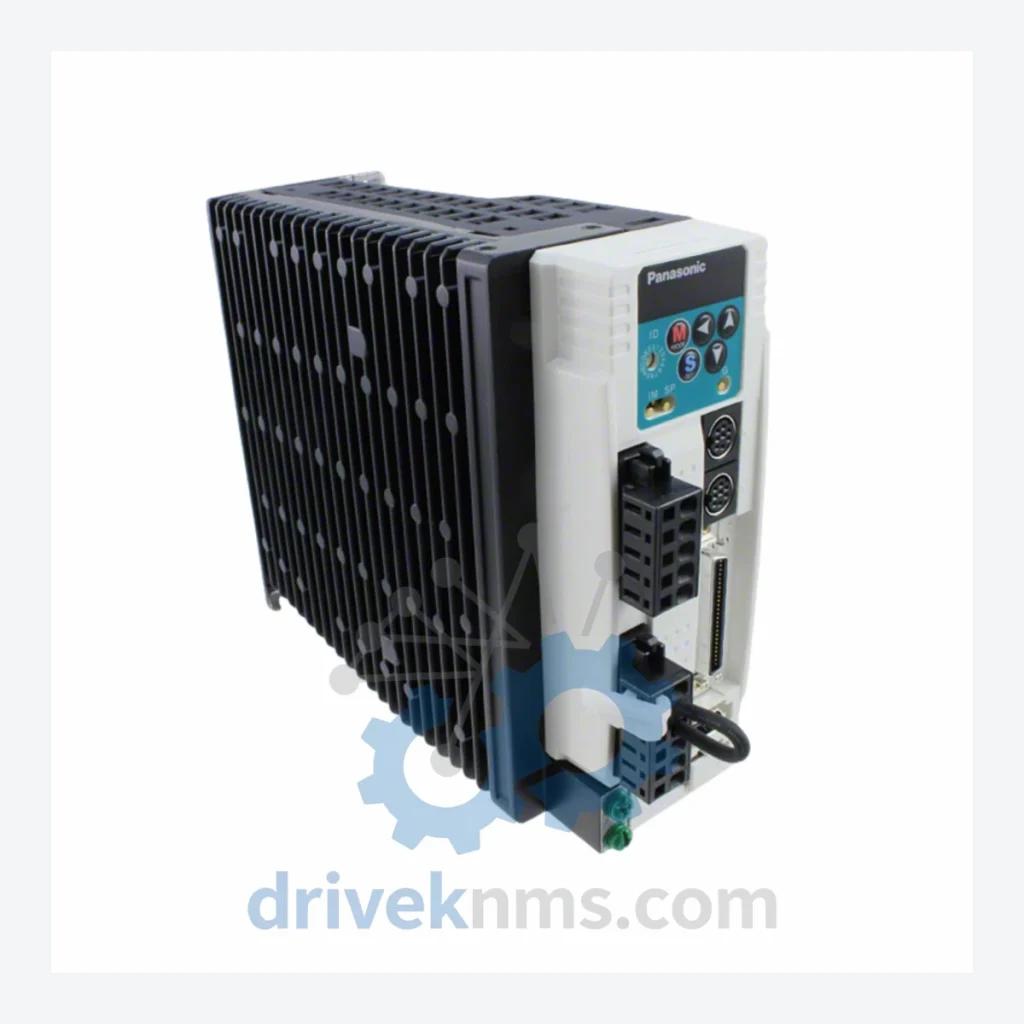

Panasonic MINAS A4 Series Servo Drivers: MCDDT3520003

Technical Dossier

Product Details And Specifications

Panasonic MINAS A4 Series: Comprehensive Module Range and Technical Overview

The Panasonic MINAS A4 series is a full-range AC servo system deployed across heavy industrial sectors including petrochemical plants, nuclear facility auxiliary systems, offshore drilling platforms, and continuous-process refineries. The A4 platform supports single-axis and multi-axis configurations with rated output spanning 50W to 5kW, making it a standard-specification servo solution in both OEM machine builds and process automation retrofits. Its installed base spans Asia-Pacific, Europe, and the Americas, with particularly high penetration in Japanese-origin capital equipment exported globally. The MCDDT3520003 is a 200W, 200V class driver within this series, widely used in precision positioning and tension control applications.

The Evolution of MINAS A4 Architecture

Panasonic's MINAS servo lineage progressed through the A, A4, A5, and A6 generations. The A4 series, introduced in the early 2000s, established the RTEX (Real-Time Express) and pulse-train interface dual-compatibility architecture that became a benchmark for mid-range servo systems. A4 drivers use a proprietary 2500 P/R incremental encoder as standard, with optional absolute encoder support via the MFECA0000 battery unit. The communication interface supports RS-232 and RS-485 via the MINAS TOOL III software environment. Compatibility with A5-series motors is limited and requires parameter remapping; A6-series motors are not backward-compatible with A4 drivers. For facilities still operating A4-based machine tools, the primary challenge is sourcing replacement drivers and encoder cables, as Panasonic has transitioned production focus to the A6 and X6 platforms. The A4 series is now in its end-of-life phase, with no new production runs confirmed.

MINAS A4 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the Panasonic MINAS A4 servo driver series, classified by output rating and interface type:

MCDDT1507003: 50W, 200V single-phase pulse-train input servo driver
MCDDT2207003: 100W, 200V single-phase pulse-train input servo driver
MCDDT3520003: 200W, 200V single-phase pulse-train input servo driver (this listing)
MCDDT5540003: 400W, 200V single-phase pulse-train input servo driver
MCDDT7364003: 750W, 200V single/three-phase pulse-train input servo driver
MCDDTB3B20003: 1kW, 200V three-phase pulse-train input servo driver
MCDDTB5B40003: 1.5kW, 200V three-phase pulse-train input servo driver
MCDDTB7B40003: 2kW, 200V three-phase pulse-train input servo driver
MCDDTC3C40003: 3kW, 200V three-phase pulse-train input servo driver
MCDDTD5D40003: 5kW, 200V three-phase pulse-train input servo driver
MFDDTB3A2: 1kW, 100V class single-phase A4 servo driver
MFDDTB5A2: 1.5kW, 100V class single-phase A4 servo driver
MFDDTA5A1: 400W, 100V class single-phase A4 servo driver
MFDDTA3A1: 200W, 100V class single-phase A4 servo driver
MFDDTA2A1: 100W, 100V class single-phase A4 servo driver
MFDDTA1A1: 50W, 100V class single-phase A4 servo driver

Sourcing Hard-to-Find & Obsolete MINAS A4 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life Panasonic MINAS A4 components. As Panasonic has ceased active production of the A4 driver range, procurement through standard distribution channels is no longer reliable. DriveKNMS sources A4 drivers through verified secondary market channels, decommissioned equipment recovery, and long-term warehousing partnerships. All units are inspected prior to listing. For customers operating legacy A4-based systems where a full servo system upgrade is not feasible within the current maintenance cycle, DriveKNMS provides a lifecycle extension service: matching replacement drivers, encoder cables (MFECA series), and regenerative resistor units are sourced and tested as a matched set. Minimum order quantities are not required for spare parts procurement. Emergency same-day quotation is available for critical production downtime situations.

Quality Control for the MINAS A4 Range

Each MINAS A4 driver processed by DriveKNMS undergoes a structured inspection protocol specific to the A4 platform's known failure modes. The primary test sequence includes: DC bus capacitor ESR measurement to assess electrolytic degradation; IGBT gate drive signal verification under simulated load conditions; encoder feedback signal integrity check at 2500 P/R resolution; parameter memory read/write cycle test via RS-232 using MINAS TOOL III; and thermal imaging of the power stage under 80% rated load for a minimum of 15 minutes. Units exhibiting capacitor bulge, IGBT leakage current above threshold, or encoder signal jitter exceeding ±2 counts are quarantined and not listed for sale. Refurbished units are clearly labeled and priced separately from new-old-stock (NOS) units.
