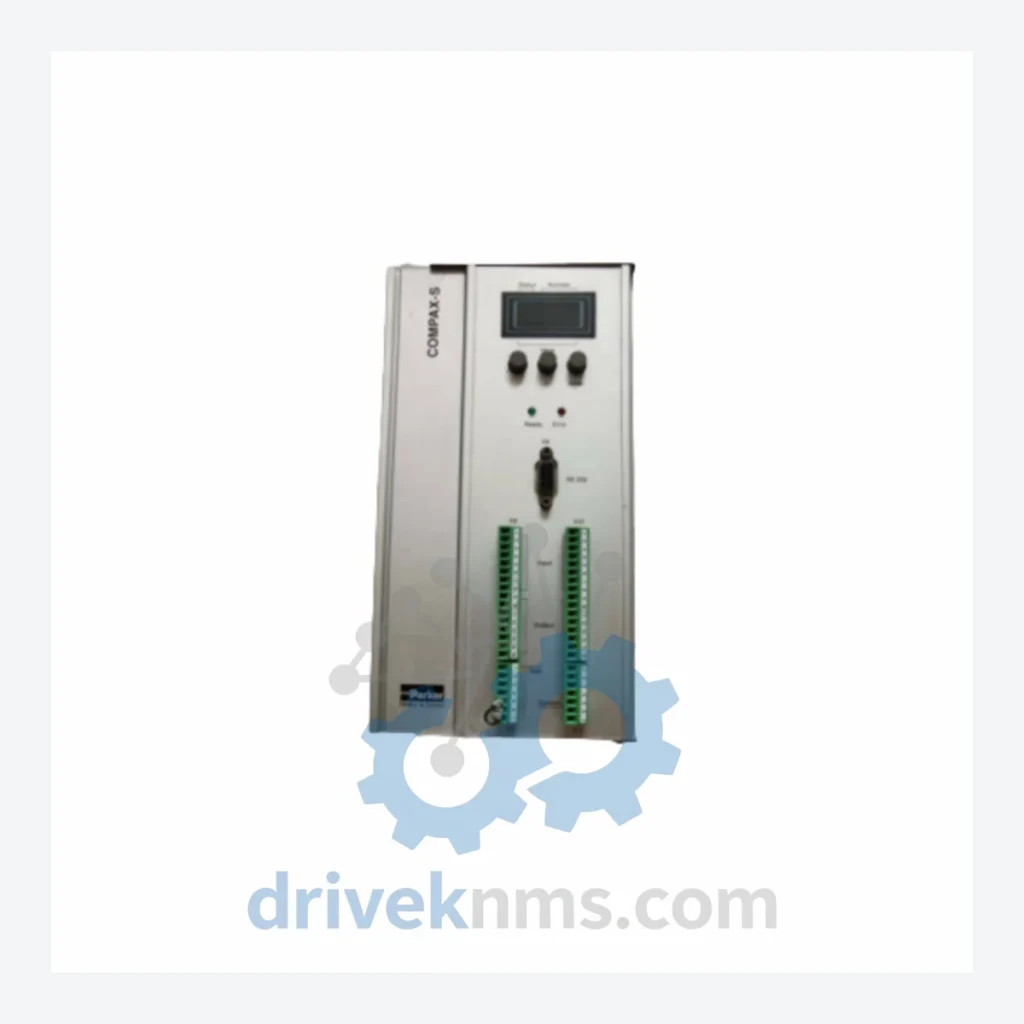

Parker COMPAX-S Modules: CPX2500S

Technical Dossier

Product Details And Specifications

Parker COMPAX-S Series: Comprehensive Module Range and Technical Overview

The Parker COMPAX-S series is a compact, high-performance servo drive platform developed by Parker Hannifin's Electromechanical Division (formerly Parker Compumotor). It has established a significant installed base across global heavy industry sectors including petrochemical processing plants, nuclear facility auxiliary systems, offshore drilling platforms, and continuous-process refinery automation. The COMPAX-S architecture is characterized by its integrated motion controller and drive functionality in a single-axis package, reducing panel space requirements and simplifying commissioning in environments where cabinet real estate is constrained. Its deployment in safety-critical and continuous-operation facilities has made long-term spare parts availability a primary procurement concern for maintenance engineers worldwide.

The Evolution of COMPAX-S Architecture

The COMPAX-S series was introduced as a successor to Parker's earlier standalone servo amplifier designs, consolidating motion control intelligence directly into the drive unit. Early variants operated on RS-232/RS-485 serial communication interfaces and were programmed via Parker's proprietary IDS (Integrated Development System) software environment. Mid-generation units introduced CANopen fieldbus compatibility, enabling integration into distributed control architectures common in chemical batch processing and packaging lines. Later revisions added PROFIBUS-DP support, extending compatibility with Siemens S7-series PLC ecosystems prevalent in European heavy industry installations.

The COMPAX-S series entered its maturity phase in the mid-2010s, with Parker transitioning its servo drive portfolio toward the COMPAX-3 and subsequently the ACR/ARIES/ATLAS platforms. As a result, the COMPAX-S is now classified as a legacy product line. Firmware updates and factory repair services have been discontinued by Parker OEM channels, making third-party refurbishment and spare unit sourcing the primary maintenance pathway for facilities with existing COMPAX-S installations. Units manufactured in Germany (primary production site) carry CE marking and were designed to IEC 61800-series drive safety standards applicable at time of manufacture.

COMPAX-S Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Parker COMPAX-S product family, organized by functional classification. Each unit integrates servo amplifier and motion controller functions unless otherwise noted.

Servo Drive / Controller Units:

• CPX2500S: Single-axis servo drive/controller, 2.5A continuous output, RS-232 programming interface, IDS software compatible.
• CPX5000S: Single-axis servo drive/controller, 5.0A continuous output, enhanced current loop bandwidth for high-dynamic applications.
• CPX10000S: Single-axis servo drive/controller, 10A continuous output, suitable for mid-torque servo motor pairings.
• CPX2500S-F: CPX2500S variant with integrated fieldbus option slot, supports CANopen DS402 motion profile.
• CPX5000S-F: CPX5000S with CANopen fieldbus interface, distributed axis control in multi-drive networks.
• CPX10000S-F: CPX10000S with CANopen fieldbus, high-current axis node for CANopen master systems.
• CPX2500S-P: CPX2500S with PROFIBUS-DP slave interface, integrates into Siemens and Schneider PLC architectures.
• CPX5000S-P: CPX5000S with PROFIBUS-DP, 5A axis node for PROFIBUS-based motion control cells.
• CPX10000S-P: CPX10000S with PROFIBUS-DP slave, high-current PROFIBUS axis for heavy-load servo applications.
• CPX2500S-DN: CPX2500S with DeviceNet slave interface, compatible with Allen-Bradley ControlLogix DeviceNet scanner modules.
• CPX5000S-DN: CPX5000S with DeviceNet, 5A drive node for Rockwell Automation DeviceNet motion networks.
• CPX2500S-E: CPX2500S with EtherCAT slave interface, later-generation fieldbus option for real-time Ethernet motion control.
• CPX5000S-E: CPX5000S with EtherCAT slave, high-speed cyclic PDO exchange for synchronous multi-axis coordination.
• CPX10000S-E: CPX10000S with EtherCAT, high-current EtherCAT axis node for gantry and heavy-axis applications.
• CPX20000S: Single-axis servo drive/controller, 20A continuous output, designed for large-frame servo motors in press and extrusion applications.
• CPX20000S-F: CPX20000S with CANopen fieldbus interface, high-power axis in distributed CANopen motion networks.
• CPX20000S-P: CPX20000S with PROFIBUS-DP slave, high-power PROFIBUS axis for heavy industrial servo cells.

Sourcing Hard-to-Find & Obsolete COMPAX-S Parts

DriveKNMS maintains a dedicated inventory program for Parker COMPAX-S units, targeting the gap created by OEM end-of-life declarations. Our sourcing network covers decommissioned industrial equipment from petrochemical, automotive, and food processing facilities across Europe and Asia-Pacific, providing access to low-hour and unused COMPAX-S units that are no longer available through Parker's authorized distribution channels.

For facilities operating COMPAX-S drives in continuous-process environments where unplanned downtime carries significant financial or safety consequences, DriveKNMS offers: verified surplus stock of CPX2500S, CPX5000S, CPX10000S, and CPX20000S base units and fieldbus variants; exchange programs allowing defective units to be swapped against tested replacements to minimize line stoppage duration; and long-lead procurement support for low-volume COMPAX-S variants including DeviceNet and EtherCAT interface models. All units are inspected prior to dispatch and shipped with full traceability documentation.

Quality Control for the COMPAX-S Range

Parker COMPAX-S drives incorporate a multi-layer internal architecture combining the power stage (IGBT bridge), current feedback circuitry, DSP-based motion controller, and fieldbus interface on a shared backplane. This integration, while space-efficient, requires systematic functional validation at each subsystem level during refurbishment and pre-shipment testing.

DriveKNMS applies the following test protocol to all COMPAX-S units processed through our facility: visual inspection of power connectors, encoder interface headers, and fieldbus option card seating; DC bus capacitor ESR measurement and leakage current verification; power stage IGBT switching test under controlled resistive load; encoder feedback signal integrity check (differential RS-422 signal levels, index pulse verification); serial communication port loopback test (RS-232/RS-485); fieldbus interface enumeration test where applicable (CANopen node detection, PROFIBUS GSD file parameter exchange, DeviceNet MAC ID assignment, EtherCAT ESC register read); and full motion profile execution test using Parker IDS software to verify velocity loop, position loop, and homing sequence functionality. Units that do not pass all applicable test stages are quarantined and not offered for sale.
