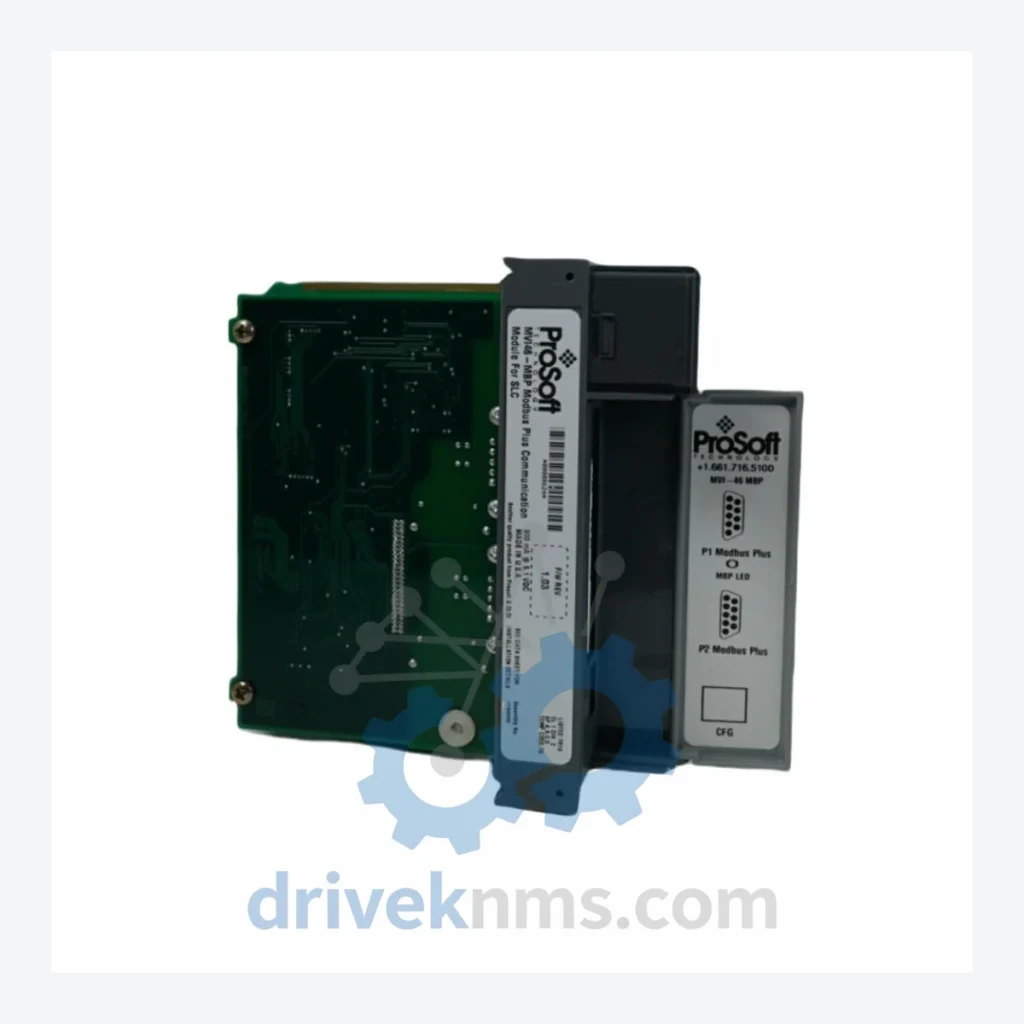

ProSoft Technology MVI46 Series Modules: MVI46-MBP,

Technical Dossier

Product Details And Specifications

ProSoft Technology MVI46 Series: Comprehensive Module Range and Technical Overview

The ProSoft Technology MVI46 series represents one of the most widely deployed third-party communication module platforms for the Allen-Bradley SLC 500 rack system. Installed across global heavy industry — including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and continuous process manufacturing — the MVI46 platform extends the native communication capability of the SLC 500 CPU by providing dedicated protocol conversion and multi-port serial/network interfaces. Each module occupies one slot in the SLC 500 rack and communicates with the SLC processor via the backplane using M0/M1 file data exchange, a deterministic and well-documented mechanism that has made the series a preferred integration layer in legacy DCS migration projects.

The Evolution of MVI46 Architecture

The MVI46 platform was introduced by ProSoft Technology in the late 1990s as a direct response to the SLC 500's limited native communication options — primarily DH+, DH-485, and RS-232 DF1. The first-generation modules used a single-port serial architecture with a fixed protocol stack burned into firmware. By the mid-2000s, ProSoft had migrated to a dual-port design with field-upgradeable firmware via RS-232 CFG port, enabling protocol parameter changes without hardware replacement.

The MVI46 architecture uses a shared memory model: the module maintains an internal database (typically 0–4999 registers) that is continuously mapped to SLC M0/M1 files via a configurable block transfer mechanism. This design decouples the protocol timing from the SLC scan cycle, which is critical in environments where fieldbus polling intervals are deterministic (e.g., Modbus RTU at 9600 baud with 32 nodes).

As the SLC 500 platform entered its mature/end-of-life phase (Rockwell Automation announced discontinuation of new SLC 500 hardware in 2012, with extended support through 2025), the MVI46 series transitioned from an active development platform to a long-term maintenance and spare parts category. ProSoft Technology has maintained firmware archives and replacement stock for the majority of MVI46 variants, though several early-generation models (e.g., MVI46-GSC, MVI46-ADM) are now sourced exclusively through authorized secondary market distributors.

MVI46 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, real-world MVI46 series modules categorized by protocol and function. Each model occupies one SLC 500 rack slot and interfaces via M0/M1 backplane file exchange.

Modbus Protocol Modules

MVI46-MBP: Modbus Plus network communication module, master/slave, single port, SLC 500 backplane interface via M0/M1 files.

MVI46-MCM: Modbus master/slave communication module, dual RS-232/RS-485 ports, supports up to 100 Modbus commands per port.

MVI46-MNET: Modbus TCP/IP Ethernet client/server module, 10/100 Mbps, supports up to 100 read/write commands.

MVI46-MNETR: Modbus TCP/IP with remote I/O adapter capability, redundant Ethernet port configuration support.

Profibus Protocol Modules

MVI46-PDPMV1: PROFIBUS DP-V1 master module, supports up to 125 slave devices, acyclic read/write services, GSD file-based configuration.

MVI46-PDPS: PROFIBUS DP slave module, configurable I/O data size, supports DPV0 cyclic data exchange with a DP master.

EtherNet/IP & Industrial Ethernet Modules

MVI46-DFNT: EtherNet/IP client/server module, supports explicit and implicit messaging, 10/100 Mbps auto-negotiate.

MVI46-DFCM: DF1 full-duplex/half-duplex master/slave communication module, RS-232 port, compatible with Rockwell DF1 protocol.

DeviceNet Modules

MVI46-DNET: DeviceNet master/slave scanner module, supports up to 64 nodes, explicit and polled I/O messaging.

Serial & Multi-Protocol Modules

MVI46-GSC: General purpose serial communication module, ASCII/generic serial protocol support, dual RS-232/RS-485 ports, user-configurable via ladder logic.

MVI46-ADM: Advanced diagnostic module for serial protocol monitoring and pass-through, used in commissioning and fault isolation.

MVI46-HART: HART master module, supports up to 16 HART devices per port, retrieves device variables and status for SLC 500 integration.

MVI46-LNG: Lonworks FTT-10A network interface module, supports up to 64 nodes, used in building automation and process control integration.

MVI46-103S: IEC 60870-5-103 slave module for protection relay communication, used in substation automation and power utility applications.

MVI46-101S: IEC 60870-5-101 slave module, serial balanced/unbalanced link layer, used in SCADA-to-RTU communication in power distribution networks.

MVI46-DNP: DNP3 master/slave module, supports DNP3 Level 2 compliance, used in water treatment and electric utility SCADA systems.

Sourcing Hard-to-Find & Obsolete MVI46 Parts

DriveKNMS maintains a dedicated inventory program for MVI46 series modules, with particular focus on variants that have exited ProSoft Technology's active production schedule. Models such as the MVI46-GSC, MVI46-ADM, MVI46-LNG, and first-generation MVI46-MCM units are no longer available through standard distribution channels and require sourcing from certified secondary market suppliers.

DriveKNMS sources MVI46 modules from decommissioned plant assets, controlled factory surplus, and verified OEM overstock. All units are inspected, firmware-verified, and tested against protocol-specific load conditions before dispatch. For facilities operating SLC 500 systems beyond their original design life — a common scenario in chemical processing and power generation where control system replacement is deferred due to capital constraints — DriveKNMS provides a documented lifecycle extension service including module exchange programs and configuration backup support.

Quality Control for the MVI46 Range

MVI46 modules present specific quality control challenges due to their dual-interface architecture: the backplane M0/M1 bus interface must be validated independently from the front-panel protocol port(s). DriveKNMS applies a three-stage test protocol to all MVI46 units:

Stage 1 — Backplane Interface Validation: Each module is seated in a live SLC 500 rack (1746-A7 or 1746-A13 chassis) with a 1747-L553 or equivalent CPU. M0/M1 file read/write integrity is verified across the full configured block size using ladder logic test routines. Backplane communication errors, module fault bits, and LED status codes are logged.

Stage 2 — Protocol Port Functional Test: The front-panel communication port(s) are connected to a protocol-specific test master or slave device. For MVI46-MBP, this involves a Modbus Plus network tap and a reference node. For Modbus RTU variants, a calibrated RS-485 loop with known register maps is used. Command execution, error response handling, and timeout behavior are verified against ProSoft's published protocol specification.

Stage 3 — Firmware and Configuration Integrity: Module firmware version is read via the CFG port and compared against ProSoft's firmware archive. Configuration files are validated using ProSoft Configuration Builder (PCB) where applicable. Units with corrupted or mismatched firmware are reflashed prior to dispatch.
