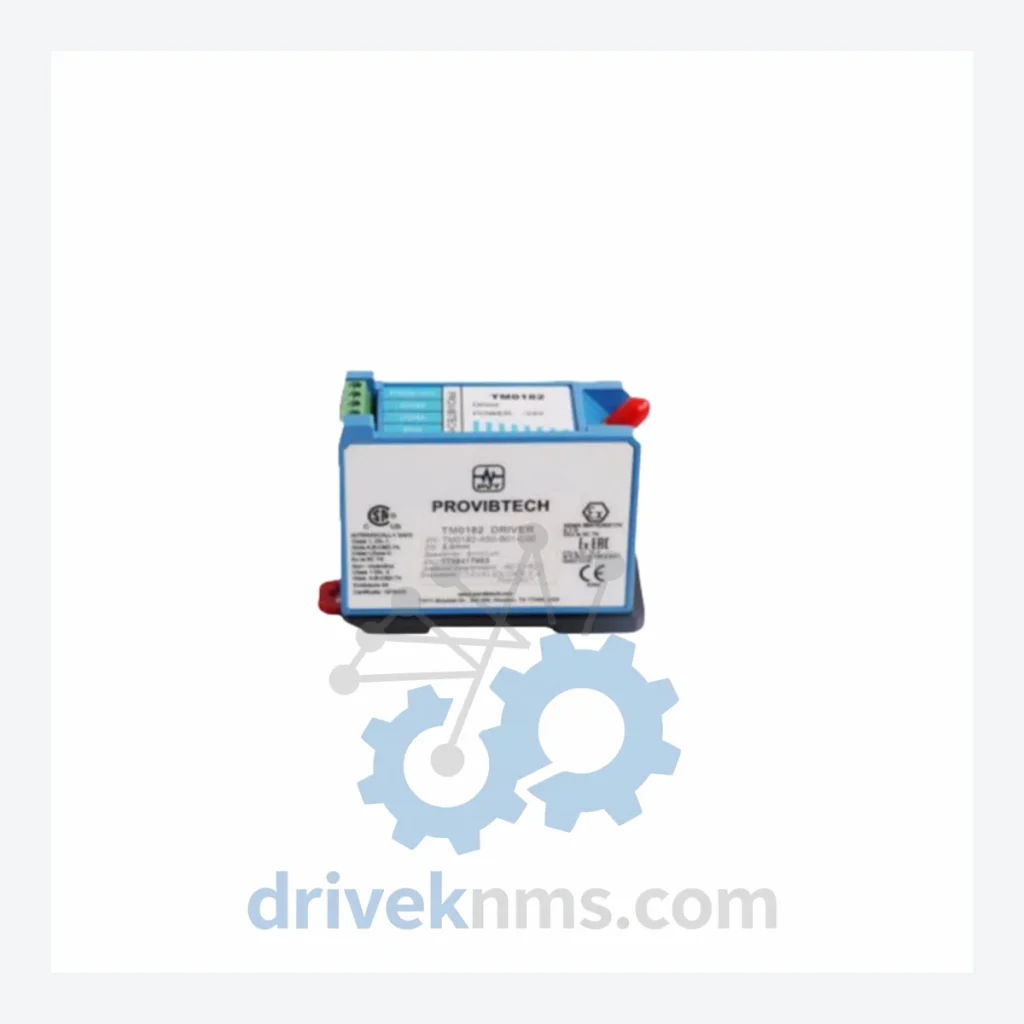

PROVIBTECH TM0182 Programmable Controllers: TM0182-A50-B00-C00

Technical Dossier

Product Details And Specifications

PROVIBTECH TM0182 Series: Comprehensive Module Range and Technical Overview

The PROVIBTECH TM0182 series is a line of programmable controllers and associated I/O modules deployed extensively in heavy industrial environments including petrochemical plants, offshore platforms, power generation facilities, and rotating machinery protection systems. PROVIBTECH, a recognized OEM in the machinery monitoring and protection segment, engineered the TM0182 platform to interface directly with vibration transducers, proximity probes, and process instrumentation, making it a standard reference in turbomachinery protection and condition monitoring architectures. The TM0182 series occupies a critical position in legacy DCS and standalone protection panel installations across refineries, LNG terminals, and nuclear auxiliary systems where long-term hardware continuity is a procurement requirement.

The Evolution of TM0182 Architecture

The TM0182 platform was developed to address the need for modular, field-configurable programmable controllers in vibration monitoring and machinery protection applications. Early revisions of the TM0182 architecture relied on discrete analog signal conditioning with fixed-function firmware, targeting single-channel or dual-channel proximity probe inputs. As industrial automation standards evolved through the 1990s and 2000s, PROVIBTECH introduced configurable parameter sets via the A/B/C suffix structure, allowing end users to specify input range, output relay configuration, and communication protocol at the point of order rather than requiring factory customization.

The suffix convention used in the TM0182 series follows a structured format: the A-field designates the input channel configuration (e.g., A50 = 50 mV/mil proximity input scaling), the B-field designates the output relay or analog output type (e.g., B00 = standard relay output), and the C-field designates the communication or auxiliary option (e.g., C00 = no auxiliary communication). This modular ordering system created a large matrix of valid part numbers within the TM0182 family, many of which are now discontinued but remain installed in operating facilities. Compatibility between TM0182 revisions is generally maintained at the backplane and wiring level, though firmware versions must be verified before substitution in safety-critical loops.

The TM0182 series has entered the mature-to-end-of-life phase of its product lifecycle. PROVIBTECH has transitioned newer installations to successor platforms; however, the installed base of TM0182 units in operating plants remains substantial, and long-term maintenance support — including spare module procurement, repair, and functional testing — remains an active requirement for asset operators committed to run-to-failure or life-extension maintenance strategies.

TM0182 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the PROVIBTECH TM0182 programmable controller family, organized by functional category. Each model is identified by its full part number and primary functional descriptor.

Programmable Controller Modules

• TM0182-A50-B00-C00: Programmable controller, 50 mV/mil input, standard relay output, no auxiliary comm
• TM0182-A10-B00-C00: Programmable controller, 10 mV/mil input scaling, standard relay output, base configuration
• TM0182-A20-B00-C00: Programmable controller, 20 mV/mil input, relay output, no auxiliary option
• TM0182-A50-B01-C00: Programmable controller, 50 mV/mil input, analog 4–20 mA output, no auxiliary comm
• TM0182-A50-B00-C01: Programmable controller, 50 mV/mil input, relay output, RS-485 Modbus RTU comm
• TM0182-A50-B01-C01: Programmable controller, 50 mV/mil input, 4–20 mA output, RS-485 Modbus RTU
• TM0182-A10-B01-C00: Programmable controller, 10 mV/mil input, 4–20 mA analog output, base comm
• TM0182-A20-B01-C01: Programmable controller, 20 mV/mil input, analog output, Modbus RTU enabled

Analog Input / Signal Conditioning Modules

• TM0182-A50-B02-C00: Dual-channel analog input module, 50 mV/mil, buffered output, no comm
• TM0182-A10-B02-C00: Dual-channel analog input, 10 mV/mil scaling, buffered signal output
• TM0182-A20-B02-C01: Dual-channel analog input, 20 mV/mil, buffered output, RS-485 interface

Relay Output / Trip Modules

• TM0182-A50-B03-C00: Relay output trip module, 50 mV/mil input, SPDT relay, DIN rail mount
• TM0182-A10-B03-C00: Relay trip module, 10 mV/mil input, SPDT relay, panel mount compatible
• TM0182-A50-B03-C01: Relay trip module, 50 mV/mil, SPDT relay, Modbus RTU status reporting

Communication & Auxiliary Modules

• TM0182-A00-B00-C01: Communication gateway module, RS-485 Modbus RTU, no signal input, auxiliary bus interface
• TM0182-A00-B00-C02: Communication gateway module, Ethernet Modbus TCP option, auxiliary interface only

Sourcing Hard-to-Find & Obsolete TM0182 Parts

DriveKNMS maintains an active procurement and inventory program specifically targeting mature and end-of-life industrial control hardware, including the full PROVIBTECH TM0182 series. As OEM production of TM0182 modules has been reduced or discontinued, the primary supply channel for operating facilities has shifted to specialist distributors with access to new-old-stock (NOS), refurbished, and tested-used inventory.

DriveKNMS sources TM0182 modules through a global network of industrial surplus channels, decommissioned plant asset liquidations, and authorized repair partners. For operators managing TM0182-based protection panels under a life-extension or run-to-failure maintenance strategy, DriveKNMS provides: confirmed stock availability checks within 24 hours, functional test reports issued per module, and cross-reference support for identifying compatible substitute part numbers where direct replacements are unavailable. Procurement inquiries for low-volume emergency requirements and high-volume scheduled maintenance kits are both supported.

Quality Control for the TM0182 Range

The TM0182 series presents specific quality verification requirements due to its role in machinery protection and vibration monitoring applications, where module failure can result in undetected machinery faults or spurious trip events. DriveKNMS applies a structured functional test protocol to all TM0182 units prior to shipment.

Testing procedures for TM0182 modules include: input signal simulation across the full specified mV/mil range to verify gain accuracy and alarm setpoint response; relay output actuation verification under rated load conditions; analog output linearity check across the 4–20 mA span where applicable; communication port verification for Modbus RTU or TCP variants using protocol analyzer confirmation; and visual inspection of backplane connectors, conformal coating integrity, and component condition. Modules that do not meet original specification tolerances are either repaired to specification or rejected from inventory. Test records are retained and available upon request for quality-critical procurement requirements.
