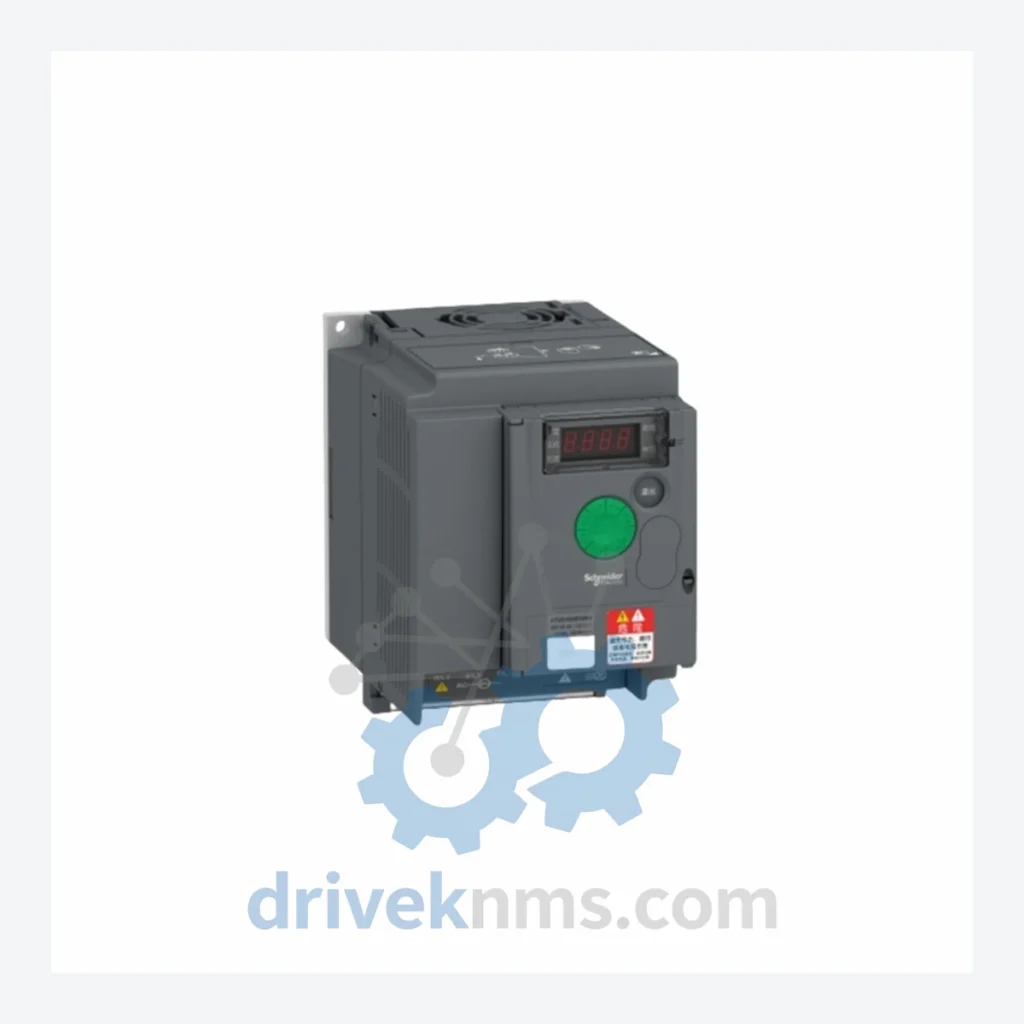

Schneider Electric Altivar ATV310 Variable Speed Drives – ATV310HU15N4

Technical Dossier

Product Details And Specifications

Schneider Electric Altivar ATV310 Series Technical Notes

The Altivar ATV310 is a compact variable speed drive (VFD) range manufactured by Schneider Electric, designed for simple machine applications requiring reliable motor speed control. Deployed across global heavy industry sectors — including petrochemical plants, water treatment facilities, refineries, and general manufacturing — the ATV310 series occupies a well-established position as a cost-effective, DIN-rail-compatible drive platform. Its three-phase and single-phase input variants cover motor power ratings from 0.18 kW to 15 kW, making it a standard specification item in both OEM panel builds and plant-level retrofit projects. The series is fully compliant with IEC 61800-5-1 safety standards and carries CE, UL, and CSA certifications, enabling deployment across North American, European, and Asia-Pacific regulated facilities.

The Evolution of ATV310 Architecture

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Compatibility note: ATV310 drives are not backward-compatible with ATV11/ATV12 mounting footprints in all configurations. Panel designers retrofitting older installations must verify DIN rail depth and cable entry clearances before substitution.

ATV310 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core ATV310 product range, organized by input supply type and power rating. All units provide V/f and sensorless flux vector control modes as standard.

Single-Phase 200–240V Input (S6 suffix):

• ATV310H018M2: 0.18 kW / 0.25 hp, 1-phase 200–240V, IP20, integrated EMC filter
• ATV310H037M2: 0.37 kW / 0.5 hp, 1-phase 200–240V, IP20, integrated EMC filter
• ATV310H075M2: 0.75 kW / 1 hp, 1-phase 200–240V, IP20, integrated EMC filter
• ATV310HU15M2: 1.5 kW / 2 hp, 1-phase 200–240V, IP20, integrated EMC filter
• ATV310HU22M2: 2.2 kW / 3 hp, 1-phase 200–240V, IP20, integrated EMC filter

Three-Phase 380–460V Input (N4 suffix):

• ATV310H018N4: 0.18 kW / 0.25 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310H037N4: 0.37 kW / 0.5 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310H075N4: 0.75 kW / 1 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310HU15N4: 1.5 kW / 2 hp, 3-phase 380–460V, IP20, no integrated filter — current page SKU
• ATV310HU22N4: 2.2 kW / 3 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310HU40N4: 4.0 kW / 5 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310HU55N4: 5.5 kW / 7.5 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310HU75N4: 7.5 kW / 10 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310HD11N4: 11 kW / 15 hp, 3-phase 380–460V, IP20, no integrated filter
• ATV310HD15N4: 15 kW / 20 hp, 3-phase 380–460V, IP20, no integrated filter

Three-Phase 200–240V Input (N2 suffix):

• ATV310HU15N2: 1.5 kW / 2 hp, 3-phase 200–240V, IP20
• ATV310HU22N2: 2.2 kW / 3 hp, 3-phase 200–240V, IP20
• ATV310HU40N2: 4.0 kW / 5 hp, 3-phase 200–240V, IP20

Sourcing Hard-to-Find & Obsolete ATV310 Parts

For facilities operating legacy SCADA or PLC architectures that were originally commissioned with ATV310 drives, direct replacement with ATV320 units requires parameter migration and, in some cases, wiring modifications to the control terminal block. DriveKNMS provides pre-tested ATV310 replacements as a zero-modification drop-in solution, extending operational continuity without engineering rework costs.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Quality Control for the ATV310 Range

Each ATV310 unit processed by DriveKNMS undergoes a structured inspection and functional test protocol prior to shipment:
