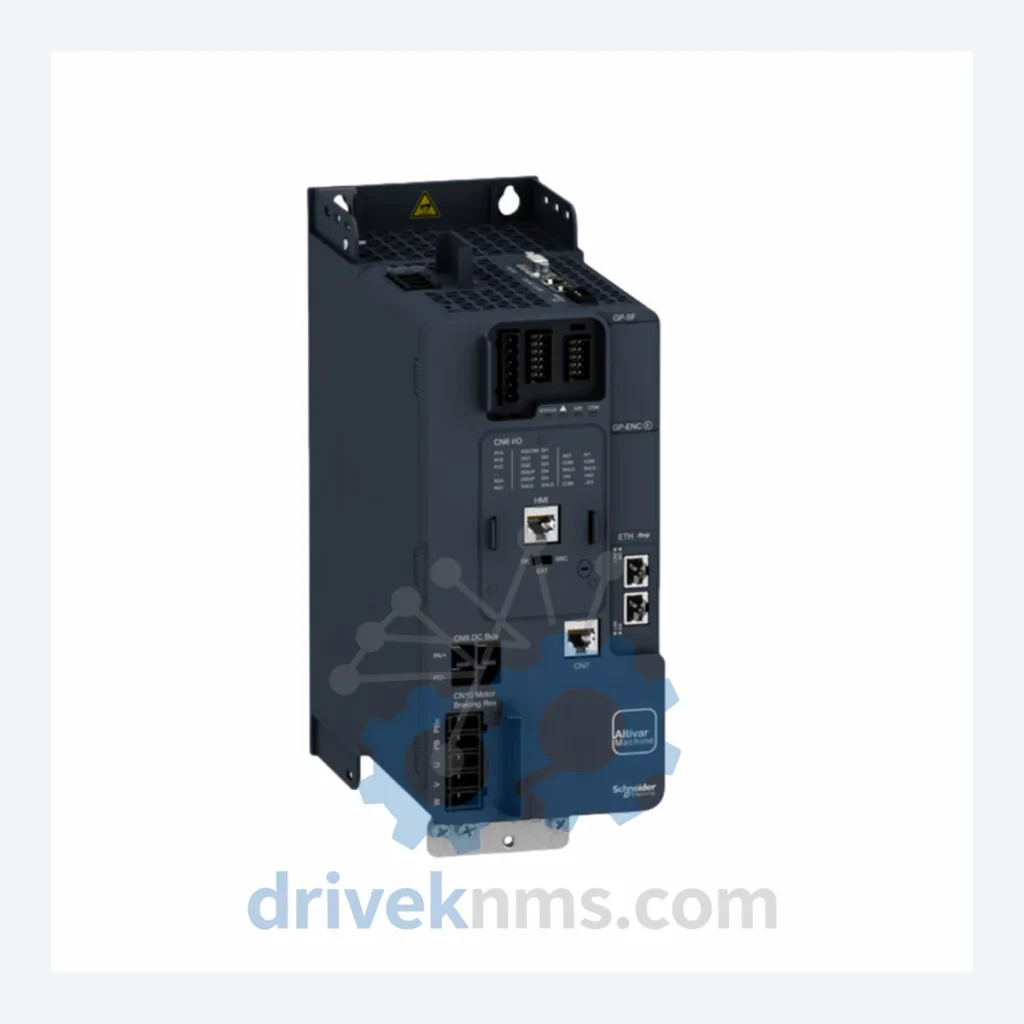

Schneider Electric ATV340 Series Drives: ATV340D11N4

Technical Dossier

Product Details And Specifications

Schneider Electric ATV340 Series Technical Notes

The Schneider Electric Altivar ATV340 series represents the current-generation compact variable frequency drive (VFD) platform engineered for demanding industrial applications including chemical processing plants, water treatment facilities, material handling systems, and heavy manufacturing lines. Deployed across six continents, the ATV340 range has established a significant installed base in sectors where motor control precision, harmonic compliance, and functional safety integration are non-negotiable procurement criteria.

The ATV340 series covers a power range from 0.37 kW to 75 kW (three-phase 380–480 V), with dedicated variants for single-phase input and high-power cabinet integration. Its architecture is built around an embedded Ethernet/IP and Modbus TCP communication stack, STO (Safe Torque Off) SIL 2 / PLd safety function, and a graphical keypad interface — all standard, without optional cards required for basic commissioning.

The Evolution of ATV340 Architecture

The ATV340 is the direct successor to the Altivar 312 and Altivar 320 platforms. The ATV312 (discontinued, circa 2018) served as the workhorse compact drive for simple pump and fan applications but lacked embedded Ethernet and advanced safety functions. The ATV320 bridged the gap with improved EMC filtering and fieldbus flexibility but retained a separate safety option card requirement.

The ATV340 consolidates these capabilities into a single hardware generation: embedded dual-port Ethernet switch (for line topology without additional switches), STO wired directly to the control board, and a unified firmware architecture shared with the ATV340 cabinet drives. This means engineering teams migrating from ATV312 or ATV320 installations face a well-documented parameter migration path, though physical mounting footprints differ and must be verified against existing panel layouts.

Compatibility note: ATV340 drives are not backward-compatible with ATV312 accessories (filters, chokes, braking resistors) at the part-number level. Procurement teams should treat each generation as a distinct BOM line item and verify accessory cross-references via Schneider's Product Lifecycle Management (PLM) database before issuing RFQs.

ATV340 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core ATV340 product range. Each entry reflects a verified, commercially available or recently active model within the Schneider Electric catalog. Models are grouped by power rating and input voltage class.

Three-Phase 380–480 V Input (Standard Industrial Range)

• RFQ terms review: Commercial terms are confirmed during RFQ review based on model, condition, documentation, quantity and destination.
• ATV340U07N4E: 0.75 kW, 3-phase 400 V, IP20, STO SIL2, compact book mount
• ATV340U11N4E: 1.1 kW, 3-phase 400 V, IP20, dual-port Ethernet switch integrated
• ATV340U15N4E: 1.5 kW, 3-phase 400 V, IP20, Modbus TCP + EtherNet/IP standard
• ATV340U22N4E: 2.2 kW, 3-phase 400 V, IP20, graphical display keypad included
• ATV340U30N4E: 3.0 kW, 3-phase 400 V, IP20, suitable for conveyor and pump duty
• ATV340U40N4E: 4.0 kW, 3-phase 400 V, IP20, enhanced braking transistor built-in
• ATV340U55N4E: 5.5 kW, 3-phase 400 V, IP20, high overload 150% for 60 s
• ATV340U75N4E: 7.5 kW, 3-phase 400 V, IP20, EMC filter class C2 integrated
• ATV340D11N4E: 11 kW, 3-phase 400 V, IP20, flange-mount option available
• ATV340D15N4E: 15 kW, 3-phase 400 V, IP20, suitable for high-inertia load applications
• ATV340D22N4E: 22 kW, 3-phase 400 V, IP20, PID controller with auto-tuning
• ATV340D30N4E: 30 kW, 3-phase 400 V, IP20, DC bus choke connection terminals standard
• ATV340D37N4E: 37 kW, 3-phase 400 V, IP20, compatible with ATV340 cabinet integration kit
• ATV340D45N4E: 45 kW, 3-phase 400 V, IP20, suitable for HVAC and water utility duty
• ATV340D55N4E: 55 kW, 3-phase 400 V, IP20, requires external EMC filter for class C1
• ATV340D75N4E: 75 kW, 3-phase 400 V, IP20, top of standalone range, cabinet-ready

Non-E Suffix Variants (Without Integrated EMC Filter)

• ATV340D11N4: 11 kW, 3-phase 400 V, no integrated EMC filter — this listing's primary SKU
• ATV340D15N4: 15 kW, 3-phase 400 V, external filter required for CE compliance in residential zones
• ATV340D22N4: 22 kW, 3-phase 400 V, lower cost BOM option for industrial-only installations

Sourcing Hard-to-Find & Obsolete ATV340 Parts

DriveKNMS operates a global sourcing network specifically structured for industrial spare parts procurement. For ATV340 and legacy Altivar series drives, our sourcing capabilities include:

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Quality Control for the ATV340 Range

DriveKNMS applies the following test protocol to all ATV340 units prior to shipment:

• Visual inspection: PCB for corrosion, burn marks, swollen capacitors, and connector pin integrity
• Power-on self-test: Firmware boot verification, keypad display function, and fault code readout
• No-load run test: Output voltage symmetry across U/V/W at 10 Hz, 30 Hz, and 50 Hz
• STO function test: Verification of Safe Torque Off response per IEC 62061 test procedure
• Communication test: Ethernet/IP and Modbus TCP ping and register read/write cycle
• Insulation resistance test: 500 V DC megger test on power terminals prior to packaging
