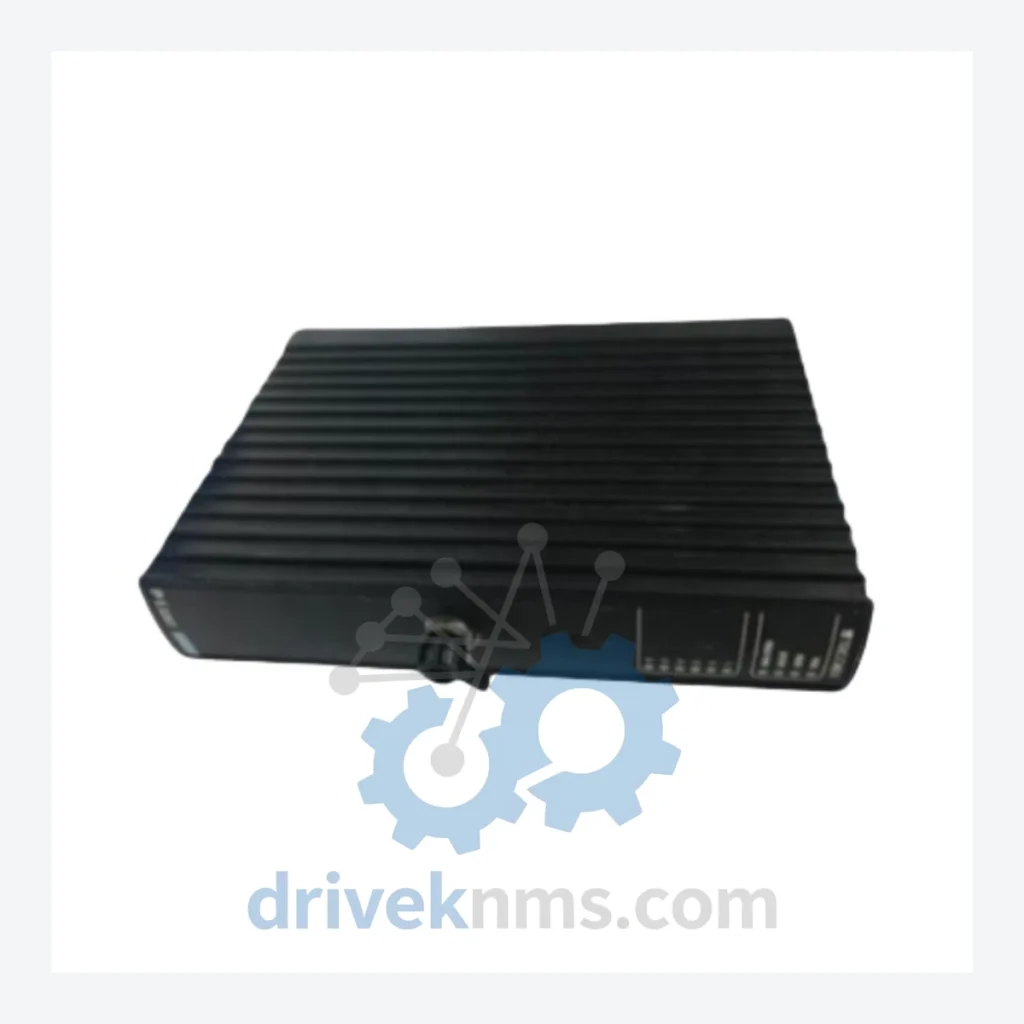

Triconex PI3381 DCS Module: Tricon Series

Technical Dossier

Product Details And Specifications

Triconex Tricon Series Technical Notes

The Triconex Tricon platform is a Triple Modular Redundant (TMR) safety system deployed across the most demanding process industries globally, including petrochemical refineries, offshore oil & gas platforms, nuclear power generation facilities, LNG terminals, and chemical processing plants. The Tricon architecture operates on a 1oo2D (one-out-of-two with diagnostics) voting logic at the hardware level, with three independent processing legs executing in lockstep. The PI3381 is a Process Interface module within this architecture, responsible for signal conditioning and I/O marshalling between field instrumentation and the Tricon main chassis backplane.

Triconex (now a brand under Schneider Electric) has maintained backward compatibility across Tricon generations, making legacy modules such as the PI3381 critical for long-term plant maintenance without full system replacement. Installed base across global heavy industry exceeds tens of thousands of systems, many operating continuously for 20+ years.

The Evolution of Tricon Architecture

The Triconex Tricon platform has evolved through several hardware generations since its commercial introduction in the late 1980s. The original Tricon v9 chassis established the TMR backplane bus standard. The v10 generation introduced enhanced diagnostics and higher-density I/O modules. The v11 generation (current production) added Ethernet-based communication via the TCM (Tricon Communication Module) and expanded the HART pass-through capability on analog modules.

The PI-series modules (PI3381 and related) were introduced during the v9/v10 transition period and remain compatible with v9, v10, and v11 main chassis through backplane bus continuity. However, firmware dependencies between the Main Processor (MP) and I/O modules must be validated during any mixed-generation configuration. Plants running Tricon v9 hardware are now in the extended lifecycle phase; Schneider Electric's formal support for v9 hardware ended, making third-party sourcing the primary procurement channel for spare PI3381 units.

The architectural shift from parallel backplane to serial TMR bus in later Tricon revisions did not affect the PI-series module pinout, preserving field wiring compatibility across generations. This is a key factor in the PI3381's continued demand in the aftermarket.

Tricon Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Tricon module catalog. Each entry is classified by functional category. Modules not confirmed as genuine Tricon part numbers are excluded.

Process Interface / Analog Input Modules

• PI3381: 32-channel analog input process interface module, 4–20 mA, TMR backplane
• AI3351: 16-channel analog input module, 4–20 mA HART-capable, v10/v11 chassis
• AI3353: 16-channel analog input module, ±10 VDC range, high-resolution ADC
• AI3355: 8-channel analog input module, thermocouple/RTD multi-type input

Digital Input Modules

• DI3301: 32-channel digital input module, 24 VDC, solid-state, TMR voting
• DI3303: 32-channel digital input module, 120 VAC field voltage
• DI3305: 32-channel digital input module, 48 VDC, isolated per group
• DI3307: 16-channel digital input module, 24 VDC, high-speed pulse capture

Digital Output Modules

• DO3401: 16-channel digital output module, 24 VDC, 2 A per channel, solid-state relay
• DO3403: 8-channel digital output module, 120/240 VAC, electromechanical relay
• DO3405: 16-channel digital output module, 24 VDC, supervised output with diagnostics

Analog Output Modules

• AO3481: 8-channel analog output module, 4–20 mA, HART pass-through
• AO3485: 8-channel analog output module, ±10 VDC, high-resolution DAC

CPU / Main Processor Modules

• MP3008: Tricon Main Processor module, v10 generation, 32 MB RAM, dual-port Ethernet
• MP3010: Tricon Main Processor module, v11 generation, enhanced cycle time, USB configuration port

Communication Modules

• TCM4351: Tricon Communication Module, Modbus TCP / EtherNet/IP gateway, v11 chassis
• TCM4353: Tricon Communication Module, OPC-DA server, dual Ethernet ports

Power Supply Modules

• PS3101: Tricon power supply module, 24 VDC input, redundant chassis power
• PS3201: Tricon power supply module, 120/240 VAC input, auto-ranging

Quality Control for the Tricon Range

Tricon modules present specific test challenges due to their TMR architecture: a module must be validated across all three internal legs independently, not merely at the I/O terminal level. DriveKNMS applies the following test protocol to all Tricon modules including the PI3381:

• Backplane bus continuity test: verifies all three TMR data paths are intact and non-degraded
• Channel-level signal injection: each analog input channel is stimulated with a calibrated 4–20 mA source; output is compared against reference tolerance (±0.1% FS)
• Voter logic verification: confirms the TMR voting circuit correctly resolves 2oo3 agreement and flags single-leg faults without spurious trip
• EEPROM and firmware integrity check: module firmware version is read and logged; modules with corrupted or mismatched firmware are quarantined
• Thermal soak: modules are operated at 55°C for 4 hours under load to screen for latent component failures
• Visual and X-ray inspection: PCB is inspected for cold solder joints, corrosion, and counterfeit component markers

All tested modules are issued a DriveKNMS test certificate with channel-level data, firmware version, and technician sign-off. Documentation is retained for 7 years.
