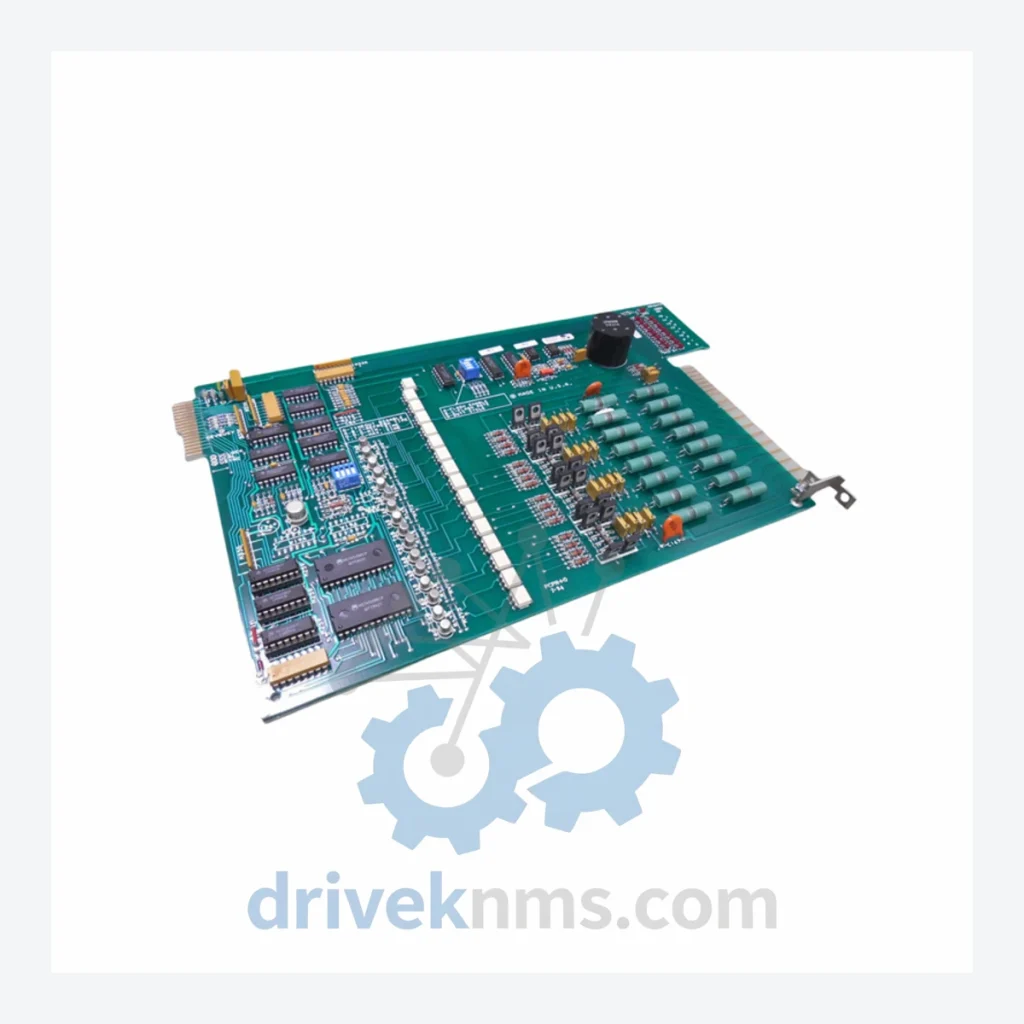

Westinghouse WDPF 2840A79G01 Modules

Technical Dossier

Product Details And Specifications

Westinghouse WDPF Series: Comprehensive Module Range and Technical Overview

The Westinghouse WDPF (Distributed Processing Family) is one of the most extensively deployed legacy DCS platforms in global heavy industry. Originally developed by Westinghouse Electric Corporation and later maintained under Emerson Process Management (following the 1999 acquisition), WDPF systems remain operational in coal-fired and nuclear power plants, petroleum refineries, chemical processing facilities, and pulp & paper mills across North America, Europe, and Asia-Pacific. Installed base estimates place active WDPF deployments in the hundreds of sites worldwide, many of which have been in continuous operation for 20–35 years.

The platform's longevity is a direct consequence of its modular architecture: individual I/O cards, controllers, and communication modules can be replaced without disturbing the broader control loop. This characteristic makes the availability of genuine spare parts — particularly discontinued models such as the 2840A79G01 Digital Output Card — a critical operational variable for plant asset managers.

The Evolution of WDPF Architecture

The WDPF platform was introduced in the early 1980s as a response to the limitations of centralized control systems. Its architecture is built around the WDPF Data Highway — a proprietary coaxial token-passing network — which connects distributed processing units (DPUs) to operator workstations and engineering consoles.

Over its lifecycle, the WDPF platform passed through several distinct hardware generations:

• WDPF I (early 1980s): Initial deployment with 2800-series I/O cards. Backplane communication via parallel bus. Limited channel density.
• WDPF II (late 1980s–1990s): Expanded I/O density, introduction of the 2840A-series cards including analog input, digital input, and digital output variants. Enhanced DPU processing capacity.
• WDPF+ / Ovation transition (late 1990s–2000s): Emerson introduced the Ovation DCS as the designated successor. Many sites began hybrid operation, retaining WDPF I/O subsystems while migrating supervisory layers to Ovation. This transition phase created the largest demand for WDPF spare parts, as procurement pipelines for new hardware were discontinued while installed equipment remained in service.
• End-of-Life / Extended Support (2010s–present): Emerson formally discontinued WDPF hardware manufacturing. Third-party suppliers and specialist distributors became the primary source for replacement modules. Sites operating WDPF today rely entirely on secondary market inventory.

The compatibility constraints of the WDPF platform are significant: cards are slot-specific, backplane-keyed, and firmware-dependent. Substituting a module from a different sub-revision can result in communication faults or incorrect signal scaling. Procurement must specify the full part number, including suffix codes (e.g., G01, G02).

WDPF Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed WDPF series modules. Each entry reflects a distinct hardware function within the platform architecture.

Digital Output Modules

• 2840A79G01: 16-channel digital output card, 24VDC discrete output, WDPF II backplane compatible
• 2840A79G02: 16-channel digital output card, alternate output voltage configuration
• 2840A80G01: 8-channel high-current digital output module, relay-driven outputs

Digital Input Modules

• 2840A77G01: 16-channel digital input card, 24VDC, WDPF II series
• 2840A77G02: 16-channel digital input card, 120VAC input compatible
• 2840A78G01: 32-channel digital input module, high-density configuration

Analog Input Modules

• 2840A73G01: 8-channel analog input card, 4–20mA, 12-bit resolution
• 2840A73G02: 8-channel analog input card, ±10V input range
• 2840A74G01: 16-channel analog input multiplexer card
• 2840A75G01: Thermocouple input module, multi-type TC support

Analog Output Modules

• 2840A76G01: 4-channel analog output card, 4–20mA, WDPF II
• 2840A76G02: 4-channel analog output card, voltage output variant

Controller / DPU Modules

• 5X00070G01: WDPF Distributed Processing Unit (DPU), primary controller module
• 5X00070G02: DPU controller, enhanced memory configuration
• 5X00106G01: WDPF Data Highway Interface module

Power Supply Modules

• 2840A81G01: WDPF rack power supply, 24VDC regulated output
• 2840A82G01: Redundant power supply module for WDPF I/O chassis

Note: All SKUs listed above are based on documented WDPF hardware references. Suffix variants (G01, G02, etc.) denote hardware revisions and are not interchangeable without engineering verification.

Sourcing Hard-to-Find & Obsolete WDPF Parts

Emerson's discontinuation of WDPF hardware manufacturing has created a structurally constrained supply environment. OEM channels no longer stock these modules. Plant maintenance teams sourcing WDPF spares face three primary challenges: verifying part authenticity, confirming hardware revision compatibility, and securing sufficient quantity for multi-year maintenance reserves.

DriveKNMS maintains a dedicated inventory of WDPF series modules sourced through controlled secondary market channels. Our procurement process prioritizes:

• Revision-level verification: Every module is cross-referenced against the full part number, including G-suffix, to confirm backplane and firmware compatibility before dispatch.
• Multi-unit reserve fulfillment: We accommodate bulk procurement requests for sites building 3–5 year spare part reserves — a standard practice for plants with no near-term migration budget.
• Emergency response: For unplanned failures causing production stoppage, we maintain priority dispatch protocols. Contact us directly for lead time confirmation on critical SKUs.

For sites evaluating the cost of WDPF-to-Ovation migration versus continued legacy maintenance: a full DCS migration project at a mid-size power plant typically ranges from USD 2–8 million, excluding engineering downtime. A targeted spare parts strategy — maintaining 2–4 units of each critical I/O card — can defer that capital expenditure by 5–10 years at a fraction of the cost.

Quality Control for the WDPF Range

WDPF modules present specific inspection challenges due to their age profile and the complexity of their backplane communication logic. Our QC process for this series includes:

1. Visual inspection: Full board examination for capacitor bulge, PCB delamination, pin corrosion, and solder joint fatigue — failure modes common in modules manufactured in the 1980s–1990s.
2. Electrolytic capacitor assessment: Capacitors in this age range are a primary failure vector. Modules showing ESR deviation are flagged for recapping before dispatch.
3. Backplane connector integrity: Edge connector pins are cleaned and inspected under magnification. Oxidation on gold-plated contacts is treated prior to testing.
4. Functional bench test: Where test fixtures are available for the specific module type, channel-level I/O verification is performed. Digital output cards such as the 2840A79G01 are tested for correct switching response across all 16 channels.
5. Firmware and label verification: Hardware revision markings are documented and included in the shipment record to support the customer's maintenance log.

Modules that do not pass all applicable inspection stages are quarantined and not offered for sale.
