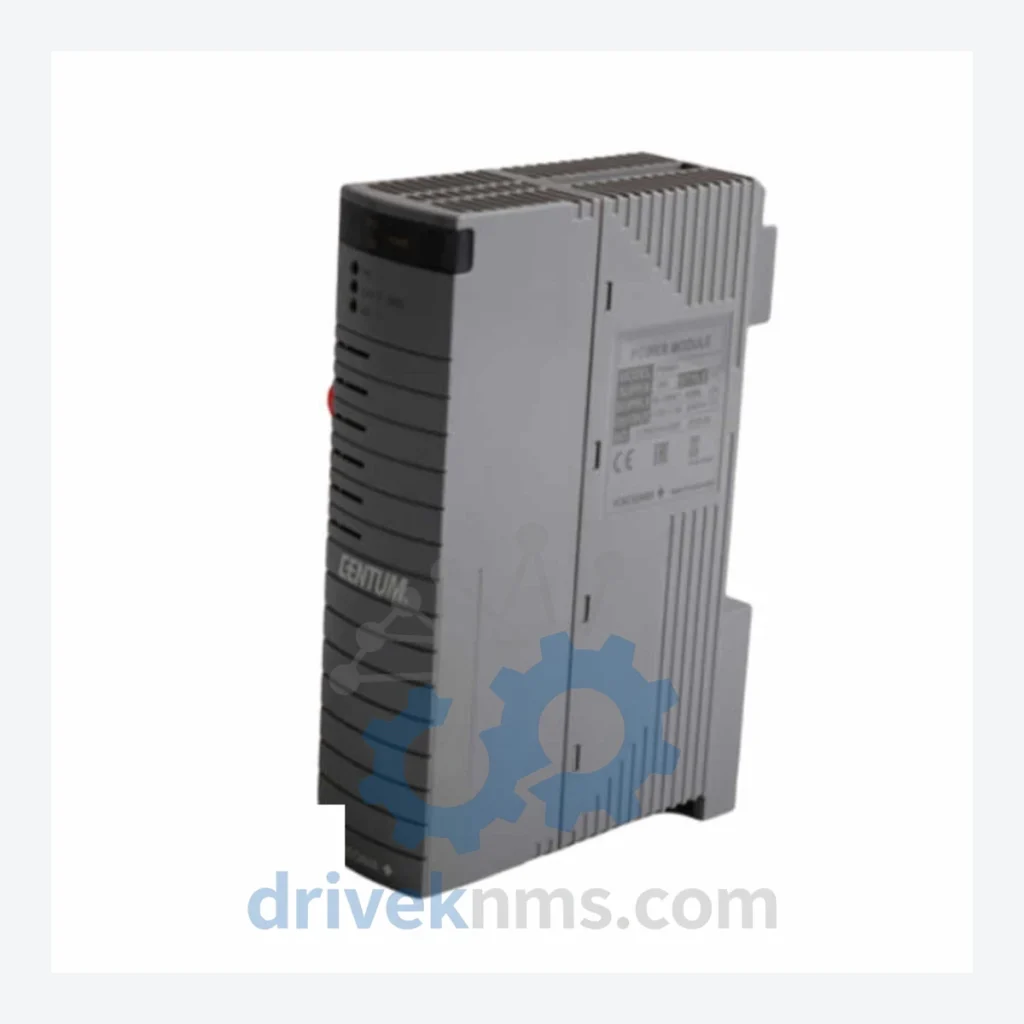

Yokogawa ASS9562DK-00 Analog Input Module

Technical Dossier

Product Details And Specifications

Yokogawa ASS9562DK-00 Series Technical Notes

ASS9562DK-00 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Yokogawa STARDOM FCN/FCJ ASS I/O series. Each entry reflects a distinct hardware function within the system architecture.

Analog Input Modules (AI)

• ASS9562DK-00: 8-ch analog input, 4–20 mA / 1–5 V, galvanic isolation, HART-compatible
• ASS9562DK-01: 8-ch analog input, extended temperature variant, enhanced EMC shielding
• ASS9562DK-10: 8-ch analog input with integrated HART multiplexer, firmware rev 10+
• ASS9563DK-00: 16-ch analog input, high-density configuration, shared isolation groups
• ASS9564DK-00: 4-ch thermocouple / RTD input, universal sensor type selection per channel
• ASS9564DK-01: 4-ch thermocouple input, cold junction compensation, IEC 60584 compliant

Analog Output Modules (AO)

• ASS9572DK-00: 4-ch analog output, 4–20 mA, loop-powered, HART pass-through
• ASS9572DK-01: 4-ch analog output, voltage output option (0–10 V), isolated
• ASS9573DK-00: 8-ch analog output, high-density, shared power bus

Digital Input Modules (DI)

• ASS9512DK-00: 32-ch digital input, 24 VDC, sink/source configurable
• ASS9512DK-01: 32-ch digital input, 120 VAC field voltage compatible
• ASS9513DK-00: 16-ch digital input, high-speed pulse counting, 1 kHz max

Digital Output Modules (DO)

• ASS9522DK-00: 16-ch digital output, 24 VDC, 0.5 A per channel, short-circuit protected
• ASS9522DK-01: 16-ch digital output, relay contact type, 2 A per channel

Communication & CPU Modules

• ASS9100DK-00: FCN controller CPU module, Vnet/IP Ethernet backbone, dual-port
• ASS9200DK-00: Fieldbus communication adapter, FOUNDATION Fieldbus H1 segment interface
• ASS9210DK-00: PROFIBUS-DP master adapter, up to 12 Mbps, 125-node support

Power Supply Modules

• ASS9900DK-00: 24 VDC I/O bus power supply, 10 A output, redundancy-capable
• ASS9901DK-00: Redundant power supply module, hot-swap, automatic failover

Quality Control for the ASS9562DK-00 Range

The ASS9562DK-00 and related STARDOM I/O modules present specific quality verification challenges due to their proprietary backplane communication protocol and channel-level isolation architecture. DriveKNMS applies the following test procedures to all ASS-series units prior to shipment. Backplane bus integrity is verified using a dedicated FCN/FCJ test node running Yokogawa's standard I/O diagnostic firmware, confirming correct module enumeration, address assignment, and cyclic data exchange. Each analog input channel is stimulated across the full 4–20 mA range using a calibrated current source (traceable to national standards), and the digitized output is compared against factory accuracy specifications (±0.1% of span typical). Channel-to-channel isolation resistance is measured at 500 VDC to confirm galvanic barrier integrity. HART communication is validated by injecting a standard HART frame and confirming correct device variable response. Firmware revision is recorded and cross-referenced against known compatibility matrices for the target FCN/FCJ controller version. Units failing any parameter are quarantined and documented; no rework is performed without explicit customer authorization.
