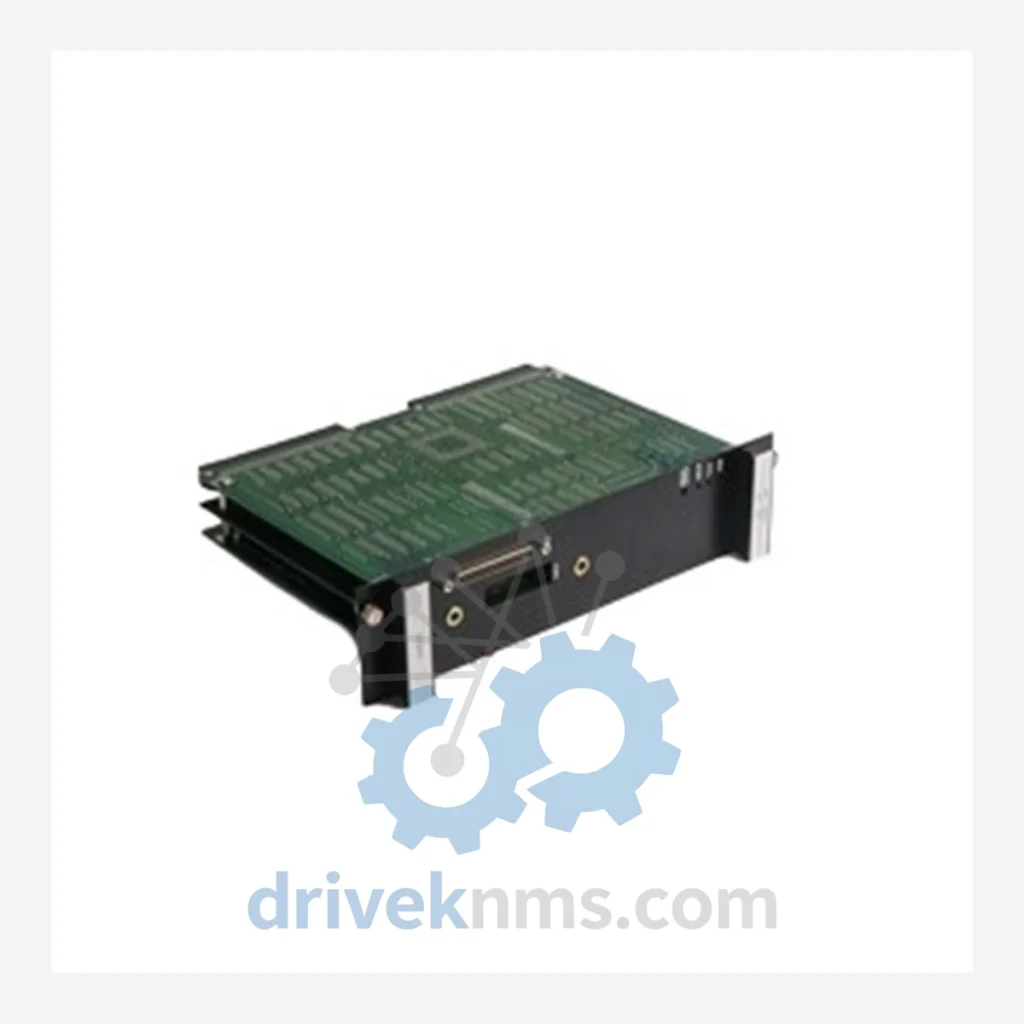

Yokogawa ASS9981 Modules: ASS9981DE-02 Interface Unit

Technical Dossier

Product Details And Specifications

Yokogawa ASS9981 Series Technical Notes

The Yokogawa ASS9981 series comprises interface and communication units designed for integration within the CENTUM VP and CENTUM CS 3000 Distributed Control System (DCS) platforms. These systems are deployed across global heavy industry sectors including petrochemical complexes, nuclear power generation facilities, offshore oil and gas platforms, and large-scale refinery operations. The ASS9981 series occupies a critical position in the I/O and field bus communication layer of these architectures, providing deterministic signal routing between field instruments and the central control domain. Installed base counts for CENTUM VP and CS 3000 systems run into the tens of thousands of units worldwide, making the ASS9981 module family one of the most strategically significant spare part categories in industrial DCS maintenance programs.

The Evolution of ASS9981 Architecture

The ASS9981 designation covers interface units that bridge the CENTUM CS 3000 and CENTUM VP field control station (FCS) backplane with external I/O subsystems and communication buses. Early iterations of this interface architecture were introduced alongside the CS 3000 platform in the late 1990s, providing RS-485 and proprietary Vnet/IP communication pathways. As Yokogawa transitioned the installed base toward CENTUM VP (introduced circa 2008), the ASS9981 series was revised to support dual-redundant Vnet/IP Ethernet-based control networks while maintaining backward compatibility with legacy CS 3000 field wiring and I/O modules. The DE-02 suffix variant (ASS9981DE-02) represents a specific hardware revision of the interface unit, incorporating updated firmware compatibility for VP R5.x and later software releases. Facilities operating mixed CS 3000 / CENTUM VP environments must verify hardware revision compatibility before substituting ASS9981 variants, as backplane connector pinouts and firmware handshake protocols differ between major revision families. The series has entered a mature/end-of-active-production lifecycle phase; Yokogawa's official support for CS 3000 hardware has transitioned to long-term maintenance mode, making third-party spare part sourcing an operationally critical requirement for asset owners committed to extended plant lifecycles beyond 2030.

ASS9981 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Yokogawa ASS9981 and closely associated CENTUM VP / CS 3000 interface and I/O module catalog. Models are classified by functional category.

Interface & Communication Units

• ASS9981DE-02: CENTUM VP/CS 3000 field bus interface unit, DE hardware revision 02, Vnet/IP compatible.
• ASS9981DE-01: Earlier hardware revision of the DE-series interface unit; CS 3000 primary deployment.
• ASS9981CE-01: CE-variant interface unit for CENTUM CS 3000 communication expansion slots.
• ASS9981BE-01: BE-series interface unit; supports legacy RS-485 field bus topology in CS 3000 FCS.
• ASS9981AE-01: AE-series base interface unit; earliest production variant for CS 3000 I/O bus bridging.

Analog Input (AI) Modules

• AAI141-S00: 16-channel 4–20 mA analog input module, single-ended, HART-compatible, for CENTUM VP FCS.
• AAI141-S50: 16-channel analog input, isolated, with HART pass-through; high-density process measurement.
• AAI543-H: 8-channel high-accuracy analog input module; ±0.1% FS accuracy; thermocouple/RTD capable.
• AAI835-S: 32-channel multiplexed analog input; used in large-scale process variable acquisition racks.

Analog Output (AO) Modules

• AAO141-S00: 8-channel 4–20 mA analog output module; direct valve positioner and actuator drive.
• AAO141-S50: 8-channel isolated analog output; HART-enabled for smart field device configuration.

Digital Input (DI) Modules

• ADV151-P00: 32-channel 24 VDC digital input module; process interlock and status monitoring.
• ADV151-P50: 32-channel DI, isolated, surge-protected; suitable for hazardous area field wiring.

Digital Output (DO) Modules

• ADV551-P00: 16-channel 24 VDC digital output module; relay-driven discrete control outputs.
• ADV551-P50: 16-channel isolated DO; used for solenoid valve and motor starter control circuits.

Power Supply Units

• APW100: FCS rack power supply unit; 100–240 VAC input, 24 VDC output; redundancy-capable.
• APW105: Redundant power supply module for CENTUM VP field control station racks.

Quality Control for the ASS9981 Range

The ASS9981 interface unit family presents specific test challenges due to its role as a backplane bus master and Vnet/IP communication endpoint. DriveKNMS applies a multi-stage verification protocol to all ASS9981 units prior to dispatch. Stage one involves visual inspection of the backplane connector array (96-pin DIN 41612 format) for pin deformation, oxidation, and solder joint integrity. Stage two executes a powered functional test using a CENTUM VP R5.04 or later test bench, verifying Vnet/IP link establishment, I/O bus polling cycle completion, and self-diagnostic register outputs. Stage three applies thermal cycling across the unit's rated operating range (0°C to 60°C) to identify latent component failures in the DC-DC converter and FPGA communication logic. Units that pass all three stages are issued a DriveKNMS test certificate with bench test date, firmware version confirmed, and technician ID. Units that fail any stage are quarantined and not returned to inventory.
