Yokogawa CENTUM CS 3000 Modules: CP471-00 S1

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM CS 3000 Series Technical Notes

The Yokogawa CENTUM CS 3000 is a field-proven Distributed Control System (DCS) platform deployed across the global heavy process industries, including petrochemical complexes, oil refineries, nuclear power facilities, LNG terminals, and large-scale chemical plants. First introduced in the late 1990s as the successor to the CENTUM CS, the CS 3000 established itself as one of the most widely installed DCS architectures in Asia-Pacific and the Middle East, with an installed base spanning thousands of control loops per site. Its modular field control station (FCS) architecture, redundant Vnet/IP communication backbone, and compatibility with HART and Foundation Fieldbus instruments made it the reference platform for continuous process control through the 2000s and 2010s. As of 2026, the CENTUM CS 3000 has entered its extended lifecycle phase; Yokogawa continues to provide maintenance support while actively migrating customers toward the CENTUM VP platform.

The Evolution of CENTUM CS 3000 Architecture

The CENTUM CS 3000 architecture is organized around the Field Control Station (FCS), which houses processor modules, I/O modules, and communication adapters on a common node bus backplane. The original CS 3000 R2 release standardized the CP401/CP451 processor family for single and dual-redundant CPU configurations. The R3 revision introduced the CP471 series, delivering higher scan rates, expanded function block capacity, and improved Vnet/IP integration. The R4 release extended the I/O module range with the AAI, AAT, ADV, and ADA series for analog and digital signal conditioning, and introduced the ALR series for alarm management. Compatibility between R2, R3, and R4 hardware generations is constrained at the FCS node level: CPU modules must match the firmware generation of the node bus controller, while I/O modules are generally backward-compatible within the same physical slot format. Migration from CS 3000 to CENTUM VP requires replacement of the FCS processor and communication modules but allows reuse of existing I/O wiring and field instruments in most configurations.

CENTUM CS 3000 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module range of the CENTUM CS 3000 platform, classified by functional category. Each entry reflects a distinct hardware component used in FCS node construction, I/O marshalling, or system communication.

Controller / CPU Modules

• CP401-10: Single-CPU field control station processor, R2 generation, standard scan cycle.
• CP451-10: Dual-redundant CPU module pair for high-availability FCS nodes, R2/R3.

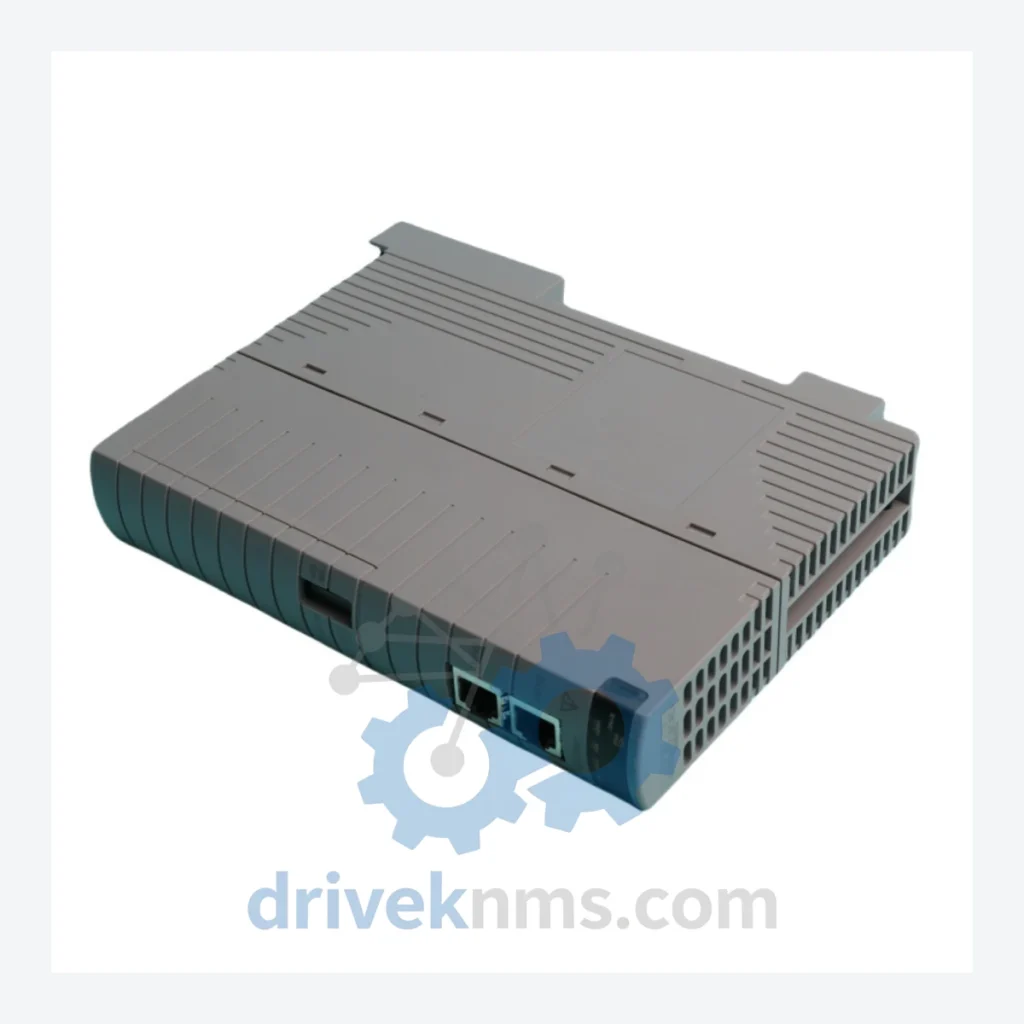

• CP471-00 S1: Enhanced single-CPU processor module, R3 generation, expanded function block capacity, Vnet/IP native.
• CP471-10: Dual-redundant version of the CP471 processor for fault-tolerant FCS configurations.
• CP472-10: High-capacity CPU module supporting extended I/O node counts and faster scan rates.

Analog Input Modules

• AAI141-S00: 16-channel analog input module, 4–20 mA, HART-compatible, single-ended.
• AAI143-S00: 16-channel analog input, differential configuration, high common-mode rejection.
• AAI841-S00: 8-channel analog input with HART pass-through for field device diagnostics.
• AAT141-S00: 8-channel thermocouple/RTD input module, multi-sensor type selection per channel.

Analog Output Modules

• AAO141-S00: 8-channel analog output, 4–20 mA, HART-compatible, for control valve positioners.
• AAO841-S00: 8-channel analog output with HART communication and loop diagnostics.

Digital Input / Output Modules

• ADV151-P00: 32-channel digital input module, 24 VDC, for discrete field signal acquisition.
• ADV161-P00: 32-channel digital output module, 24 VDC, transistor sink type.
• ADV551-P00: 16-channel digital input, 110/220 VAC, for high-voltage field contacts.
• ADV561-P00: 16-channel digital output, relay contact type, for solenoid valve and motor starter control.

Communication & Network Modules

• ACF11: Vnet/IP communication interface card for FCS node bus to control network bridging.
• AIP829-00: FOUNDATION Fieldbus H1 interface module, supports up to 16 FF devices per segment.
• ALR111-00: Alarm management and event logging module for FCS node-level alarm consolidation.

Power Supply Modules

• APW105: 24 VDC node bus power supply module, standard capacity for single FCS node.
• APW305: Redundant power supply module pair for high-availability FCS power distribution.

Sourcing Hard-to-Find & Obsolete CENTUM CS 3000 Parts

The CENTUM CS 3000 platform has been in extended lifecycle since approximately 2018. Yokogawa has progressively reduced new production of CS 3000-specific hardware, with several CPU and communication module variants now classified as discontinued. For end users operating CS 3000 installations with long remaining plant lifecycles — common in nuclear, refining, and base chemical facilities — sourcing replacement modules through the standard distribution channel is no longer reliable. DriveKNMS maintains a dedicated inventory of tested CS 3000 spare modules, including CP471-00 S1 and related processor variants, sourced from decommissioned plant equipment and verified against Yokogawa hardware specifications. All units are inspected for backplane connector integrity, firmware version compatibility, and node bus communication function prior to dispatch. DriveKNMS provides lifecycle extension support for CS 3000 installations requiring multi-year spare parts coverage without committing to a full migration to CENTUM VP.
