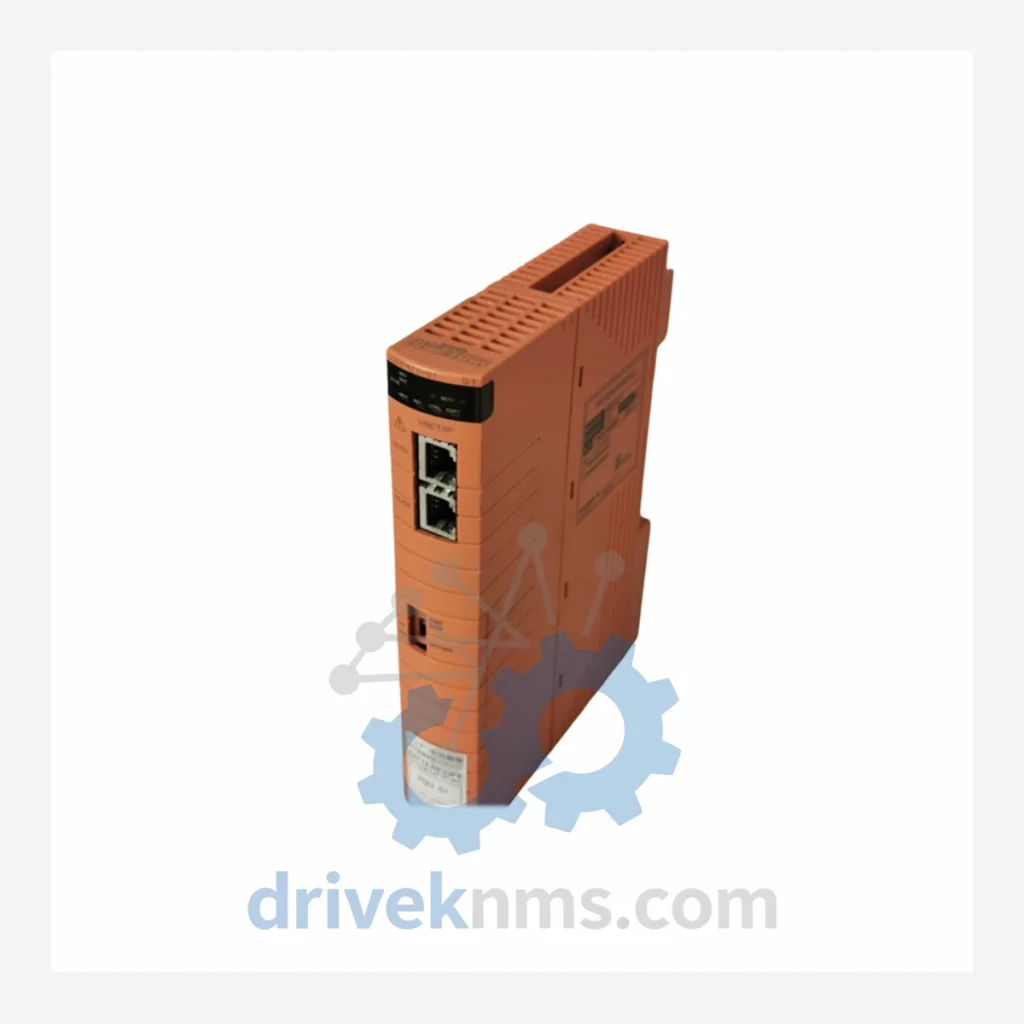

Yokogawa CENTUM CS 3000 Modules: S2CP471-01 S1 Processor Module

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM CS 3000 Series Technical Notes

The Yokogawa CENTUM CS 3000 is a field-proven Distributed Control System (DCS) platform deployed across heavy industrial sectors including petrochemical complexes, oil refineries, nuclear power facilities, LNG terminals, and large-scale chemical plants. First introduced in 1998 as the successor to the CENTUM CS, the CS 3000 established itself as one of the most widely installed DCS architectures in Asia-Pacific and the Middle East, with documented installations exceeding 10,000 sites globally. Its modular backplane architecture, redundant field control station (FCS) design, and Vnet/IP communication backbone made it the reference platform for continuous process control through the 2000s and 2010s. The S2CP471-01 S1 is a CPU/Processor Module for the Field Control Station (FCS), responsible for executing control logic, managing I/O bus communication, and maintaining real-time process data within the CS 3000 architecture.

The Evolution of CENTUM CS 3000 Architecture

The CENTUM platform traces its lineage from the original CENTUM (1975) — one of the earliest commercially deployed DCS systems — through successive generations: CENTUM V, CENTUM XL, CENTUM CS, and CENTUM CS 3000 (R1–R3), culminating in the current CENTUM VP platform introduced in 2008. The CS 3000 architecture is built around the Field Control Station (FCS), which houses processor modules (CP), I/O modules (AAI, AAB, ADV, ADA, ADI, ADO), communication modules, and power supply units within a standardized nest/backplane assembly. The Vnet/IP control bus replaced the earlier Vnet (token-ring) in later CS 3000 revisions, introducing Ethernet-based redundant communication while maintaining backward compatibility with legacy I/O field wiring. As of 2026, the CENTUM CS 3000 is in its end-of-active-production phase; Yokogawa continues to offer migration paths to CENTUM VP, but the installed base remains substantial, creating sustained demand for spare processor and I/O modules. Compatibility between CS 3000 R2 and R3 hardware is generally maintained at the module level, though firmware revisions must be matched to the FCS software version to avoid bus communication faults.

CENTUM CS 3000 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Yokogawa CENTUM CS 3000 hardware catalog, classified by functional category:

Processor / CPU Modules (CP)

S2CP471-01 S1: FCS processor module; executes control logic and manages I/O bus for Field Control Station.
S2CP471-01 S2: Revised hardware revision of S2CP471-01; improved thermal tolerance for high-ambient environments.
S2CP471-10 S1: Enhanced FCS CPU module with extended memory capacity for large-scale loop configurations.
S2CP471-10 S2: Updated revision of S2CP471-10; compatible with CS 3000 R3.08 and later firmware.
S2CP471-20 S1: High-performance FCS processor for redundant FCS pair configurations.

Analog Input Modules (AI)

AAI141-S00 S1: 16-channel analog input module; 4–20 mA, HART-compatible, single-ended.
AAI141-S50 S1: 16-channel analog input with HART multiplexer support; for dense field device networks.
AAI143-S00 S1: 8-channel analog input; high-resolution 16-bit ADC for precision measurement loops.
AAI841-S00 S1: 16-channel analog input with built-in signal conditioning for thermocouple inputs.

Analog Output Modules (AO)

AAO141-S00 S1: 8-channel analog output module; 4–20 mA output for control valve positioners.
AAO841-S00 S1: 8-channel analog output with HART pass-through; supports smart valve diagnostics.

Digital Input Modules (DI)

ADI141-H00 S1: 32-channel digital input module; 24 VDC, for discrete field device status monitoring.
ADI543-H00 S1: 16-channel digital input; high-voltage 110/220 VAC input for motor control center interfaces.

Digital Output Modules (DO)

ADO141-H00 S1: 16-channel digital output module; 24 VDC transistor output for solenoid valve control.
ADO551-H00 S1: 8-channel relay output module; rated for 250 VAC / 2A per channel for high-load switching.

Communication / Network Modules

S2BU472-01 S1: Vnet/IP bus interface unit; provides redundant Ethernet-based control bus connectivity for FCS.
S2EW471-01 S1: Engineering workstation interface card; used for FCS configuration download and online monitoring.

Power Supply Modules (PS)

S2PS471-01 S1: FCS power supply module; 24 VDC regulated output for nest backplane and module bus.
S2PS471-10 S1: Redundant power supply module; hot-swap capable for continuous operation without shutdown.
